Graco LD Series User Manual

Parts LD Series
313431A 23
Parts LD Series
Ref Part No. Description Qty
4 ◆ WASHER, 26 mm (all HRL and HRM
models)
1
◆ WASHER, 23 mm(all HRH models)
5 KIT, spool (see page 28) 1
11 ◆ RING, backup,o-ring 2
12 ◆ PACKING, o ring 2
13 ◆ SWIVEL, elbow 1
14 106083 RING, retaining 2
15 155470 FITTING, swivel, union 90° (all HRL65
and HRM65 models)
1
155494 FITTING, swivel, 90° (all HRH55 mod-
els
161037 FITTING, swivel, union, 90° (all HRL56
models)
1
16 BASE 1
17 186580 NUT, hex, 1/2 - 14 NPSM (models 1
NUT, hex,
NUT, hex
18 ◆ ARM, guide 1
19 ◆ NUT, lock, M8 x 1.25” 4
20 ◆ BUSHING, pawl 1
21 ◆ PAWL, ratchet 1
22 ◆ SPRING, ratchet pawl 1
23 ◆ BOLT, M10 x 1.50” x 25 1
24 109170 HOSE, coupled, 50 ft (all HRH55 mod-
els)
1
253850 HOSE, coupled, 50 ft (all HRL56 mod-
els)
1
253853 HOSE, 50 ft (all HRL65 models) 1
253858 HOSE, 65 ft (all HRM65 models) 1
25 218591 KIT, roller, includes 25a, b, c, d (page
30)
1
25a BRACKET, roller 4
25b PIN, roller 4
25c ROLLER, hose 4
25d SCREW, M6x 1.0” x 20 w/patch 4
29 KIT, stop, hose (see page 30) 1
34
▲
15W036 LABEL, warning 1
▲ Replacement Danger and Warning labels, tags and cards
are available at no cost.
◆ Provided for reference only. Replacement part is not avail-
able.
A complete list of all available kits begins on page 28.

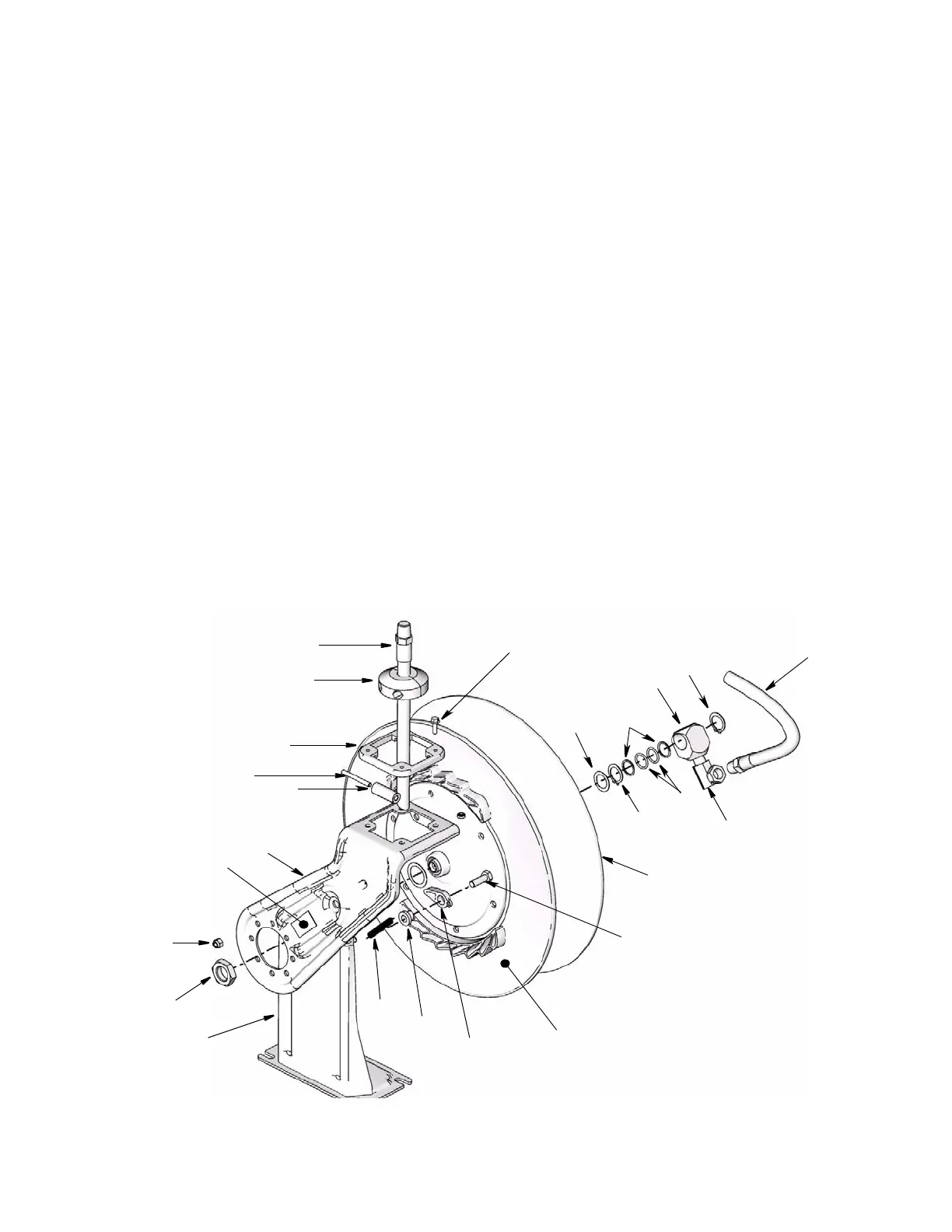

Ref Part No. Description Qty
24
14
15
13
14
5
25d
24
29
25a
25c
25b
22
18
ti13195
12
11
4
19
16
36
23
21
20
34
17
