Maintenance
22 313431A
b. Separate two hose stop components (cc) to
remove from end of hose.
6. Disconnect hose (B) from swivel (C) (F
IG. 18) and
completely remove the hose from reel.
7. Install hose stop (D) to end of hose. If hose has a
warning tag, hose stop should be installed on the
same end as the warning tag (F).
8. Insert screws (aa) through hose stop (cc) and hand
tighten nuts (bb) to hold hose stop in place.
9. Run the end of hose (B), through the hose guide (G)
and then the hole (E) in reel (F
IG. 18).
10. Attach the new hose (B) to the hose reel swivel (C)
(F
IG. 18) and carefully remove the C-Clamp (FIG.
16).
11. Pull the hose hard (B) enough to release the latch
and slowly allow the hose to retract.
12. If used, reassemble hose reel enclosure following
procedure described on page 18.
13. Flush system.
To avoid contaminating the fluid with line-scale,
chips or other installation debris, before
installing
meter or dispense valve to end of hose, flush the
equipment with a compatible solvent such as Stod-
dard solvent or mineral spirits.
a. Secure the end of the hose in a waste bucket.
b. Blow out entire lubricant supply line with air.
c. Pump solvent through line until fluid runs clear
and is debris free.
d. Pump lubricant through line until all solvent is
flushed out.
14. Position hose stop (D) so hose extends far enough
for all operators to reach dispensing valve. Securely
tighten nuts (bb) to keep hose stop in place.
15. Install meter or dispense valve to end of hose follow-
ing instructions provided with the dispense equip-
ment.
16. Adjust spring tension, page 16.

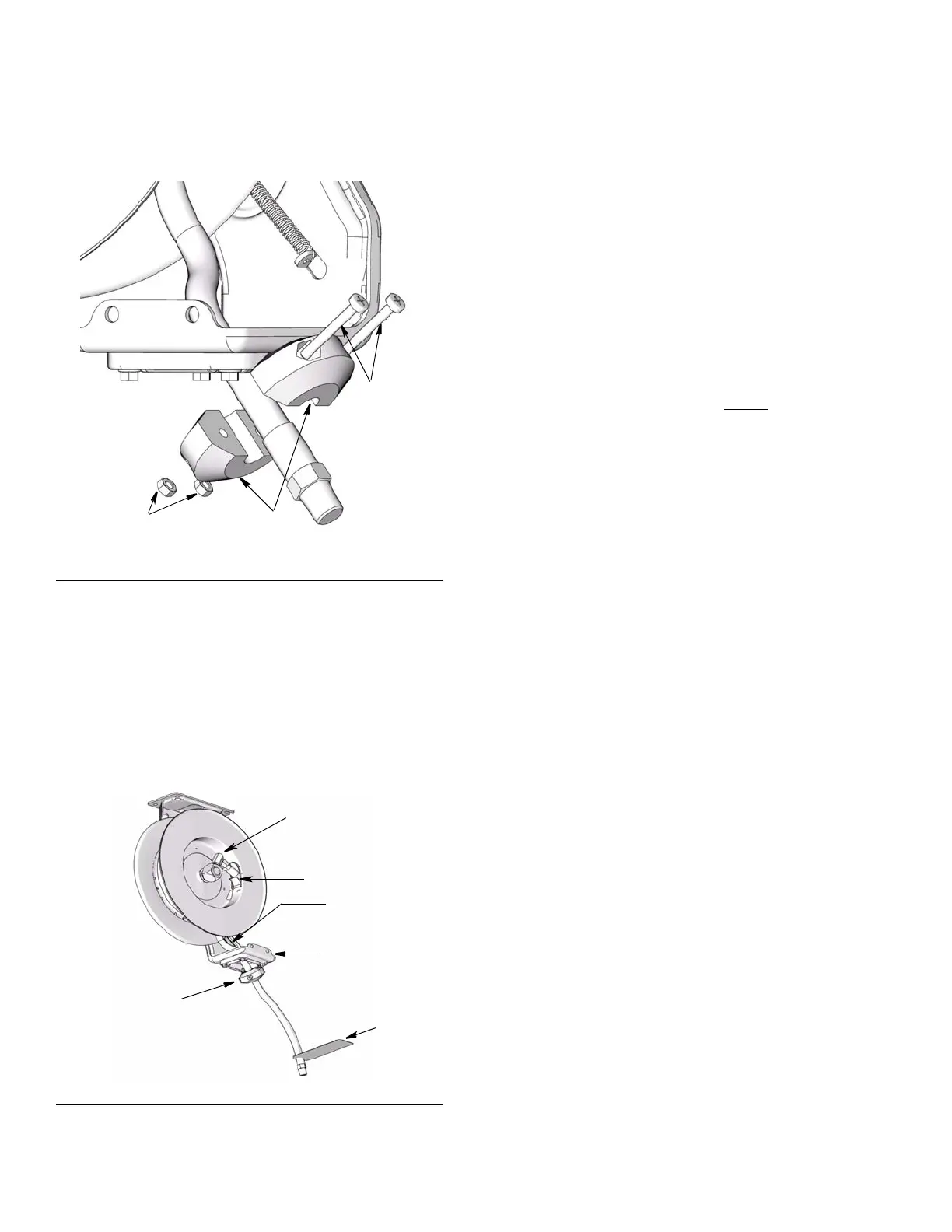

F
IG. 17
F
IG. 18
cc
aa
bb
C
B
D
E
ti13190
G
F
