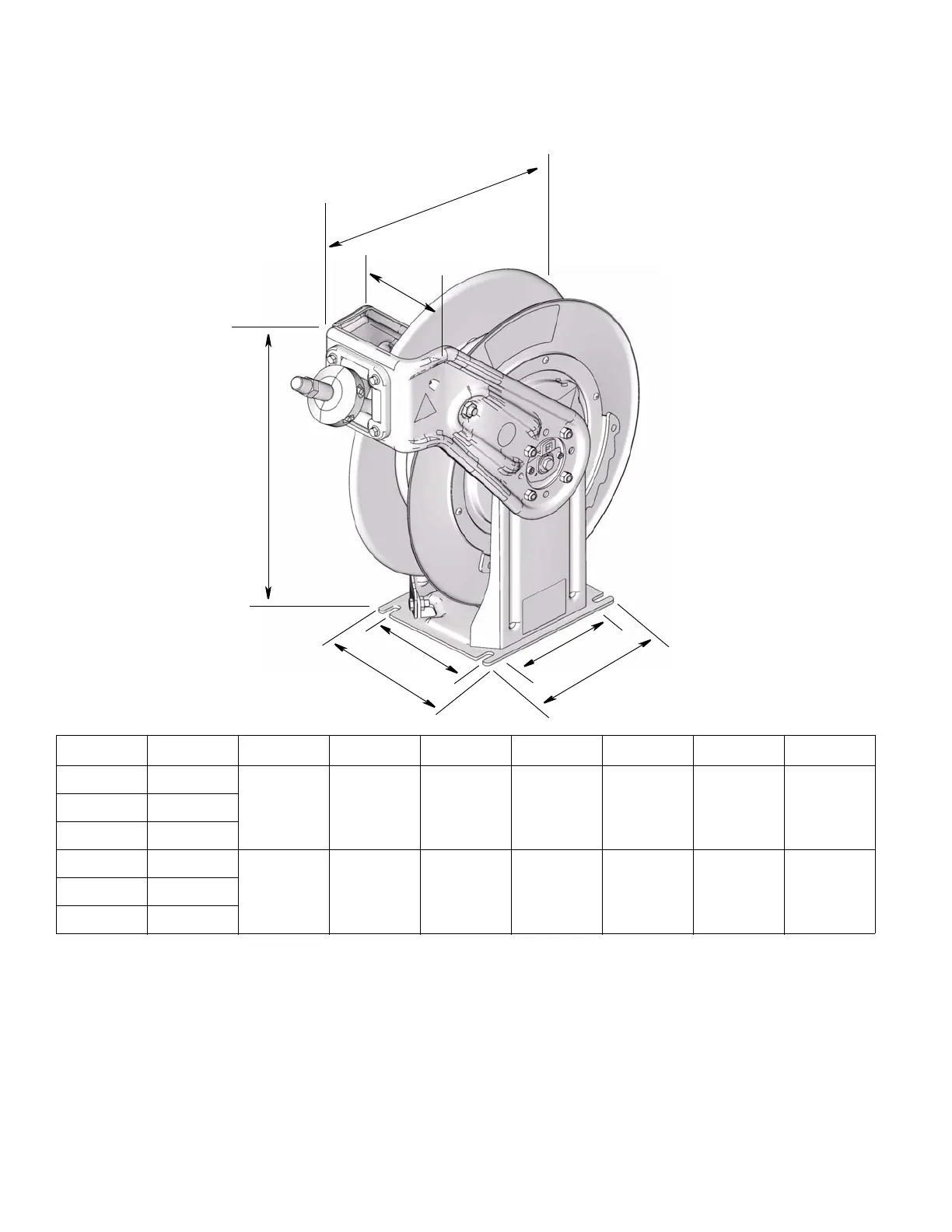

Technical Data
34 313431A
HS Models
† Measurement taken from base to top of bolts.
Measurement taken from edge of spool to front of arm.
A
C
B
D
E
G
F
Pressure Size ABCDEFG
Low 10
6.5 inches
(165 mm)
7.5 inches
(191 mm)
7.7 inches
(196 mm)
9 inches
(229 mm)
18.5 inches
(473 mm)
7.5 inches
(196 mm)
18 inches
(460 mm)
Medium 10
High 10
Low 20
6.5 inches
(165 mm)
7.5 inches
(191 mm)
7.7 inches
(196 mm)
9 inches
(229 mm)
21 inches
(533 mm)
7.5 inches
(196 mm)
20 inches
(508 mm)Medium 20
High 20
