Graco LD Series User Manual

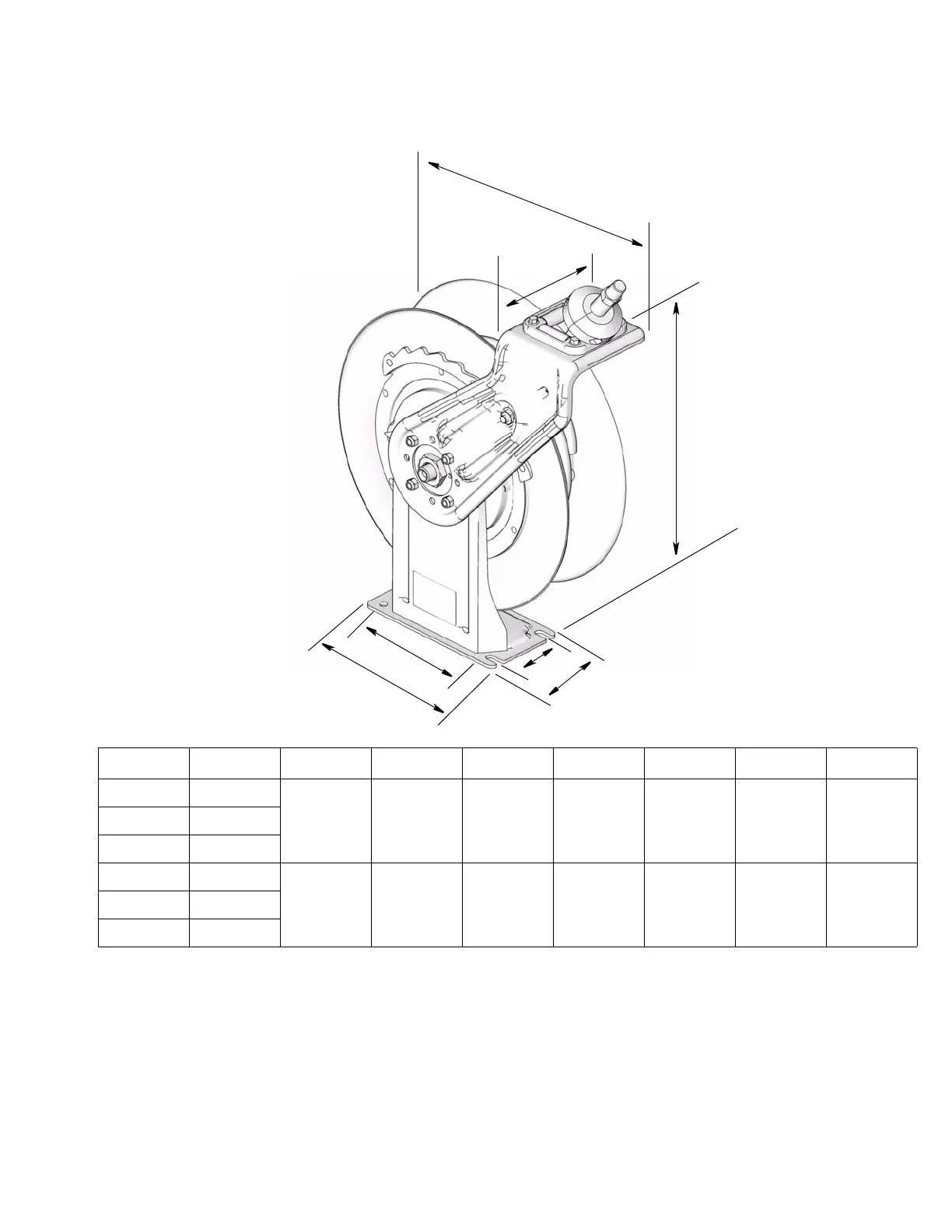

Technical Data
313431A 33
HP Models
† Measurement taken from base to top of bolts.
◆ Measurement taken from edge of spool to front of arm.
G
F
E
B
D
A
C
Pressure Size ABCDE†FG◆
Low 10
3.5 inches
(89 mm)
7.8 inches
(197 mm)
4.7 inches
(120 mm)
9 inches
(229 mm)
19.5 inches
(498 mm)
7.0 inches
(177 mm)
17.1 inches
(435 mm)
Medium 10
High 10
Low 20
3.5 inches
(89 mm)
7.8 inches
(197 mm)
4.7 inches
(120 mm)
9 inches
(229 mm)
22 inches
(554 mm)
7.0 inches
(177 mm)
19.2 inches
(487 mm)Medium 20
High 20
