Wiring Diagrams
3A4203B 53

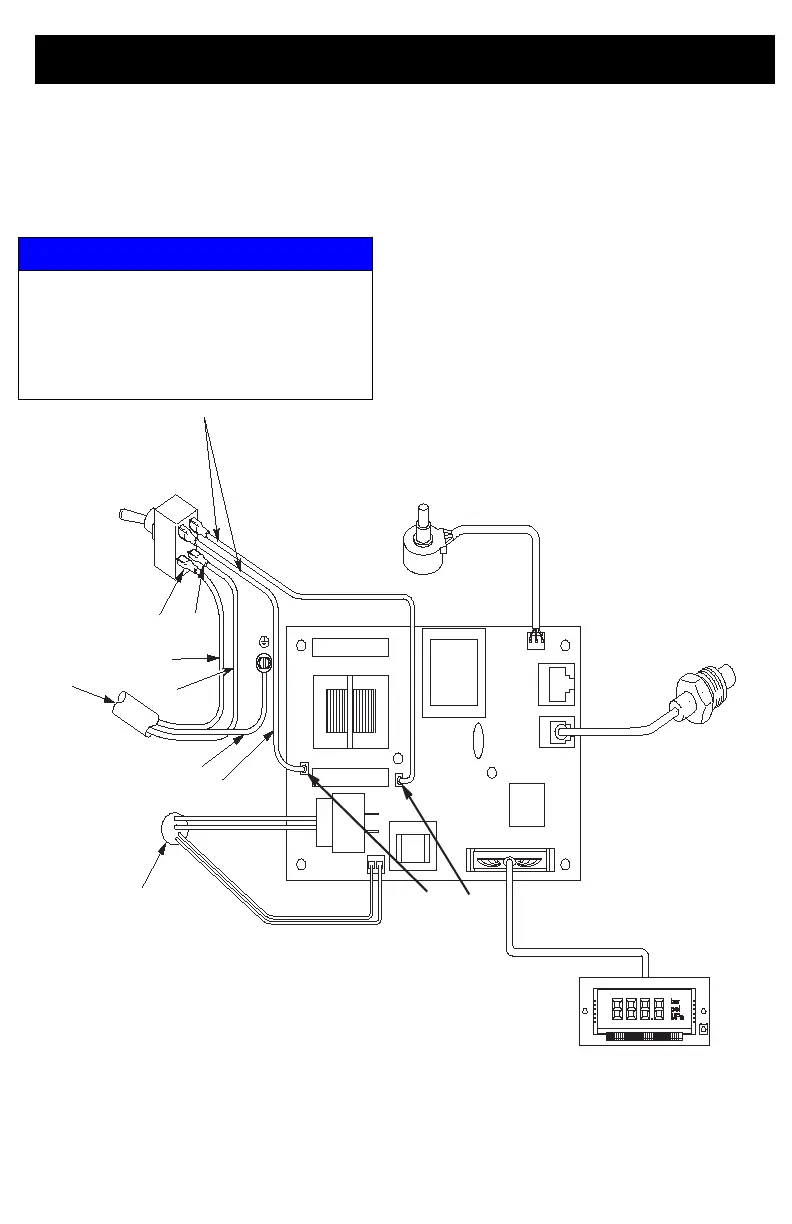

Wiring Diagrams
110/230V
NOTICE
Heat from inductor coil of filter board may
destroy wire insulation that comes in
contact with it. Exposed wires could cause
shorts and component damage. Bundle
and tie loose wires so none lay in contact
with inductor coil on the filter board.
ti2478x
L1L2
Digital Display
Potentiometer
Filter Board
Inductor Coil
Brown
Brown
Black
Black
ON/OFF
Switch
From Motor
Green
2 x White
Black /
white (-)
Blue
Blue
Red (+)
To Next Page
