Setup
12 3A4416A
Setup
When unpacking sprayer for the first time or
after long term storage perform setup
procedure.

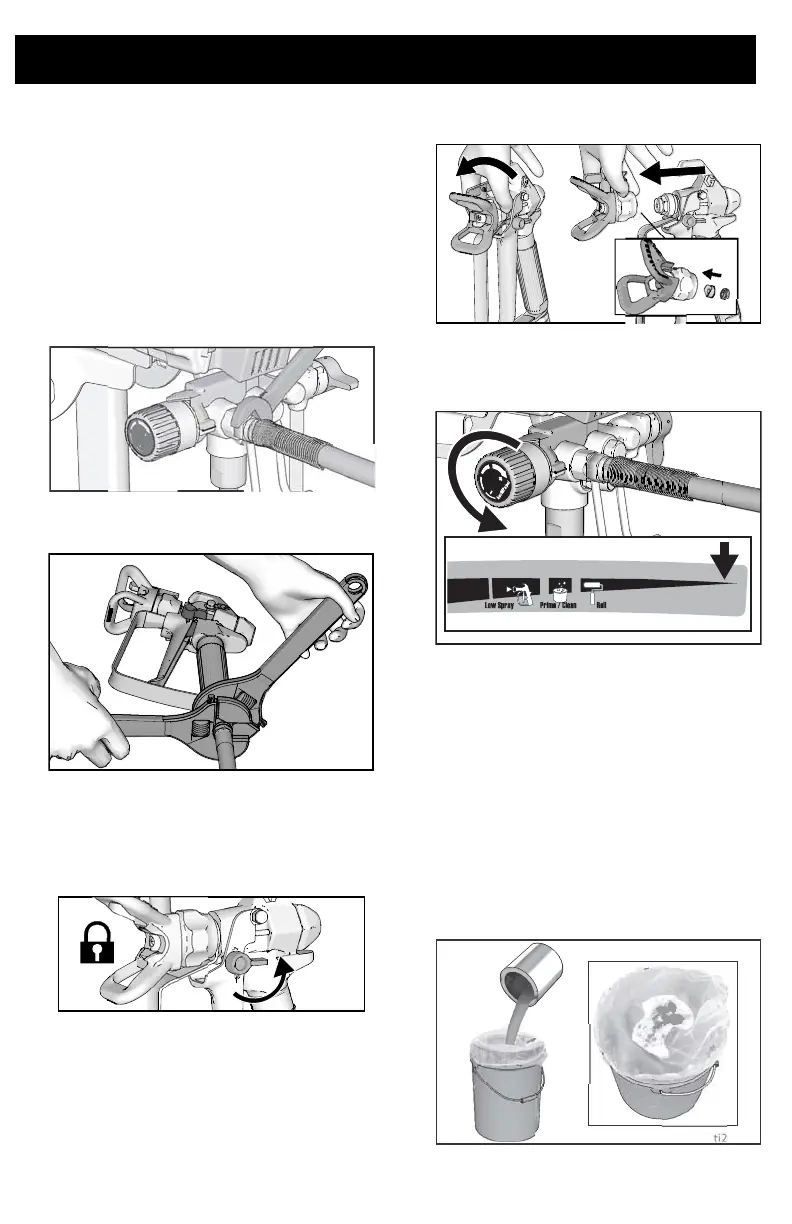

Assemble Your Sprayer
1. Connect Graco airless hose to outlet
valve fitting. Use wrench to tighten
securely.
2. Connect other end of hose to gun.
3. Use two wrenches to tighten securely. If
hose is already connected, make sure
connections are tight.
4. Engage trigger lock.
5. Remove tip guard. Be careful tip seal
may fall out when tip guard is removed.
6. Turn pressure control knob all the way
left (counter-clockwise) to lowest set-
ting.
7. After long term storage check inlet
strainer for clogs and debris.
Strain the Paint
Previously opened paint may contain dried
paint or other debris. To avoid priming
problems and spray tip clogs it is
recommended to strain the paint before
using. Paint strainers are available where
paint is sold. Stretch a paint strainer over a
clean pail and pour the paint through the
strainer to capture any dried paint and debris
before spraying.
