Know Your Sprayer
8 3A4416A

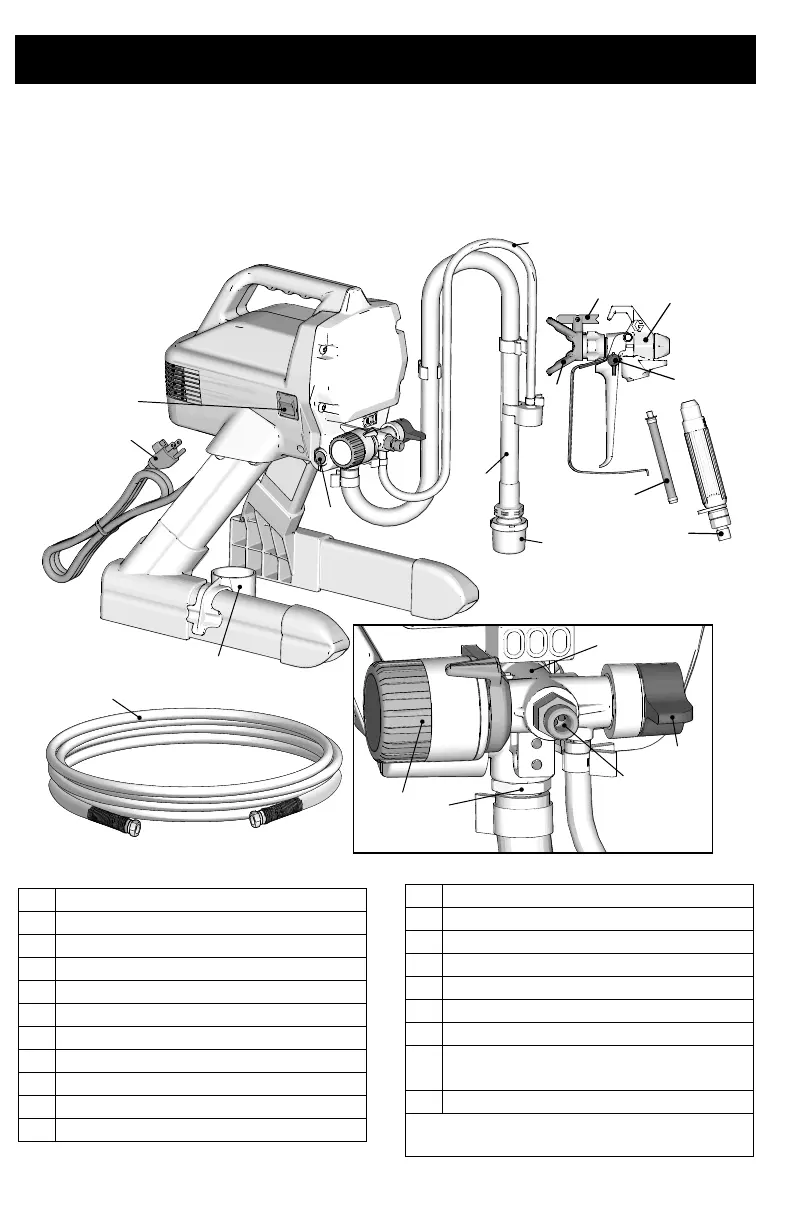

Know Your Sprayer
X5 Stand Models
K
J
G
H
M
L
D
A
U
Q
ti30912a
E
T
F
W
B
N
P
C
O
A PushPrime™ Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
LGun Fitting
M Gun Filter (inside handle)
NPump
P Outlet Valve (airless hose connection)
OInlet Valve
Q Airless Hose
T Inlet Strainer
U Power Cord
Model/Serial Tag (Not shown, located
on bottom of unit.)
W Suction Tube Drip Cup
See Quick Reference, page 32 for more
information.
