Graco Merkur User Manual

Models
4 3A7004B
Models

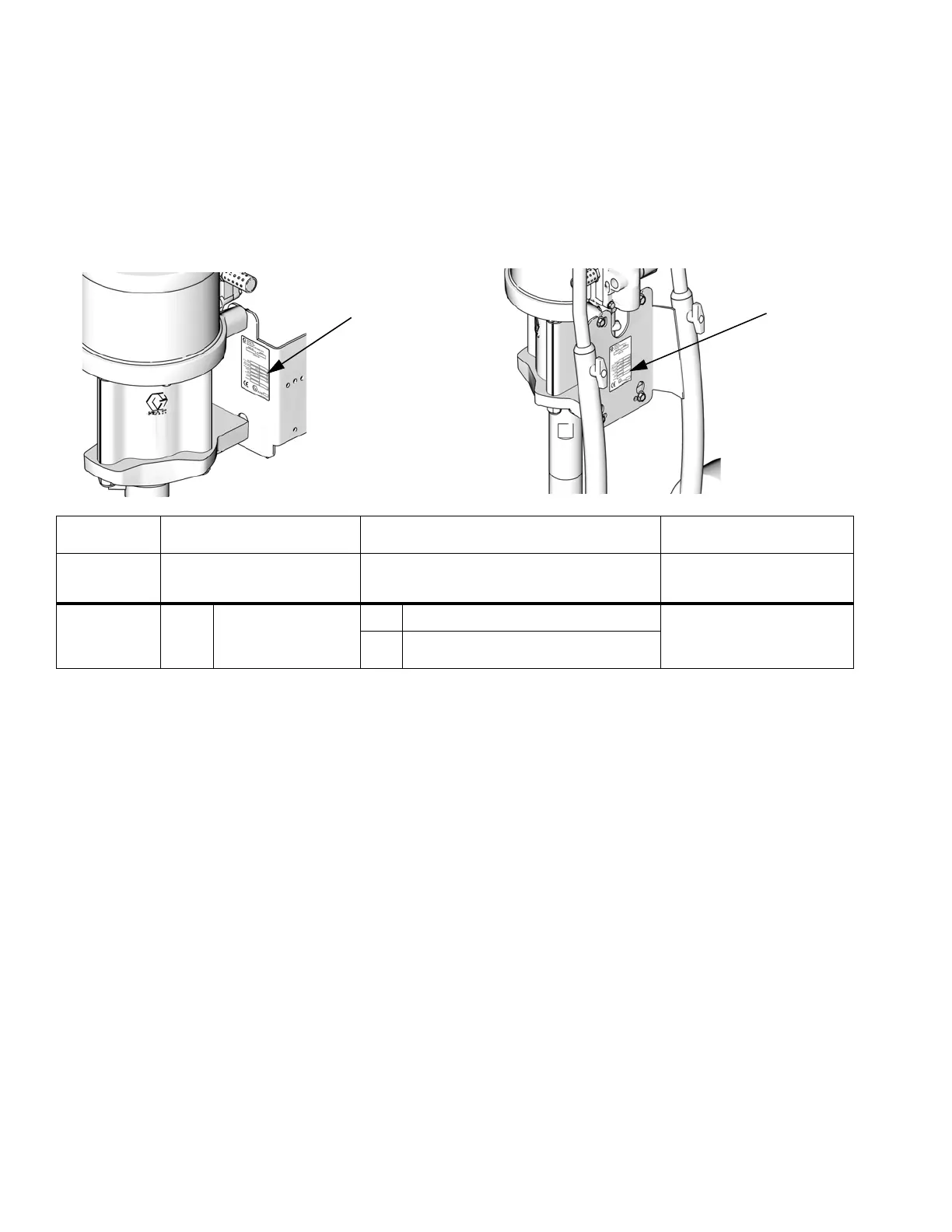

Check the identification plate (ID) for the 6-digit part number of your package. Use the following matrix and tables to
define the components of your package. For example, package number G03C10 represents a Merkur package (G),
with a 3:1 ratio pump (03), cart mounting (C), and the components shown for (10) in the table on page 5.
Wall mount
ID
Cart mount
ID
ti12326a
ti12327a
G03 C 10
First Digit
Second and Third Digits
(Ratio)
Fourth Digit
(Package Type)
Fifth and Sixth Digit
(Components Included)
G
(Merkur
Package)
03
3:1
C
Cart Mount See Table, page 24
W
Wall Mount

Graco Merkur Specifications

General

Fluid Delivery	Up to 4.0 gpm (15.1 lpm)
Air Inlet Size	1/4 in npsm
Fluid Inlet Size	1/2 in npsm
Fluid Outlet Size	1/4 in npsm
Maximum Air Input Pressure	100 psi (0.7 mpa)
Maximum Fluid Pressure	up to 3300 psi (22.7 mpa)
Pump Type	Air-Operated Piston Pump
Flow Rate	up to 4.0 gpm (15.1 lpm)
Power	Air operated
Inlet/Outlet Size	Fluid Inlet: 1/2 in npsm, Fluid Outlet: 1/4 in npsm
