Graco Pro210ES - Operation; Spray Tip Installation and Adjustment

Operation
334659G 17
Operation

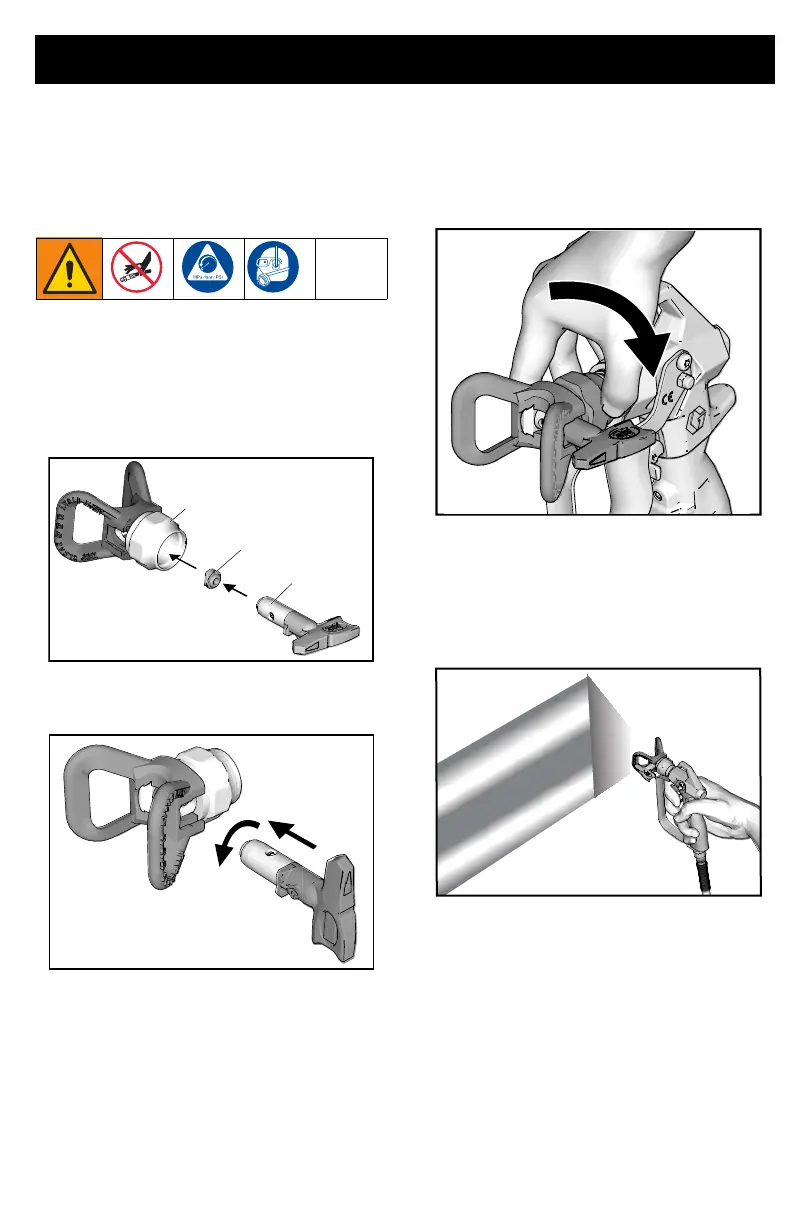

Spray Tip Installation
1. Perform Pressure Relief
Procedure, page 10.
2. Use spray tip (A) to insert
OneSeal
™
(B) into tip guard (C).
2. Insert Spray Tip.
3. Screw assembly onto gun. Tighten.
Spray
1. Spray test pattern. Adjust pressure to
eliminate heavy edges.
2. Use smaller tip size if pressure
adjustment cannot eliminate heavy
edges.
