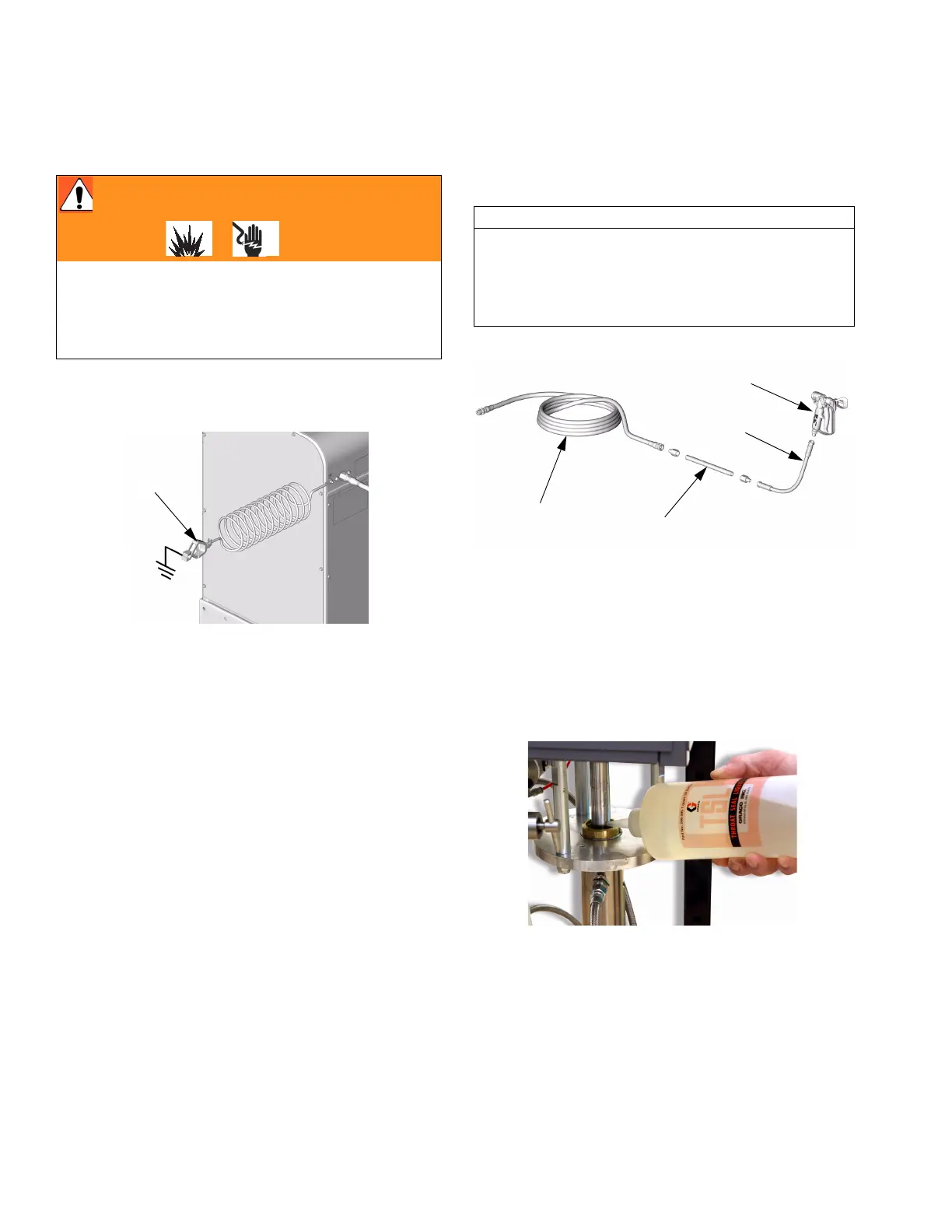

Setup
12 310665E
Setup
4. Tighten all fittings on unit.
WARNING
Do not install equipment approved only for non-haz-
ardous location in a hazardous area. Substitution of
components may impair intrinsic safety and cause per-
sonal injury. Read warnings, page 5. Ground equip-
ment as instructed below.
1. Connect Xtreme Mix 185 ground wire (T) to a true
earth ground.
T
TI4792a
2. The 50 ft. (15 m) fluid hose (M), static mixer (N), and
whip hose (P) come assembled. Note the order of
connection.
3. Connect the fluid hose (M) to the fluid manifold out-
let. Do not install gun spray tip yet.
5. Fill pump A and B packing nuts with throat seal liquid
(TSL).
CAUTION
Do not assemble static mixer (N) directly to fluid man-
ifold. Install static mixer after first 50 ft. (15 m) of hose
to ensure material is completely mixed. Spraying
unmixed material could necessitate rework of part
sprayed.
M
N
P
R
TI4954b
To Next Page
