Installation
310665E 9
Key for FIG. 2
A Xtreme Mix 185 Plural Component Proportioner
B User Interface (see page 7)
CMix Manifold
D Bleed-Type Main Air Shutoff Valve
E Air Supply Pressure Gauge
F Pump Air Regulator
G Pump Air Pressure Gauge
H Component A Pump
J Component A Fluid Supply
K Component B Pump
L Component B Fluid Supply
M Gun Fluid Hose
N Static Mixer
P Fluid Whip Hose
R Airless Spray Gun
S Proportioner Air Supply LIne
T Ground Wire
U Fluid Heaters (heated units only)
V Circulation Valves (heated units only)

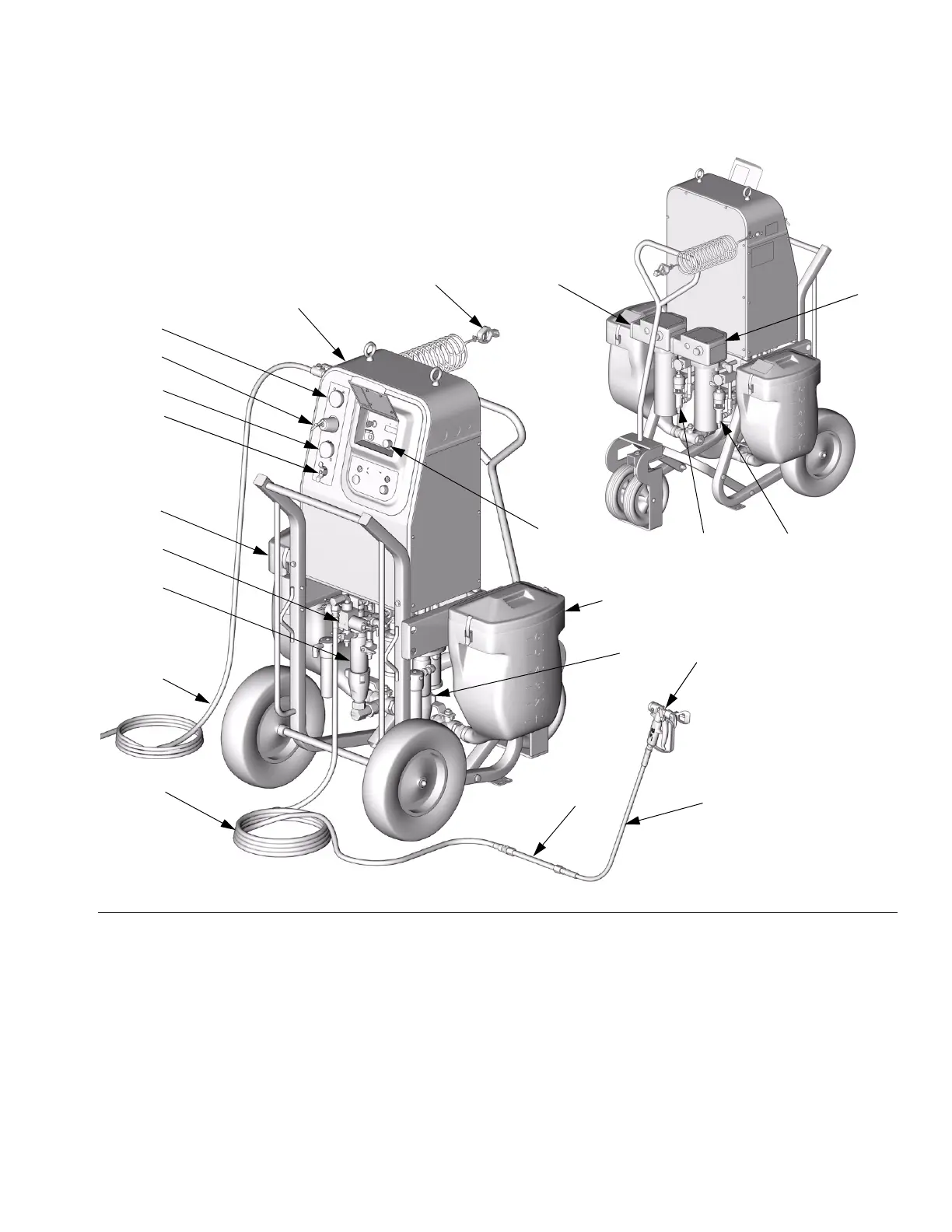

FIG. 2. Typical Installation
TI4953c
S
H
J
K
P
L
B
R
C
D
E
F
G
A
T
N
M
Detail of Heated Units
TI5112a
U
A
U
B
V
A
V
B
