Setup
3A0153E 9

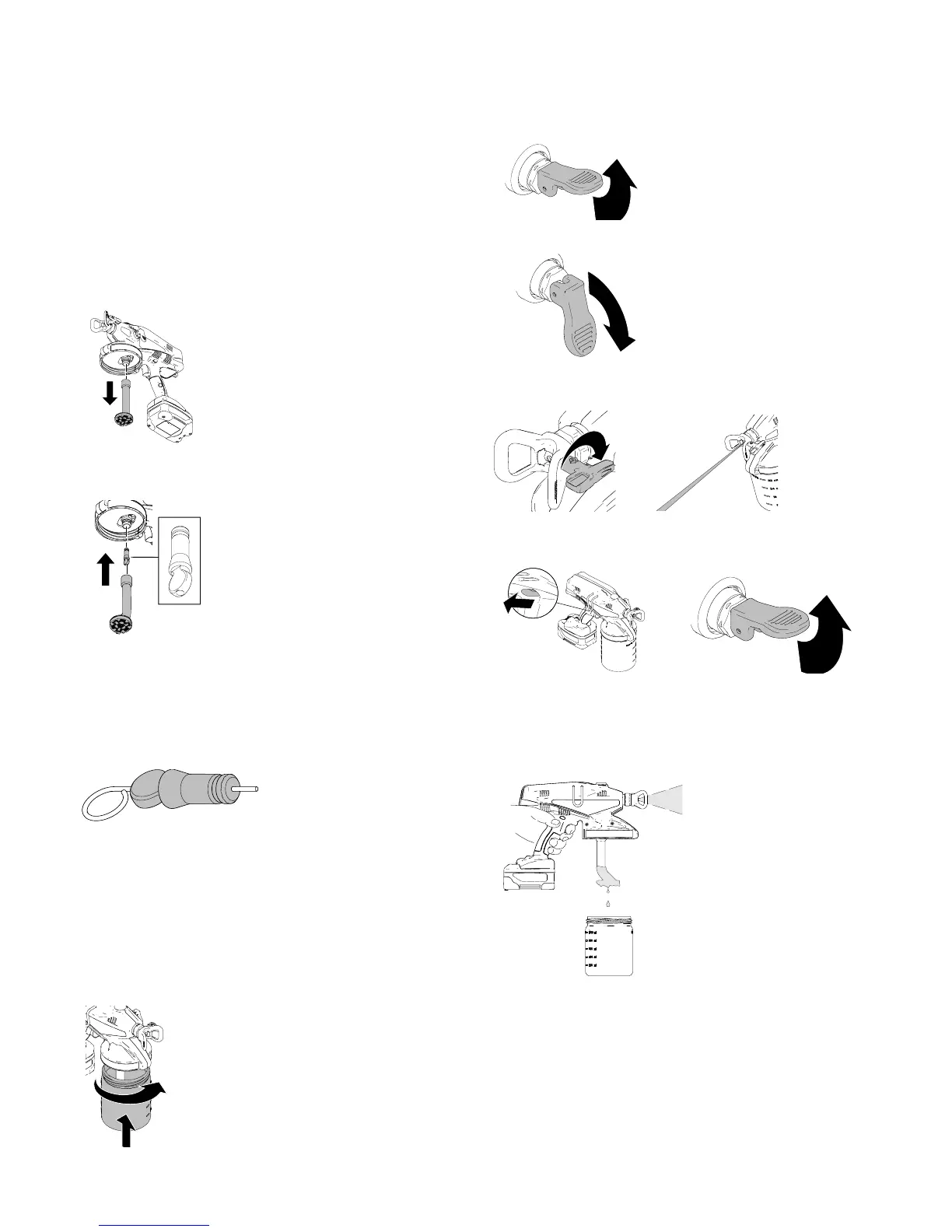

Spraying Stains or Clear Coats
(Fine-Finish Optimizer)
The Fine-Finish Optimizer should be installed and used
when spraying thin material such as stain or clear coats.
The Fine-Finish Optimizer restricts the material flow
resulting in a finer quality finish.
Installation
1. Remove material cup and suction tube.
2. Push Fine-Finish Optimizer into pump inlet until
completely engaged and re-install suction tube.
Cleanup/Storage
Be sure to remove and clean the Fine-Finish Optimizer
immediately after use. Store the Fine-Finish Optimizer
on the Storage/cleaning Tool supplied to keep the hole
clear of dried material.
Sprayer Setup
This sprayer arrives from the factory with a small
amount of test material in the system. It is important
that you flush this material from the sprayer before
using it for the first time:
1. Fill material cup with water and thread onto sprayer.
2. Put prime/relief valve to UP position, then hold trig-
ger in for 10 seconds.
3. Put prime/relief valve DOWN to spray position.
4. Reverse spray tip to UNCLOG position and trigger
sprayer into a waste area.
5. Engage trigger lock and put prime/relief valve UP to
release pressure.
6. Unscrew and remove material cup.
7. Disengage trigger lock, put prime/relief valve
DOWN, hold sprayer slightly above material cup,
and pull trigger to discharge fluid from pump.
8. Discard material in cup.
ti14992a
ti14999a
ti15425a
ti14999a
ti14994a
ti15478a
