How to Spray
16 3A3208B
How to Spray

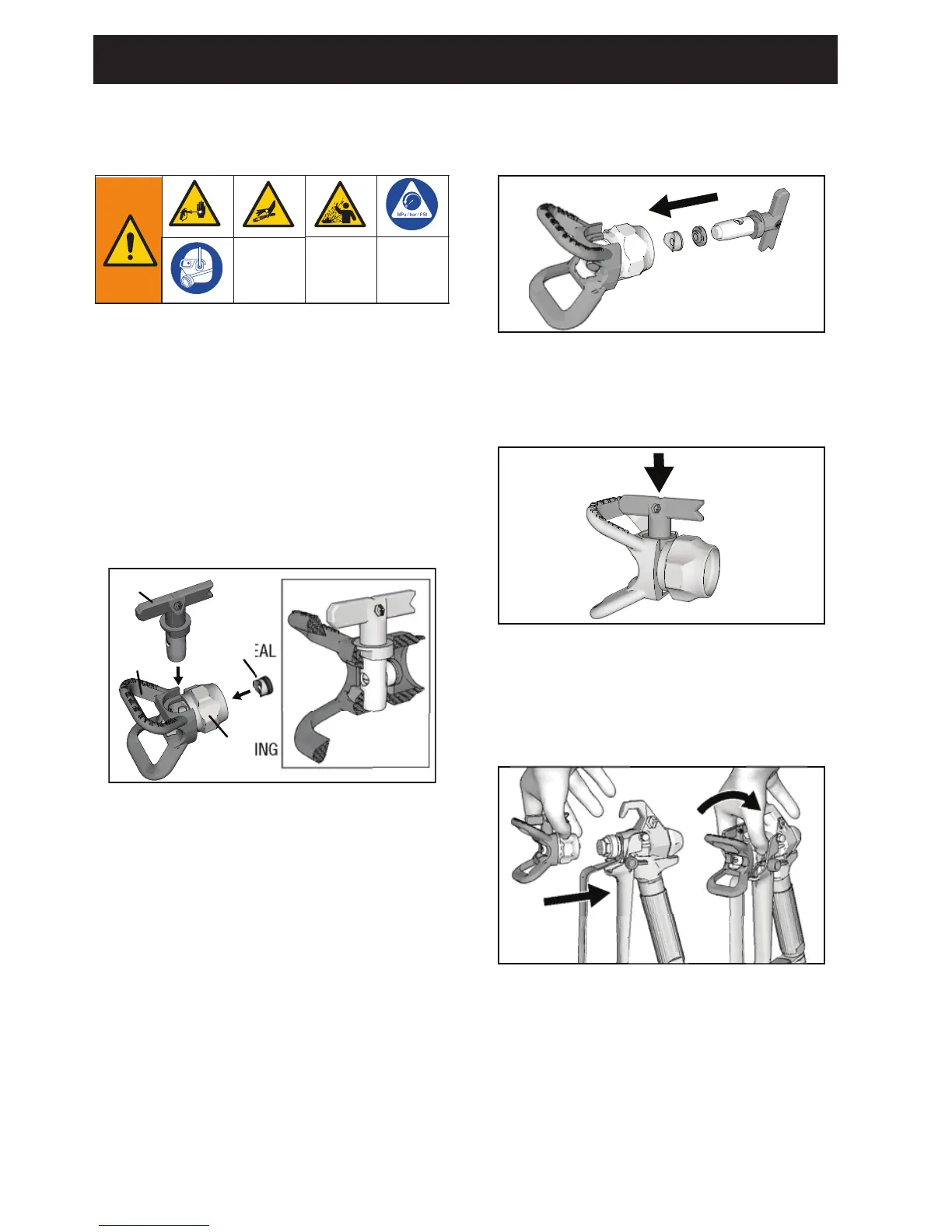

Spray Tip Installation
To prevent spray tip leaks make certain spray
tip and tip guard are installed properly.
1. Perform Pressure Relief Procedure,
page 13.
2. Engage trigger lock.
3. Verify spray tip and tip guard parts are
assembled in the order shown.
a. Use spray tip to align gasket and
seal in the tip guard.
b. Spray tip must be pushed all the
way into the tip guard. Turn spray tip
to push down.
c. Turn the arrow shaped handle on
the spray tip forward to the spray
position.
4. Screw spray tip and tip guard assembly
onto the gun and tighten.
