Graco PROX17 User Manual

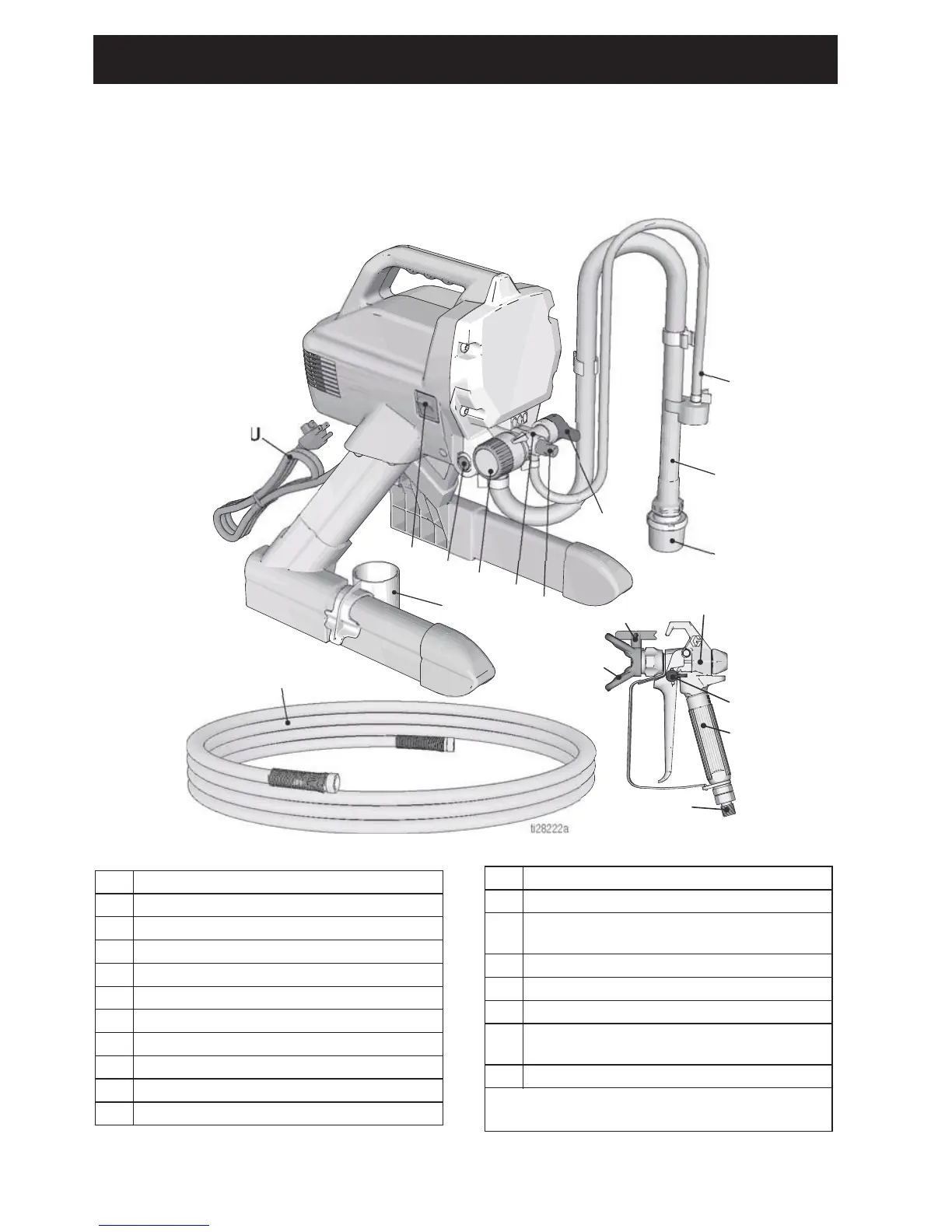

Know Your Sprayer
8 3A3208B
Know Your Sprayer
X5 Stand Models
J
H
G
K
L
M
A
B
D
U
ti28222a
E
T
Q
F
N
P
C
W
A PushPrime™ Button
B Prime/Spray Valve
C Pressure Control Knob
D ON/OFF Switch
E Suction Tube
F Drain Tube (with diffuser)
G Airless Spray Gun
H Reversible Spray Tip
J Tip Guard
K Gun Trigger Lock
L Gun Fluid Inlet Fitting
M Gun Fluid Filter (inside handle)
N Pump
P Pump Fluid Outlet Fitting (airless
hose connection)
Q Airless Hose
T Inlet Strainer
U Power Cord
Model/Serial Tag (Not shown, located
on bottom of unit.)
W Suction Tube Drip Cup
See Quick Reference, page 28 for more
information.

Graco PROX17 Specifications

General

Max Tip Size	0.017 inches
Max Pressure	3000 PSI
Hose Length	50 feet
Type	Airless
Power Source	Electric
Voltage	120 V
Spray Tip Included	Yes
Amp Draw	15 amps
Weight	32 lbs
