Maintenance
30 3A3208B

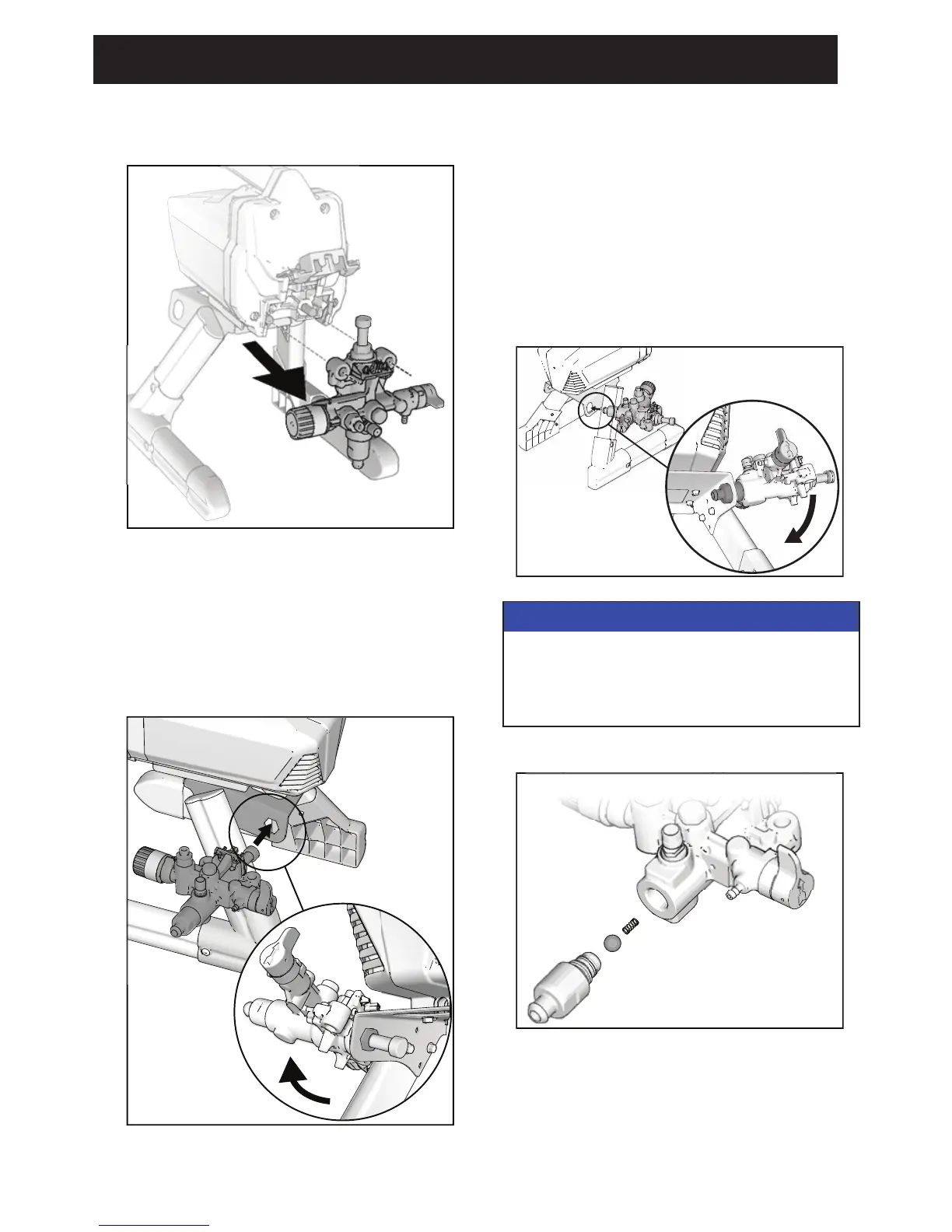

4. Slide pump assembly off the mounting
pins.
ProXChange Removal Tool
An integrated tool is included in the frame to
remove the ProXChange packing assembly.
See Pump repair manual for complete repair
instructions.
Inlet Valve Removal
An integrated tool is included in the frame to
remove the inlet valve assembly from the
pump. If you suspect that the inlet valve is
clogged or stuck, remove the valve assembly
and clean or replace.
1. Remove suction tube or hopper from
sprayer.
2. Insert pump inlet into frame and loosen
the inlet valve. Remove inlet valve.
3. Clean any debris and dried paint from
the cavity and replace the ball and
spring. Tighten inlet valve to pump
using integrated tool on the frame.
ti26930a
ti26931a
NOTICE
Do not lose the ball and spring inside the inlet
valve assembly. It may fall out when the inlet
valve is removed. Pump will not prime without
the ball and spring.
ti27479a
ti27498a
