 307-711

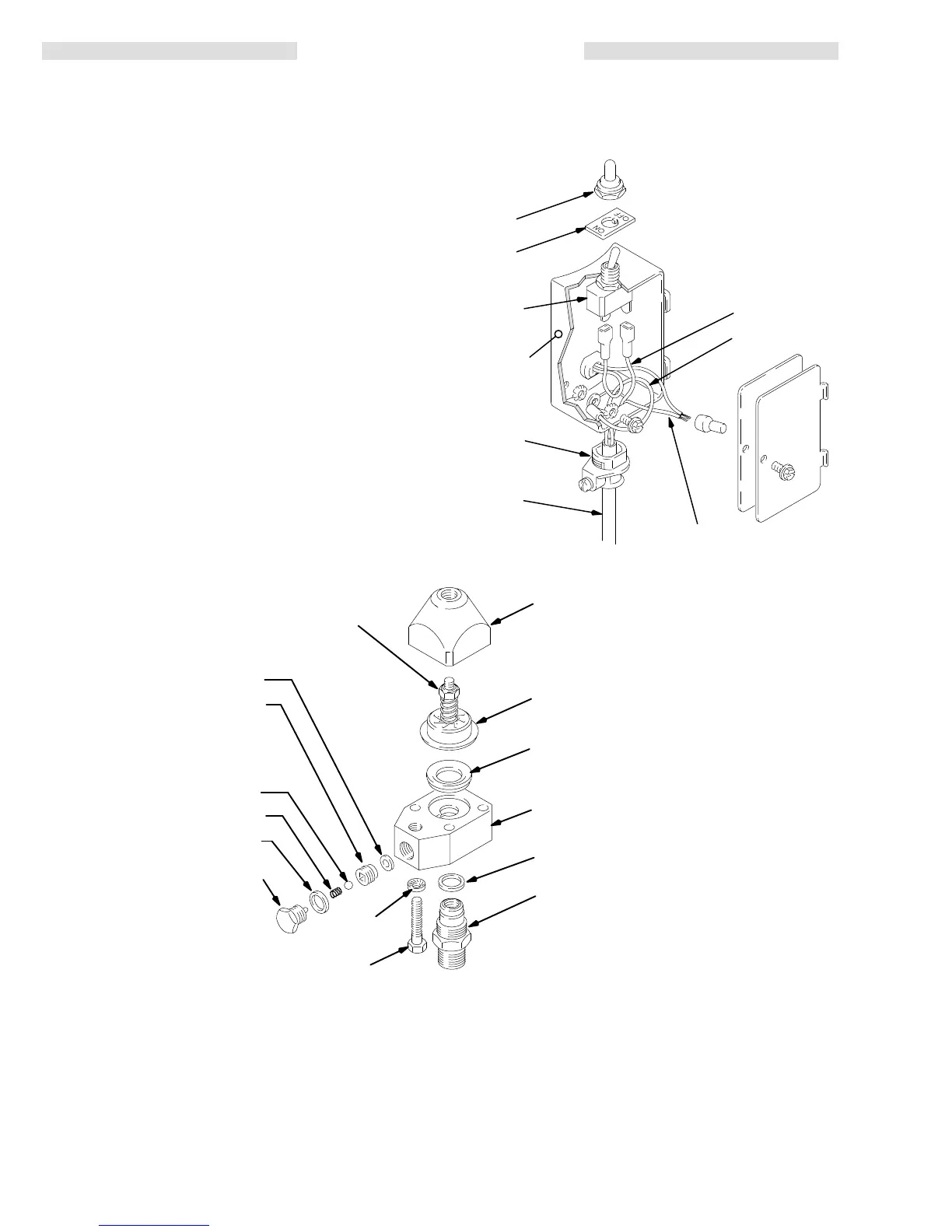

PARTS LIST & DRAWINGS
10 105–659 TOGGLE BOOT 1
11 105–679 SWITCH, toggle 1
12 105–774 PLA
TE, switch, ON/OFF 1
15 106–013
STRAIN RELIEF BUSHING 1
18a 110–900 .STAR
TER SWITCH 1
20 180–406
HOUSING, diaphragm 1
21 218–727
DIAPHRAGM ASSEMBL Y 1
22 224–624
PUMP HOUSING KIT
Includes 22a, 22b 1
22a 187–185
GUIDE, diaphragm 1
22b 187–339
HOUSING, pump 1
24 109–042 W
ASHER, spring, rib 4
25 107–514 CAPSCREW
, hex head,
M8 x 1.25 mm 4
26 218–726 VAL
VE, inlet check
Includes replaceable item 26a 1
26a 180–446 .GASKET 1
28 218–732 OUTLET CHECK V AL VE ASSY
Includes items 28a–28f 1
28a 180–455 .SEAL, washer 1
28b 218–968 .HOUSING, seat, valve 1
28c 107–521 .SPRING, compression 1
28d 218–505
.PLUG, ball stop
28e 101–701 .BALL, carbide 1
28f 180–454 .W ASHER 1
10
12
11
15
Ref 17
DET AIL B
BLACK
WHITE
GREEN
18a
Located
in
this
switch
box
0282
20
21
22a
22b
26a
26
24
25
28a
28b
28e
28c
28f
28d
LUBRICATE,
T ORQUE TO
14–17 N.m
(125–150 in–lb)
LUBRICATE,
T ORQUE TO
32 – 34 N.m
(280–300 in–lb)
LUBRICATE,
T ORQUE TO
19–23 N.m
(170–200 in–lb)
LUBRICATE,
TORQUE TO
36–41 N.m
(320–360 in–lb)
DETAIL A
DO NOT AL TER
POSITION OF NUT
0281
