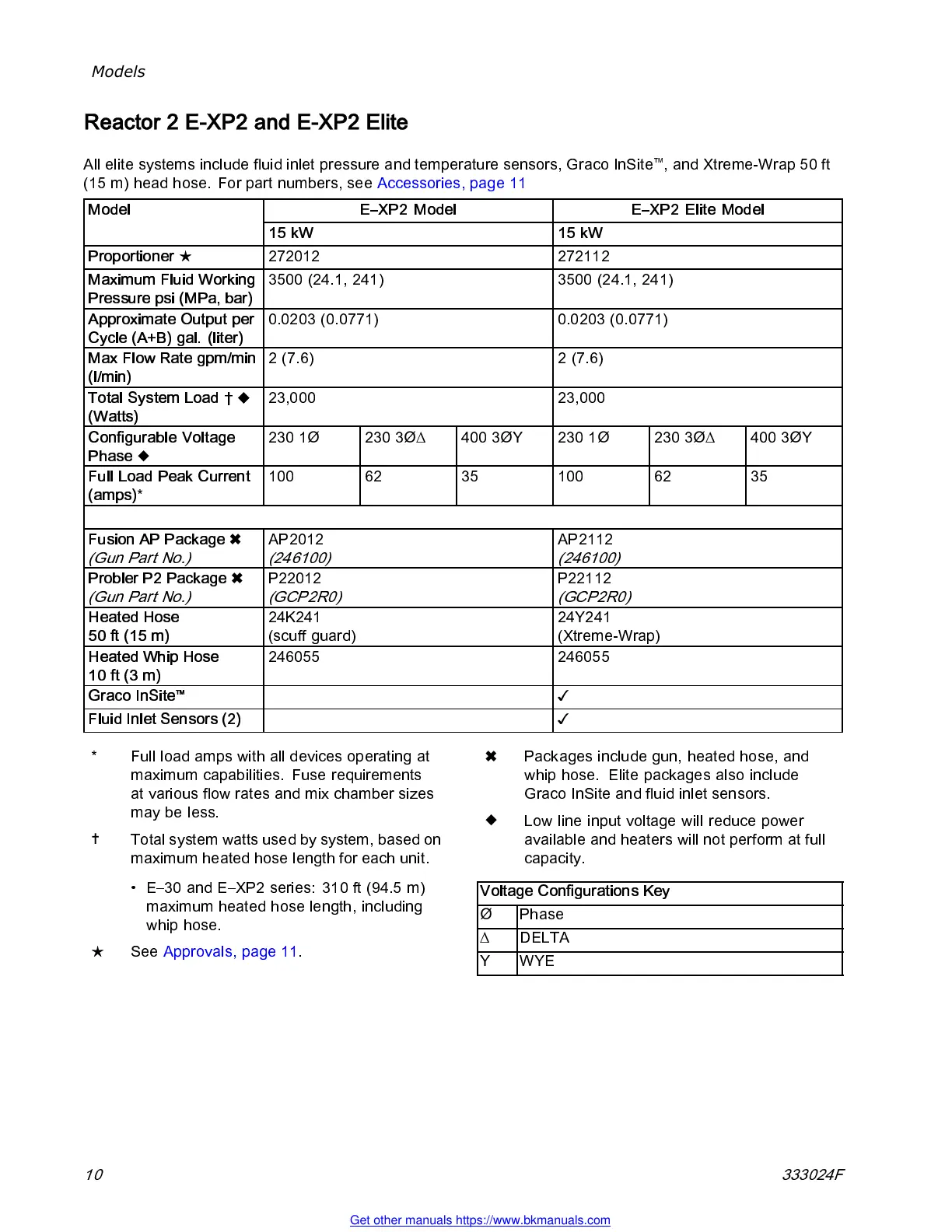

Graco Reactor 2 E-30 Repair Parts

Models
Reactor 2 E-XP2 and E-XP2 Elite
All elite systems include fluid inlet pressure and temperature sensors, Graco InSite
™
, and Xtreme-Wrap 50 ft
(15 m) head hose. For part numbers, see Accessories, page 11
E–XP2 Model E–XP2 Elite Model
Model
15 kW 15 kW
Proportioner ★ 272012 272112
Maximum Fluid Working
Pressure psi (MPa, bar)
3500 (24.1, 241) 3500 (24.1, 241)
Approximate Output per
Cycle (A+B) gal. (liter)
0.0203 (0.0771) 0.0203 (0.0771)
Max Flow Rate gpm/min
(l/min)
2(7.6) 2(7.6)
Total System Load † 
(Watts)
23,000 23,000
Configurable Voltage
Phase

230 1Ø 230 3Ø∆ 400 3ØY 230 1Ø 230 3Ø∆ 400 3ØY
Full Load Peak Current
(amps) *
100 62 35 100 62 35
Fusion AP Package 
(Gun Part No.)
AP2012
(246100)
AP2112
(246100)
Probler P2 Package 
(Gun Part No.)
P22012
(GCP2R0)
P22112
(GCP2R0)
Heated Hose
50 ft (15 m)
24K241
(scuff guard)
24Y241
(Xtreme-Wrap)
Heated Whip Hose
10 ft (3 m)
246055 246055
Graco InSite
™
✓
Fluid Inlet Sensors (2)
✓
*
Full load amps with all devices operating at
max imum capab iliti es . Fuse requireme nts
at various flow rates and mix chamber sizes
may be less.

Total system watts used by system, based on
max imum heated hose length for each unit.
• E–30 and E–XP2 series: 310 ft (94.5 m)
maximum heated hose length, including
whip hose.
★
See Approvals, page 11.

Packages include gun, h eated hose, and
whip hose. Elite packages also include
GracoInSiteandfluidinletsensors.

Low line input voltage will reduce power
available and heaters will not perform at full
capacity.
Voltage Configurations Key
Ø
Phase
∆
DELTA
YWYE
10 333024F
