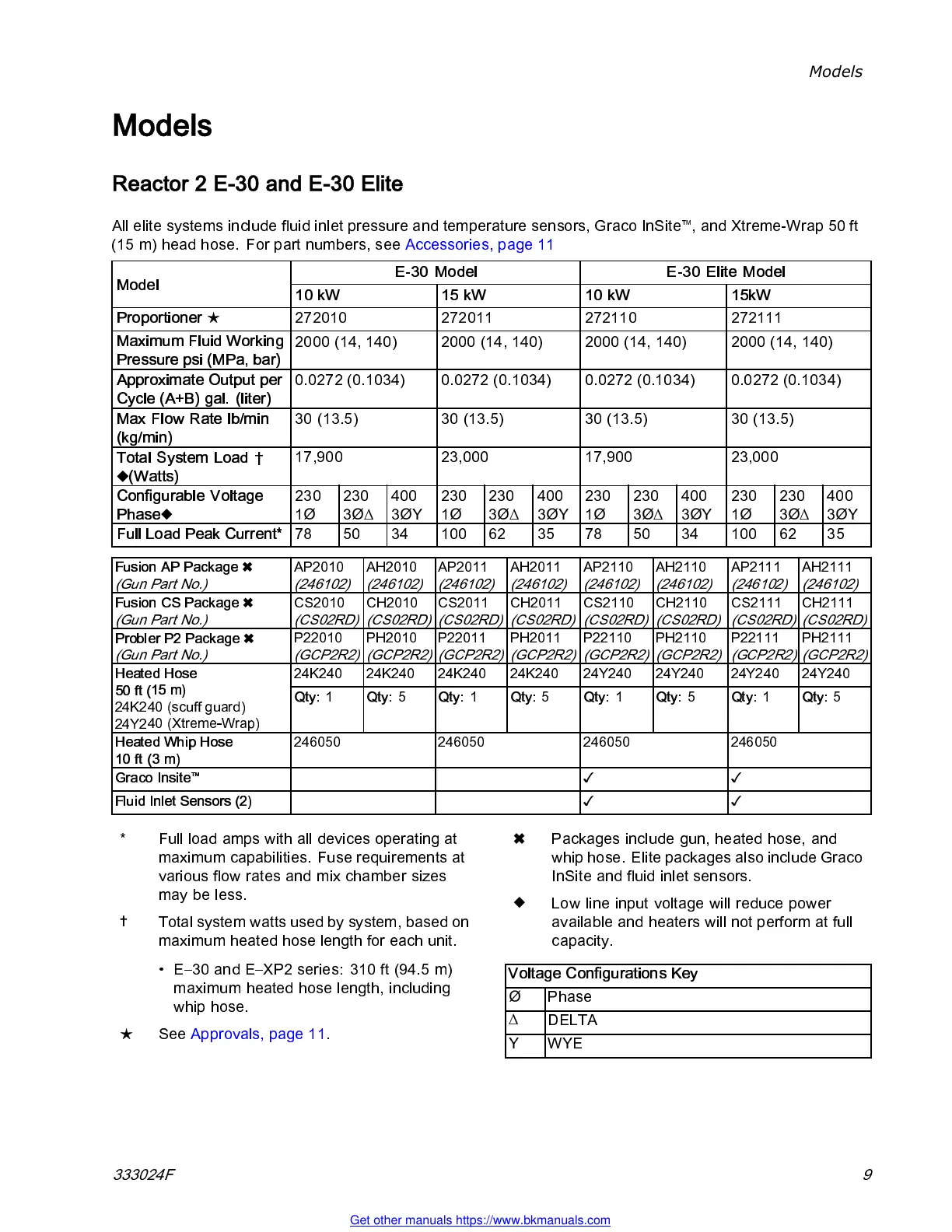

Models
Models
Reactor 2 E-30 and E-30 Elite
All elite systems include fluid inlet pressure and temperature sensors, Graco InSite
™
, and Xtreme-Wrap 50 ft
(15 m) head hose . For part numb ers, see Accessories, page 11
E-30 Model E-30 Elite Model
Model
10 kW 15 kW 10 kW 15kW
Proportioner ★ 272010 272011 272110 272111
Maximum Fluid Working
Pressure psi (MPa, bar)
2000 (14, 140) 2000 (14, 140) 2000 (14, 140) 2000 (14, 140)
Approximate Output per
Cycle (A+B) gal. (liter)
0.0272 (0.1034) 0.0272 (0.1034) 0.0272 (0.1034) 0.0272 (0.1034)
Max Flow Rate lb/min
(kg/min)
30 (13.5) 30 (13.5) 30 (13.5) 30 (13.5)
Total System Load †
 (Watts)
17,900 23,000 17,900 23,000
Configurable Voltage
Phase

230
1Ø
230
3Ø∆
400
3ØY
230
1Ø
230
3Ø∆
400
3ØY
230
1Ø
230
3Ø∆
400
3ØY
230
1Ø
230
3Ø∆
400
3ØY
Full Load Peak Current*
78 50 34 100 62 35 78 50 34 100 62 35
Fusion AP Package 
(Gun Part No.)
AP2010
(246102)
AH2010
(246102)
AP2011
(246102)
AH2011
(246102)
AP2110
(246102)
AH2110
(246102)
AP2111
(246102)
AH2111
(246102)
Fusion CS Package 
(Gun Part No.)
CS2010
(CS02RD)
CH2010
(CS02RD)
CS2011
(CS02RD)
CH2011
(CS02RD)
CS2110
(CS02RD)
CH2110
(CS02RD)
CS2111
(CS02RD)
CH2111
(CS02RD)
Probler P2 Package 
(Gun Part No.)
P22010
(GCP2R2)
PH2010
(GCP2R2)
P22011
(GCP2R2)
PH2011
(GCP2R2)
P22110
(GCP2R2)
PH2110
(GCP2R2)
P22111
(GCP2R2)
PH2111
(GCP2R2)
24K24
0
24K24
0
24K24
0
24K24
0
24Y24
0
24Y24
0
24Y24
0
24Y24
0
Heate
d Hose
50 ft (
15 m)
24K2
40 (scuff guard)
24Y2
40 (Xtreme-Wrap)
Qty: 1 Qty: 5 Qty: 1 Qty: 5 Qty: 1 Qty: 5 Qty: 1 Qty: 5
Heated Whip Hose
10 ft (3 m)
246050 246050 246050 246050
Graco Insite
™
✓✓
Fluid Inlet Sensors (2)
✓✓
*
Full load amps with all devices operating at
maximum capabilities. Fuse requirem ents at
various flow rates and mix chamber sizes
may b e le ss.

Total system watts used by system, based on
maximum heated hose length for each unit.
• E–30andE–XP2series:310ft(94.5m)
maximum heated hose length, including
whip hose.
★
See Approvals, page 11.

Packages include gun, heated hose, and
whip hose. Elite packages also include Graco
InSite and fluid inlet sensors.

Low line input voltage will reduce power
available an d heaters will not perform at full
capacity.
Voltage Configurations Key
Ø
Phase
∆
DELTA
YWYE
333024F 9
