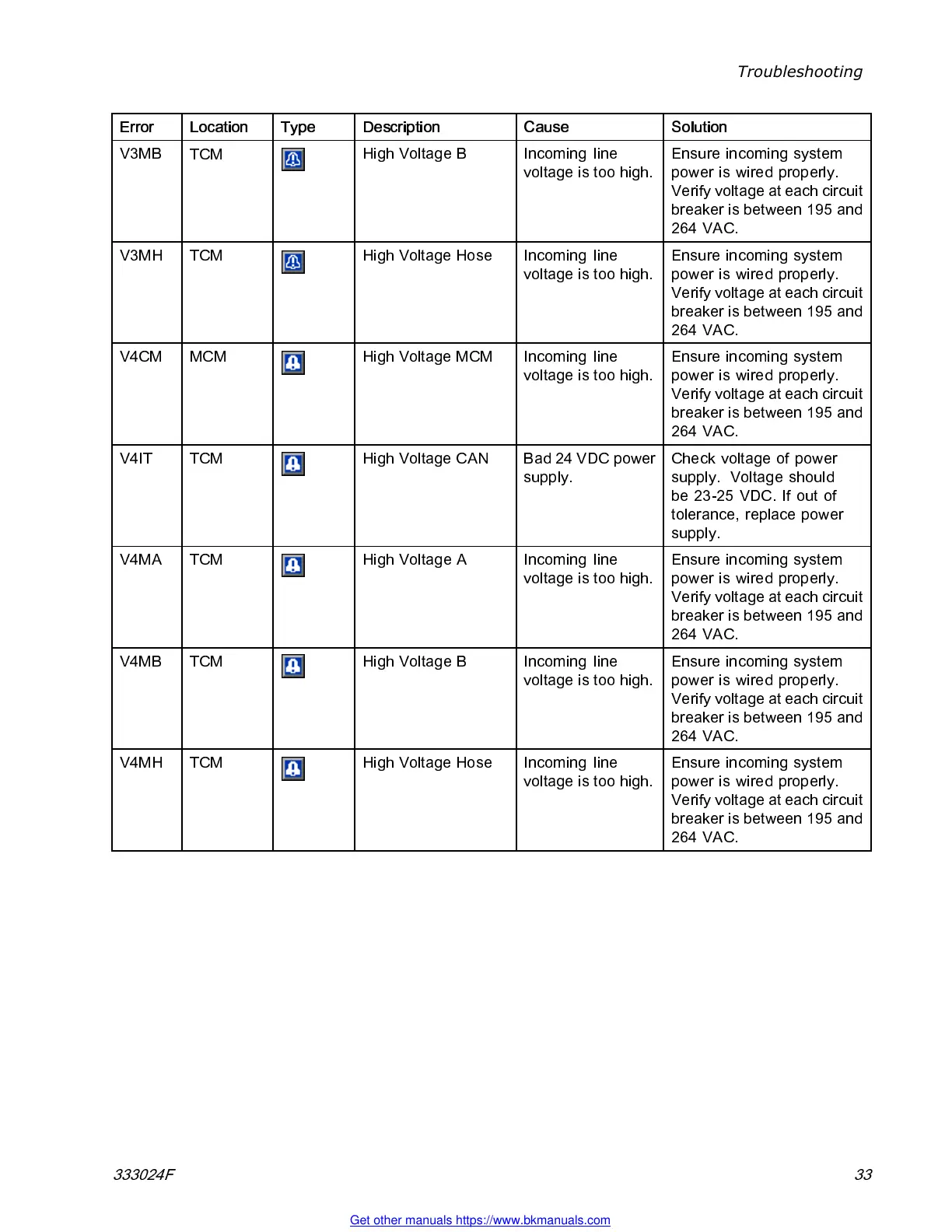

Troubleshooting
Error Location Type Description
Cause Solution
V3MB
TCM
High Voltage B Incoming line
voltage is too high.
Ensure incoming system
power is wired properly.
Verify voltage at each circuit
breaker is between 195 a nd
264 VAC.
V3MH
TCM
High Voltage Hose Inco ming line
voltage is too high.
Ensure incoming system
power is wired properly.
Verify voltage at each circuit
breaker is between 195 a nd
264 VAC.
V4CM MCM High Voltage MC M Incom ing line
voltage is too high.
Ensure incoming system
power is wired properly.
Verify voltage at each circuit
breaker is between 195 a nd
264 VAC.
V4IT
TCM
High Voltage CAN Bad 24 VDC power
supply.
Check voltage of power
supply. Voltage should
be 23-25 VDC. If out of
tolerance, replace power
supply.
V4MA
TCM
High Voltage A Incoming line
voltage is too high.
Ensure incoming system
power is wired properly.
Verify voltage at each circuit
breaker is between 195 a nd
264 VAC.
V4MB
TCM
High Voltage B Incoming line
voltage is too high.
Ensure incoming system
power is wired properly.
Verify voltage at each circuit
breaker is between 195 a nd
264 VAC.
V4MH
TCM
High Voltage Hose Inco ming line
voltage is too high.
Ensure incoming system
power is wired properly.
Verify voltage at each circuit
breaker is between 195 a nd
264 VAC.
333024F 33
