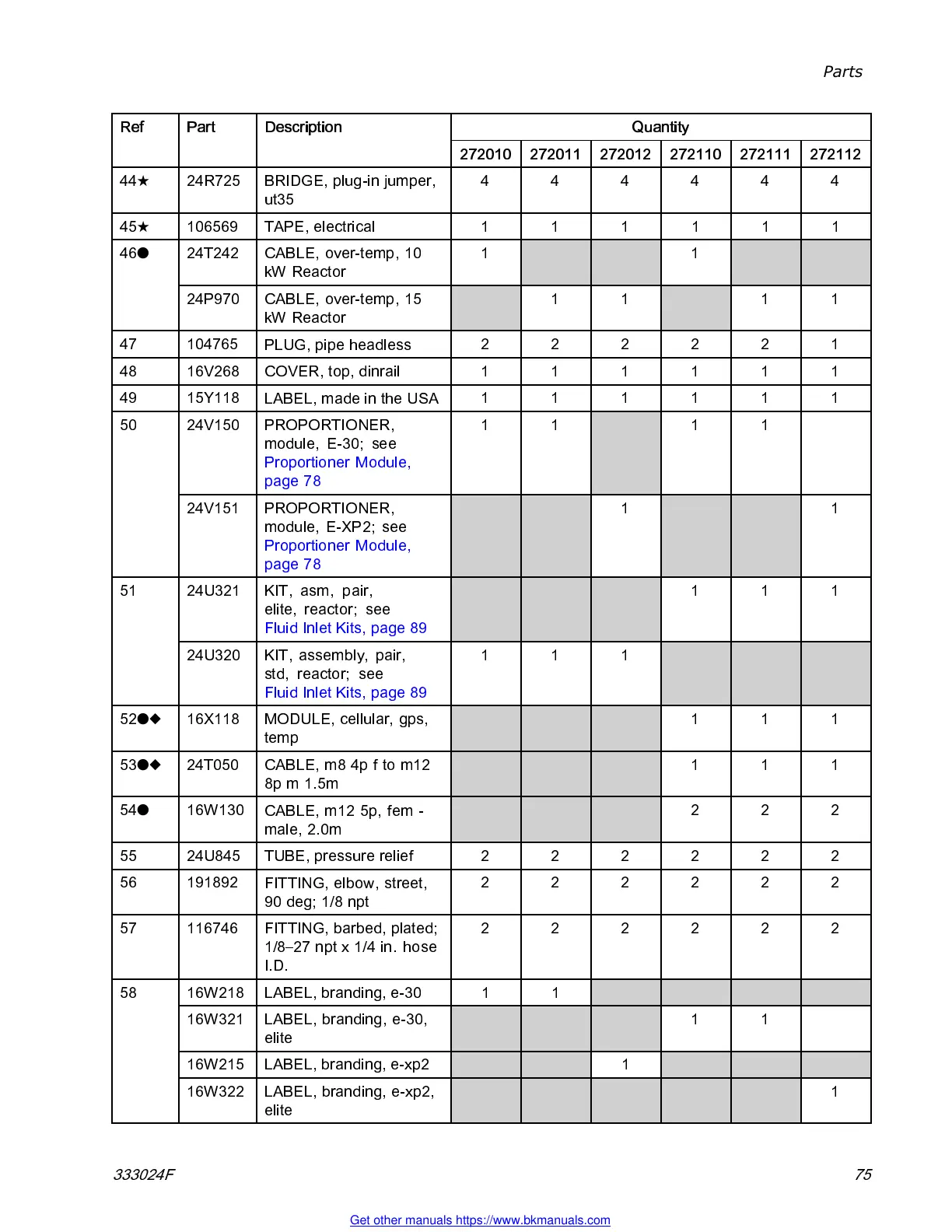

Parts
QuantityRef
Part Description
272010 272011 272012 272110 272111 272112
44 ★ 24R725
BRIDGE , plug-in jumper,
ut35
444444
45 ★ 106569TAPE,electrical 111111
24T242 CABLE, over-temp , 10
kW Reactor
1146 
24P970
CABLE, over-temp, 15
kW Reactor
11 11
47 104765
PLUG, pipe headless
222221
48 16V268
COVER, top, dinrail
111111
49 15Y118
LABEL, made in the USA
111111
24V150
PROPORTIONER,
module, E-30; see
Proportioner Module,
page 78
11 11
50
24V151 PROPORTIONER,
module, E-XP2; see
Proportioner Module,
page 78
11
24U321 KIT, asm, pair,
elite, reactor; see
Fluid Inlet Kits, page 89
111
51
24U320 KIT, assembly, pair,
std, reactor; see
Fluid Inlet Kits, page 89
111
52  16X118
MODULE, cellular, gps,
temp
111
53  24T050 CABLE, m8 4p f to m12
8p m 1.5m
111
54  16W130
CABLE, m12 5p, fem -
male, 2.0m
222
55
24U845
TUBE, pressure relief
222222
56 191892
FITTING, elbow, street,
90 deg; 1/8 npt
222222
57
116746
FITTING, barbed , plated ;
1/8–27 npt x 1/4 in. hose
I.D.
222222
16W218 LABEL, branding, e-30 1 1
16W321 LABEL, b randi ng, e-30,
elite
11
16W215 LABEL, branding, e-xp2 1
58
16W322 LABEL, branding, e-xp2,
elite
1
333024F 75
