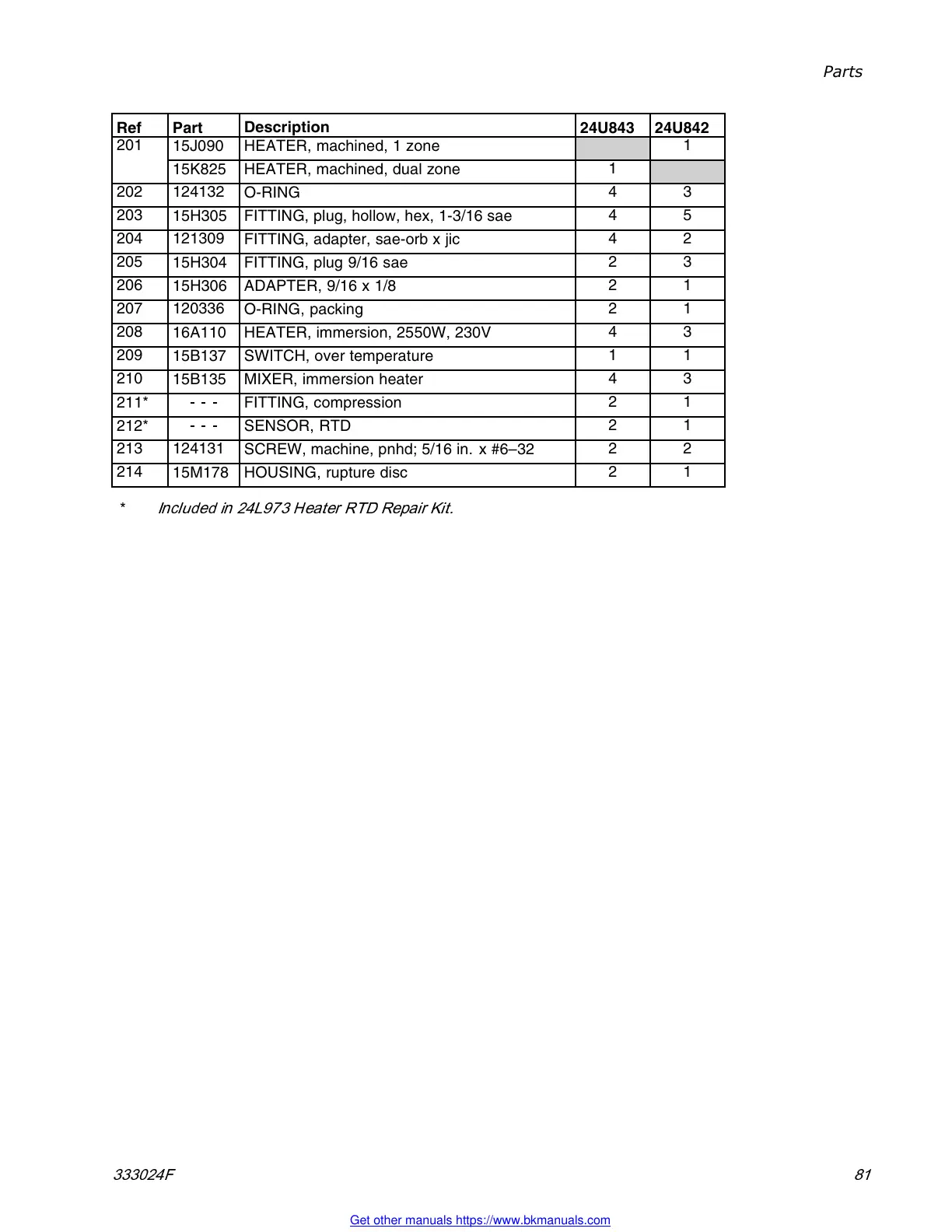

Graco Reactor 2 E-30 - Page 81

Parts
Ref Part
Description
24U843 24U842
15J090 HEATER, machined, 1 zone
1
201
15K825 HEATER, machined, dual zone
1
202 124132
O-RING
43
203
15H305
FITTING, plug, hollow, hex, 1-3/16 sae
4
5
204 121309
FITTING, adapter, sae-orb x jic
42
205
15H304
FITTING, plug 9/16 sae
23
206
15H306
ADAPTER, 9/16 x 1/8
21
207 120336
O-RING, packing
21
208
16A110 HEATER, immersion, 2550W, 230V
43
209
15B137
SWITCH, over temperature
11
210
15B135 MIXER, immersion heater
43
211*
---
FITTING, compression
21
212*
---
SENSOR, RTD
21
213 124131
SCREW, machine, pnhd; 5/16 in. x #6–32
22
214
15M178
HOUSING, rupture disc
21
*
Included in 24L973 Heater RTD Repair Kit.
