Graco Reactor 2 E-30 - Parts and Schematics; Proportioner Parts Breakdown

Parts

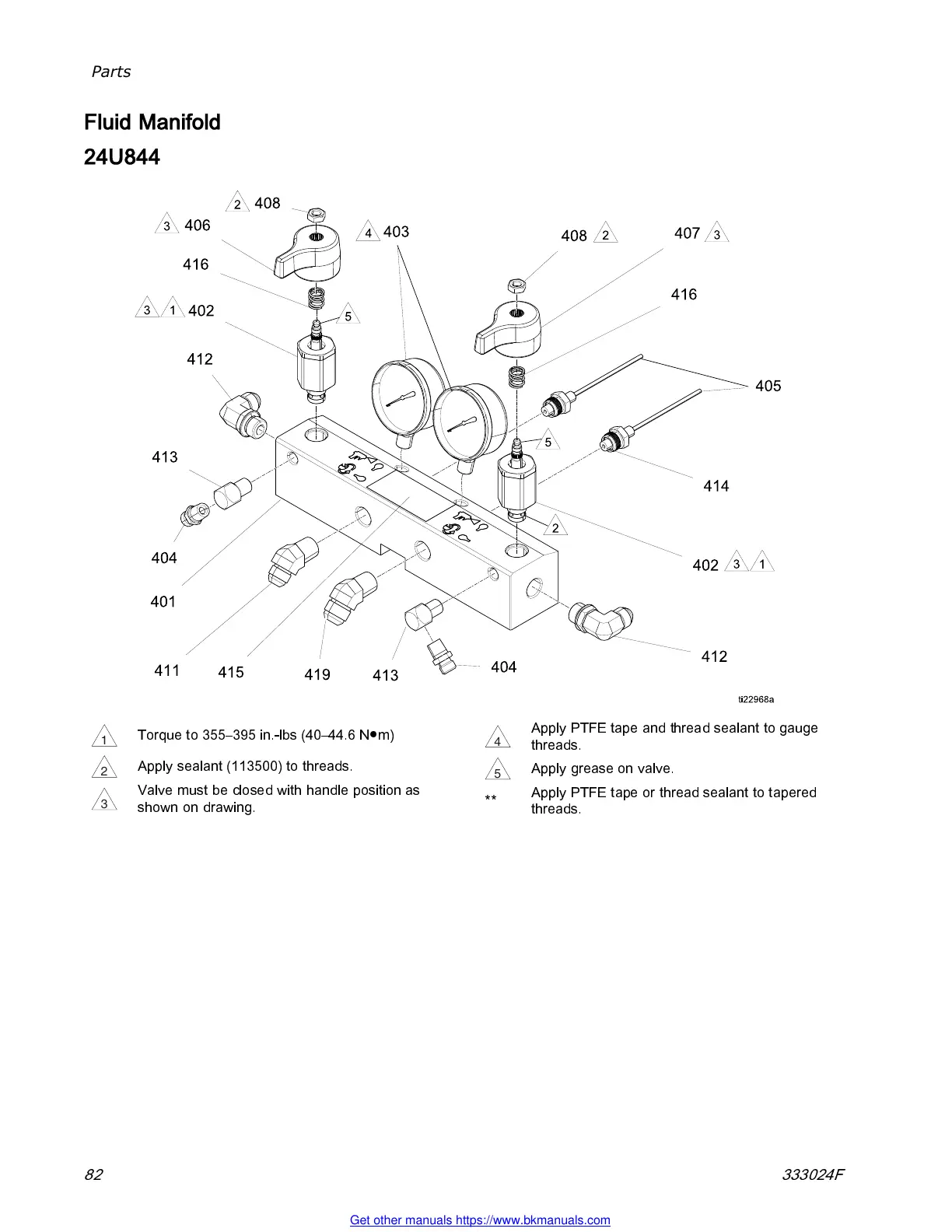

Fluid Manifold
24U844
1
Torque to 355–395 in.-lbs (40–44.6 N●m)
2
Apply sealant (113500) to threads.
3
Valve must be closed with handle position as
shown on drawing.
4
Apply PTFE tape and thread sealant to gauge
threads.
5
Apply grease on valve.
**
Apply PTFE tape or thread sealant to tapered
threads.
82 333024F
