Parts

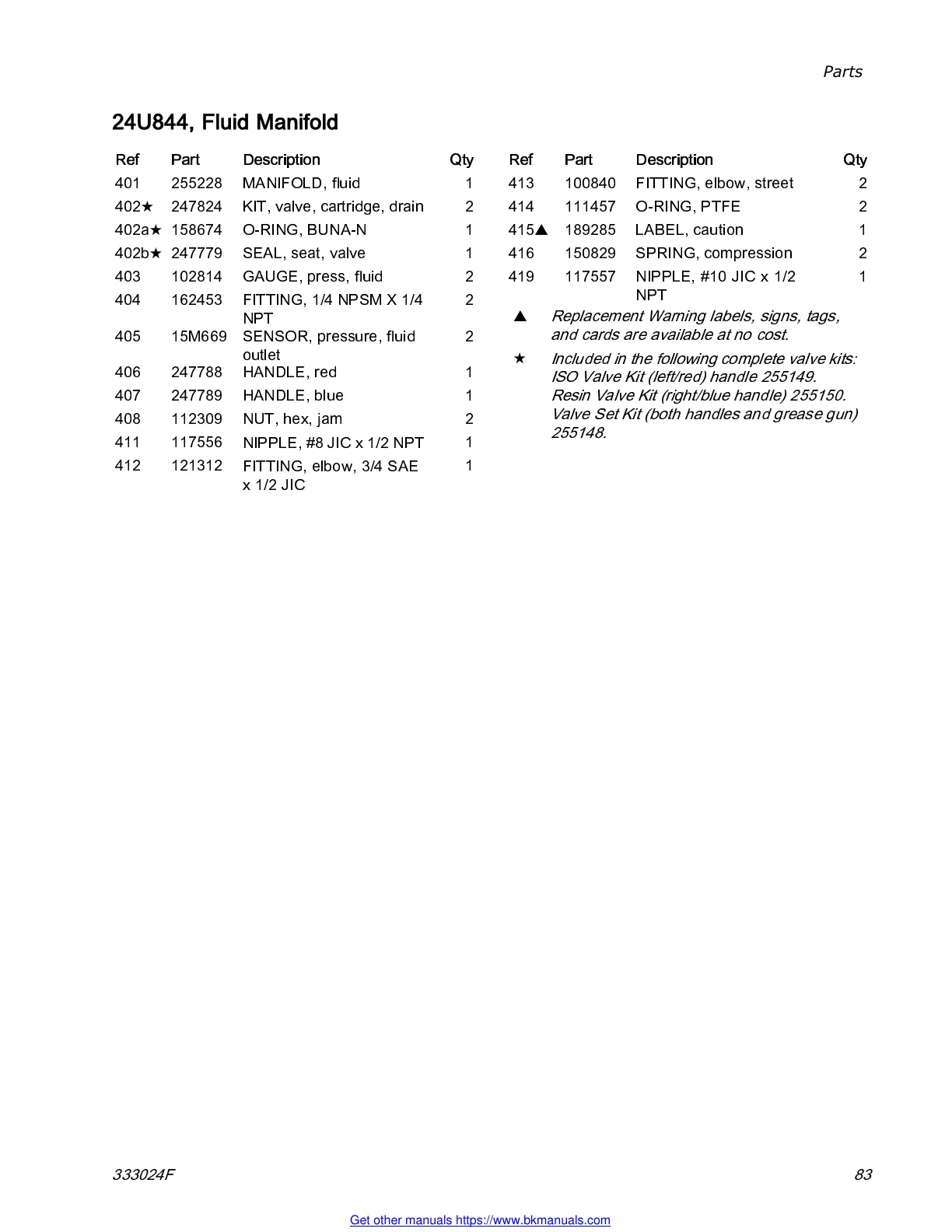

24U844, Fluid Manifold
Ref Part Description Qty
401 255228 MANIFOLD, fluid 1
402
★ 247824 KIT, valve, cartridge, drain 2
402a
★ 158674 O-RING, BUNA-N 1
402b
★ 247779 SEAL, seat, valve 1
403 102814 GAUGE, press, fluid 2
404 162453 FITTING, 1/4 NPSM X 1/4
NPT
2
405 15M669
SENSOR, pressure, fluid
outlet
2
406 247788 HANDLE, red 1
407 247789 HANDLE, blue 1
408 112309 NUT, hex, jam 2
411 117556
NIPPL E, #8 JIC x 1/2 NPT
1
412 121312
FITTING, elbow, 3/4 SAE
x1/2JIC
1
Ref Part Description Qty
413 100840 FITTING, elbow, street 2
414 111457 O-RING, PTFE 2
415
▲ 189285 LABEL, caution 1
416 150829 SPRING, compression 2
419 117557 NIPPLE, #10 JIC x 1/2
NPT
1
▲ Replacement Warning labels, signs, tags,
and cards are available at no cost.
★
Included in the following complete valve kits:
ISO Valve Kit (left/red) handle 25 5149.
Resin Valve Kit (right/blue handle) 255150.
Valve S et K it (both handle s a nd g reas e g un)
255148.
333024F 83
