AdvancedDisplayModule(ADM)Operation

Troubleshooting Troubleshooting

Troubleshooting

Screens Screens

Screens

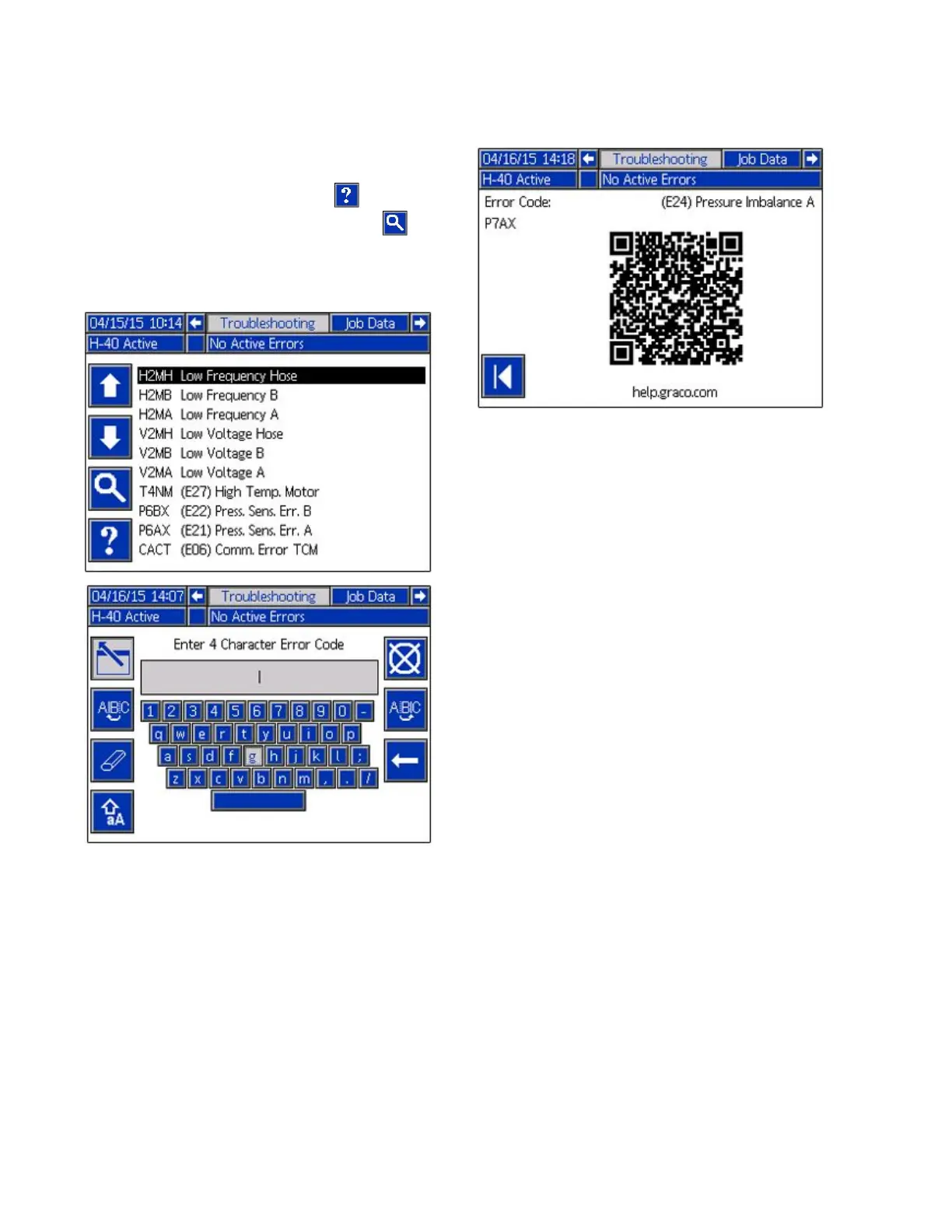

Thisscreendisplaysthelasttenerrorsthat

occurredonthesystem.Usetheupanddown

arrowstoselectanerrorandpress

toview

theQRcodefortheselectederror.Press

toaccesstheQRcodescreenforanerror

codethatisnotlistedonthisscreen.See

ErrorCodesandTroubleshooting,page68,formore

informationonerrorcodes.

QR QR

Codes Codes

Codes

Toquicklyviewonlinehelpforagivenerrorcode,

scanthedisplayedQRcodewithyoursmartphone.

Alternately,visithelp.graco.comandsearchforthe

errorcodetoviewonlinehelpforthatcode.
