Graco REACTOR 246028 - Page 61

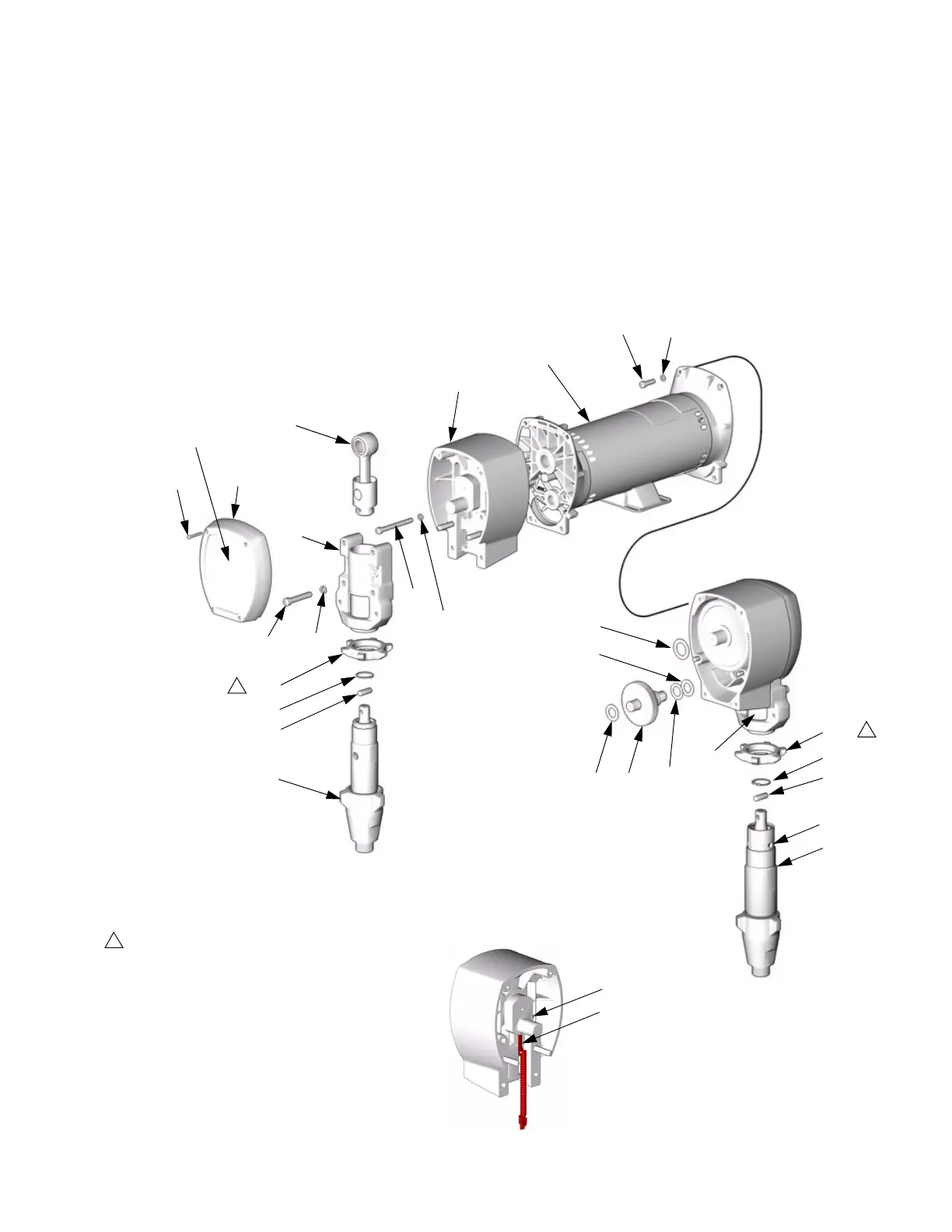

Reactor Assembly
309574L 61
Proportioner Module
245956 Module, for E-20 and E-XP1
245957 Module, for E-30
245959 Module, for E-XP2
301
302
303
304
305
306A
*307308
309
**310
311
312
313
314
315
316
317
318
319
*308
314
TI2511A
TI3250a
321
Detail of Cycle Counter Switch
1
Flat side faces up.
1
320
306B
311
310**
316
1
325
324
326
