Graco Reactor A-25 Operation

Typical Installation, without circulation
309812D 11
Typical Installation, without circulation
Key for FIG. 2
A Reactor Proportioner
B Heated Hose (see page 38)
C Fluid Temperature Sensor (FTS)
D Heated Whip Hose (see page 38)
E Fusion Spray Gun (see page 38)
F Gun Air Supply Hose
G Feed Pump Air Supply Lines
(part of Air Supply Kit, page 38)
H Waste Containers
J Fluid Supply Lines
K Feed Pumps (see page 38)
L Agitator
M Desiccant Dryer (part of Return Tube Kit, page 38)
N Bleed Lines
P Gun Fluid Manifold (part of Fusion gun)
Q Air Quick-Disconnect (part of Circulation Kit, page 38)
S Hydraulic Supply Line
T Hydraulic Return Line
V Hydraulic Power Supply, with enclosed return filter
W Air Filter/Separator
HS Hydraulic Shutoff Valve (part of Reactor, page 12)

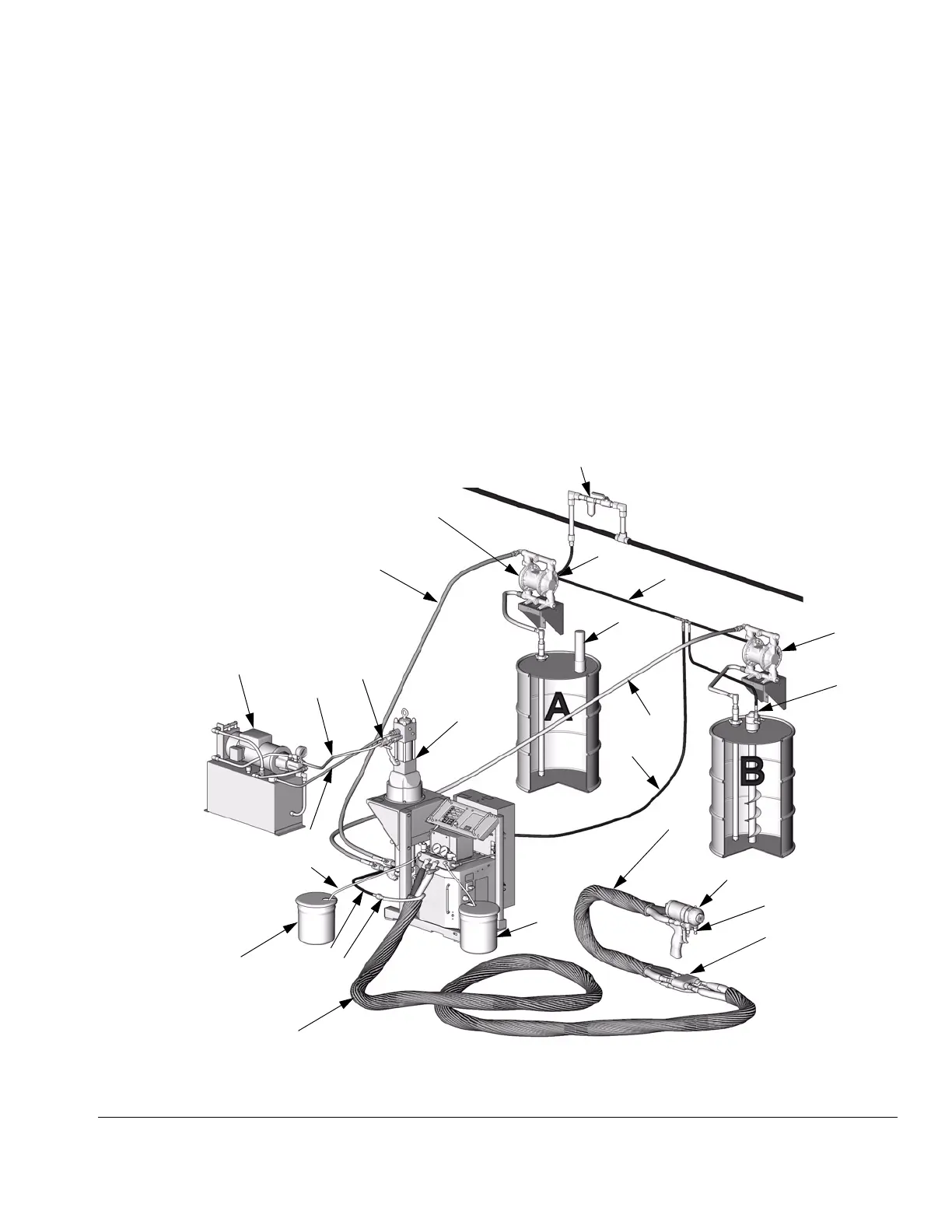

FIG. 2: Typical Installation, without circulation (246040 Hydraulic Powered Reactor Shown)
A
B
C*
D
E
F
G
H
J
K
L
M
G
J
K
TI3697a
N
P
* Shown exposed for clarity. Wrap with tape during operation.
H
W
V
T
S
Q
G
HS
