Graco Reactor A-25 Operation

Spraying
28 309812D
Spraying

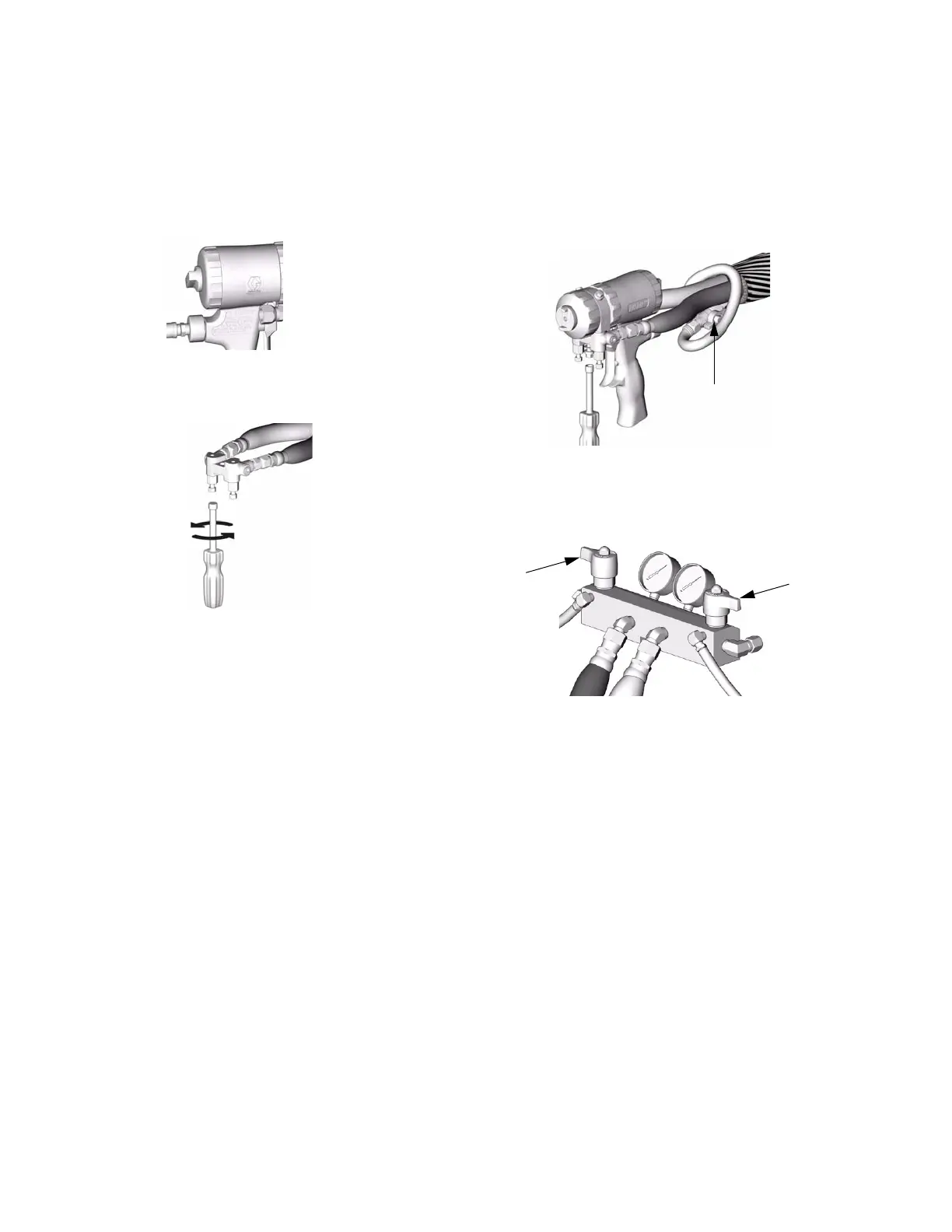

1. Engage gun piston safety lock.
2. Close gun fluid manifold valves A and B.
TI2409A
TI2728A
3. Attach gun fluid manifold. Connect gun air line.
Open gun air line valve (W).
4. Set PRESSURE RELIEF/SPRAY valves (SA,
SB) to SPRAY.
5. Check that heat zones are on and temperatures
are on target, page 26.
6. Check for proper pressure balance, page 27.
TI2543A
W
TI3591a
SA
SB
