Startup
309812D 27
If FTS is disconnected or display shows
diagnostic code E04, turn main power
switch OFF then ON
to clear diagnostic code and enter man-
ual current control mode. display
will show current to hose. Current is not
limited by target temperature.
To prevent overheating, install hose
thermometer close to gun end, within
operator view. Insert thermometer
through foam cover of A component
hose so stem is next to inner tube.
Thermometer reading will be about
20°F less than actual fluid temperature.
If thermometer reading exceeds 160°F
(71°C), reduce current with key.
h. Manual current control mode only:
WARNING
Read warnings, page 8. When in manual current con-
trol mode, monitor hose temperature with thermome-
ter. Install per instructions below. Thermometer
reading must not exceed 160°F (71°C).

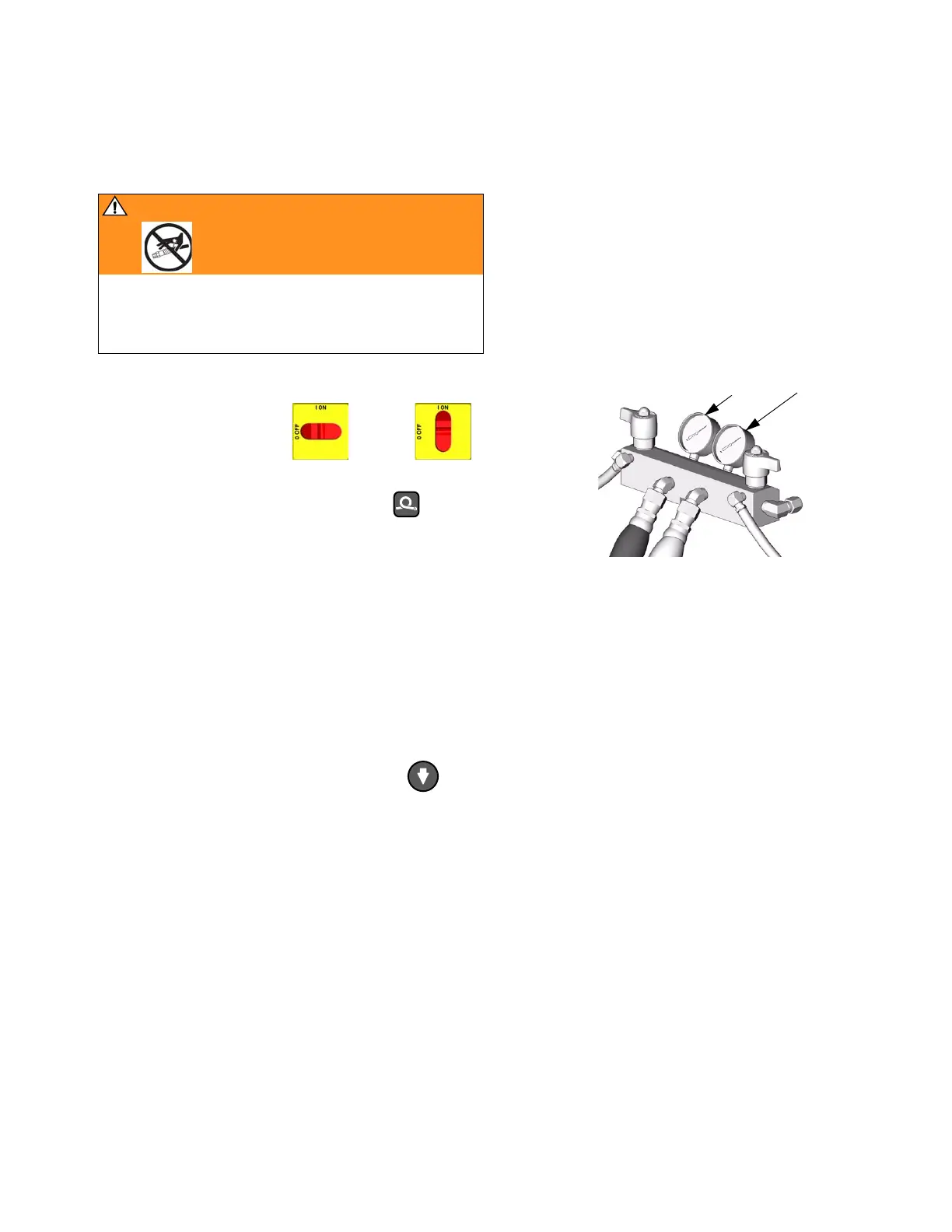

3. Set pressure
a. Turn on air or hydraulic pressure to
motor.
b. Adjust motor input pressure until fluid
pressure gauges (GA, GB) show
desired fluid pressure.
TI3591a
GA GB
