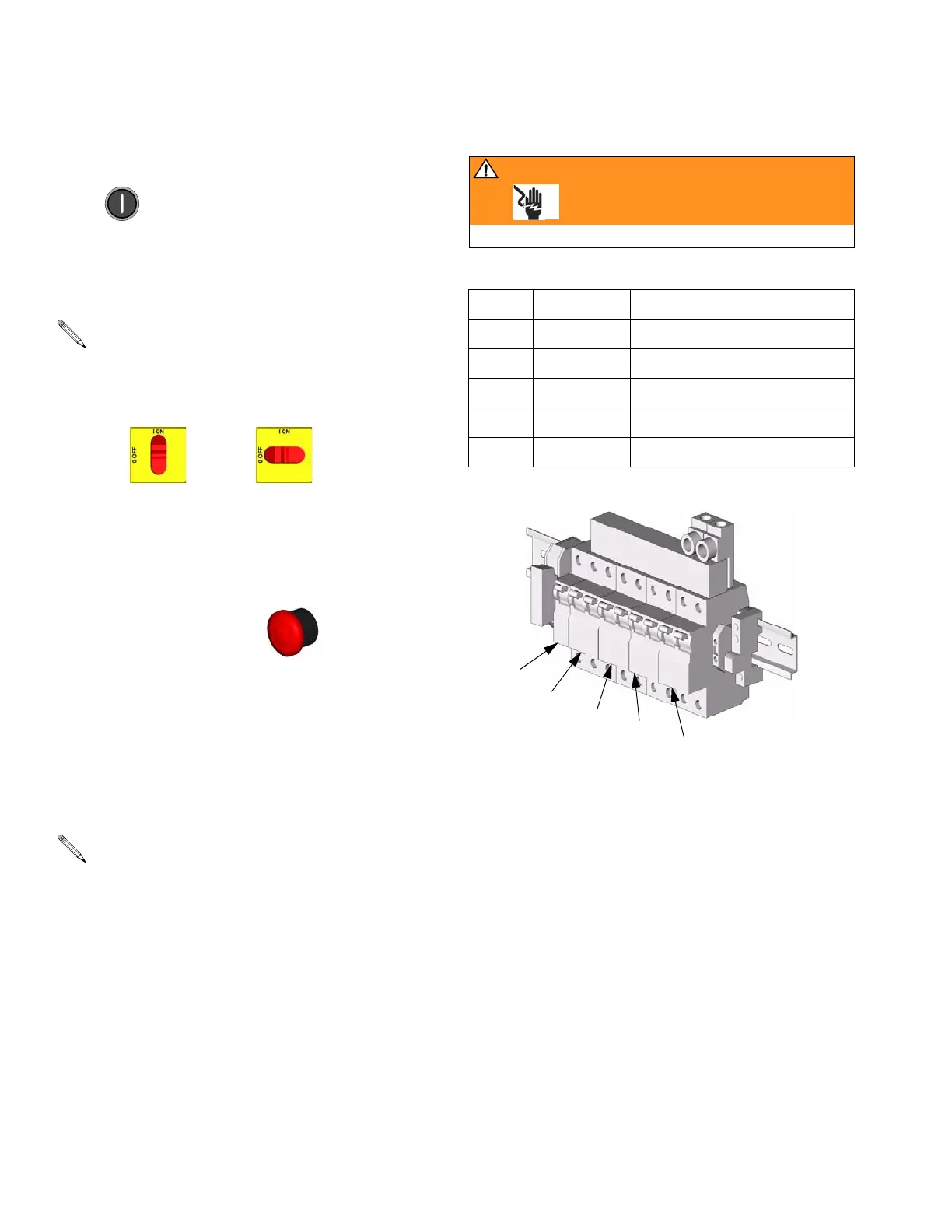

Controls and Indicators
14 309812D
Heater Zone On/Off
Keys/LEDs
Press to turn heater zones on and off. Also clears
heater zone diagnostic codes, see page 35.
LEDs are on steady when heater zones are powering
up. Begin flashing as heat reaches targets.
Main Power Switch
Located on right side of unit, page 12. Turns Reactor
power ON and OFF . Does not turn
heater zones or pumps on.
Red Stop Button
Located between temperature control panel and cycle
counter panel, page 12. Press to shut off heater
zones only. Does not stop air or hydraulic power to
pumps. Use main power switch to shut off all power to
heat control box. Close red-handled valve (BV or HS,
page 12) to shut off power to motor.
Cycle Counter
Displays cycle count.
Circuit Breakers
Located inside Reactor cabinet.
* Depending on model.
LEDs will also flash if cutback point is reached.
To clear counter, press reset button.
WARNING
Read warnings, page 8.
Ref. Size Component
CB1 50 A Hose/Transformer Secondary
CB2 20 A Transformer Primary
CB3 25 or 40 A* Heater A
CB4 25 or 40 A* Heater B
CB5 20 A Not Used
TI2514A
CB3
CB4
CB5
CB1
CB2
For wiring and cabling, see repair manual.
