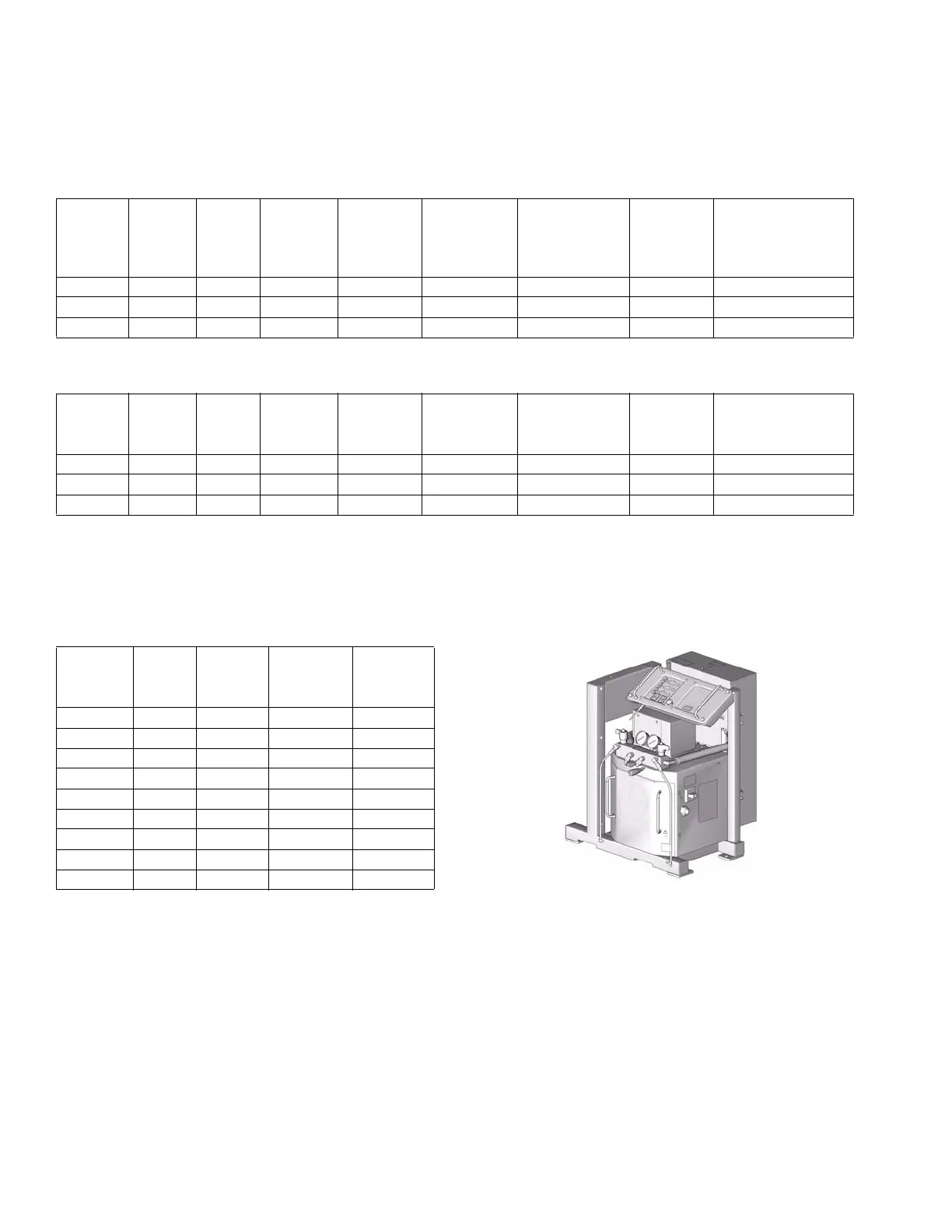

Graco Reactor A-25 Operation

Models
4 309812D
Hydraulic Powered Reactors
H-50 SERIES
H-XP SERIES
Heat Packages (do not include proportioner)
HT SERIES
Part No. Series Model
Voltage
(phase)
Heater
Watts
(no hose)
Flow
lb/min
(kg/min) at
45 cpm
Output per
Cycle (A + B)
gal. (liter)
Pressure
Ratio
Maximum Fluid
Working Pressure
psi (MPa, bar)
246039 B H-50 230V (1) 15,300 50 (22.5) 0.114 (0.433) 1.65:1 2000 (14, 140)
246756 B H-50 230V (3) 15,300 50 (22.5) 0.114 (0.433) 1.65:1 2000 (14, 140)
246757 B H-50 380V (3) 15,300 50 (22.5) 0.114 (0.433) 1.65:1 2000 (14, 140)
Part No. Series Model
Voltage
(phase)
Heater
Watts
(no hose)
Flow
gpm (lpm)
at 50 cpm
Output per
Cycle (A + B)
gal. (liter)
Pressure
Ratio
Maximum Fluid
Working Pressure
psi (MPa, bar)
246040 B H-XP3 230V (1) 15,300 3.6 (13.7) .072 (0.274) 2.76:1 3000 (20.7, 207)
246758 B H-XP3 230V (3) 15,300 3.6 (13.7) .072 (0.274) 2.76:1 3000 (20.7, 207)
246759 B H-XP3 380V (3) 15,300 3.6 (13.7) .072 (0.274) 2.76:1 3000 (20.7, 207)
Part No. Series Model
Voltage
(phase)
Heater
Watts
(no hose)
246365 B HT-6.0 230V (1) 6,000
246760 B HT-6.0 230V (3) 6,000
246761 B HT-6.0 380V (3) 6,000
246607 B HT-10.2 230V (1) 10,200
246762 B HT-10.2 230V (3) 10,200
246763 B HT-10.2 380V (3) 10,200
246364 B HT-15.3 230V (1) 15,300
246764 B HT-15.3 230V (3) 15,300
246765 B HT-15.3 380V (3) 15,300
