Graco REACTOR E-30 Repair Guide

Repair
26 309574L
Pump Installation
Steps 1-5 apply to pump B. See FIG. 6. To recon-
nect pump A, go to step 6 on page 27.
1. Ensure locknut (G) is screwed on pump with flat side
up. Screw pump into bearing housing (M) until pin
holes align. Push pin (F) in. Pull retaining wire clip
(E) down.
2. Continue screwing pump into housing until fluid out-
let (D) is aligned with steel tube and top threads are
+/- 1/16 in. (2 mm) of bearing face (N).
3. Tighten locknut (G) by hitting firmly with a
non-sparking hammer.
4. Reconnect fluid inlet (C) and outlet (D).
5. Go to step 13, page 27.

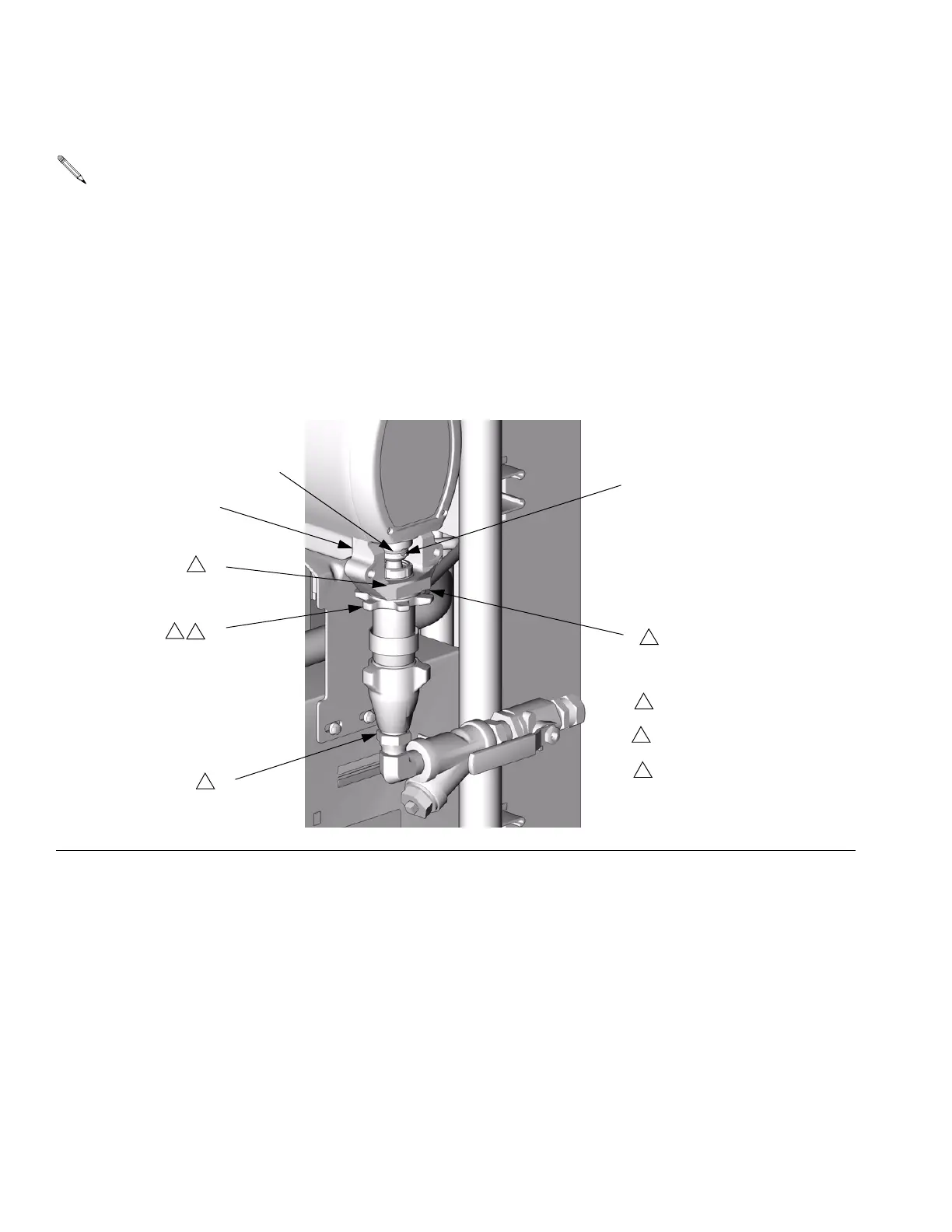

F
IG. 6. Reconnect Pump B
C
D
F
E
G
M
N
1
TI3765a-1
Flat side faces up.
1
Lubricate threads with ISO oil
or grease.
2
2
2
2
3
Pump top threads must be nearly
flush with bearing face (N).
3

Graco REACTOR E-30 Specifications

General

Maximum Fluid Temperature	190°F (88°C)
Max Fluid Pressure	3000 psi
Heater Wattage	6000 W
Power Requirements	3-phase, 230V
Type	Electric
Heater Voltage	230V
Fluid Outlet Size	3/8 in
Voltage	230V
Spray Tip Size	0.015 - 0.035 in
