Repair
26 309574L
Pump Installation
Steps 1-5 apply to pump B. See FIG. 6. To recon-
nect pump A, go to step 6 on page 27.
1. Ensure locknut (G) is screwed on pump with flat side
up. Screw pump into bearing housing (M) until pin
holes align. Push pin (F) in. Pull retaining wire clip
(E) down.
2. Continue screwing pump into housing until fluid out-
let (D) is aligned with steel tube and top threads are
+/- 1/16 in. (2 mm) of bearing face (N).
3. Tighten locknut (G) by hitting firmly with a
non-sparking hammer.
4. Reconnect fluid inlet (C) and outlet (D).
5. Go to step 13, page 27.
F

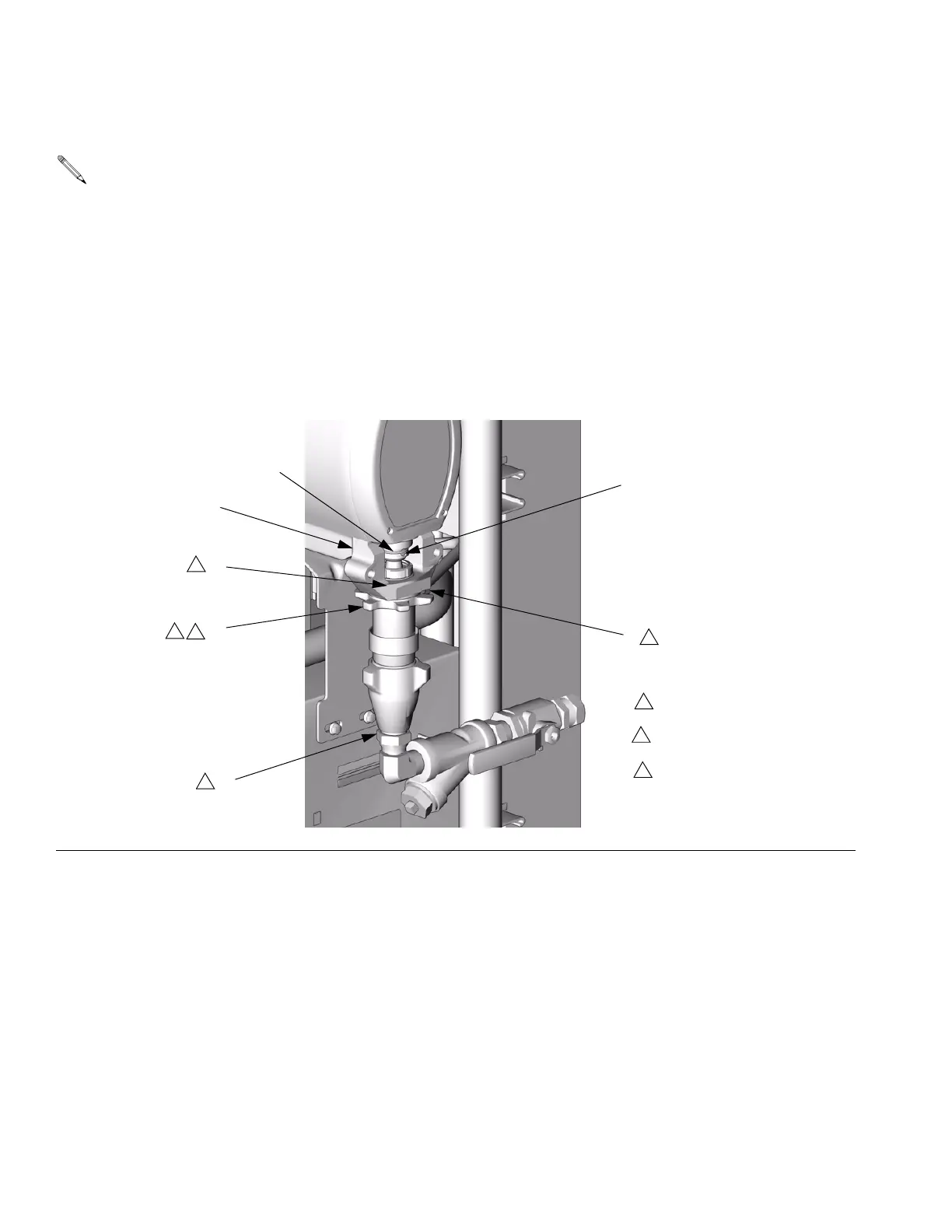

IG. 6. Reconnect Pump B
C
D
F
E
G
M
N
1
TI3765a-1
Flat side faces up.
1
Lubricate threads with ISO oil
or grease.
2
2
2
2
3
Pump top threads must be nearly
flush with bearing face (N).
3
