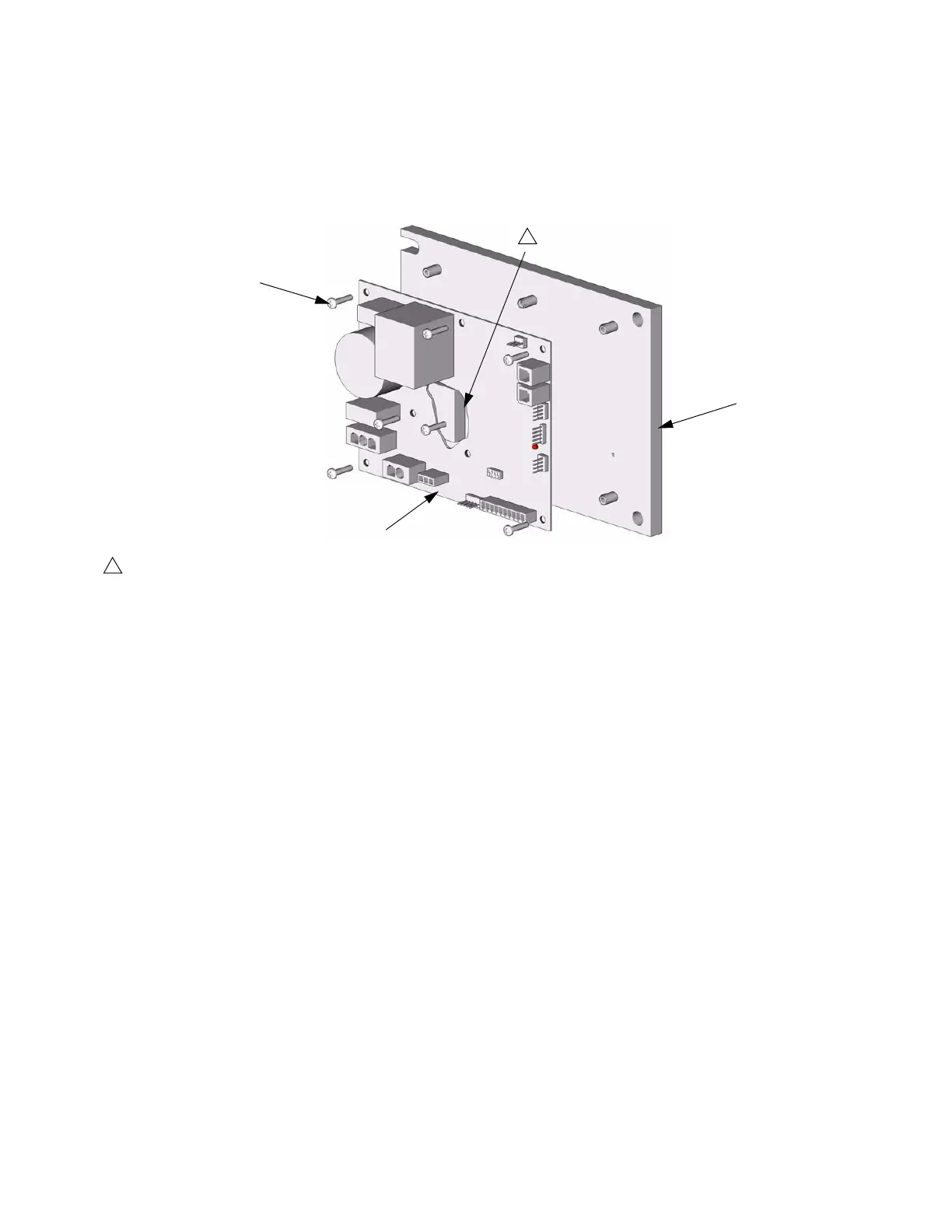

Reactor Assembly
309574L 65
Motor Control
245980 Motor Control, for E-20 and E-XP1
TI3153A
602
603
601
1
Apply 110009 thermal heatsink compound to mating surfaces.
1
Ref.
No. Part No. Description Qty
601 15B297 HEAT SINK 1
602 246195 BOARD, motor control 1
603 107156 SCREW, machine; 6-32 7
