Graco REACTOR E-XP2 Repair Manual

Reactor Assembly
309574L 67

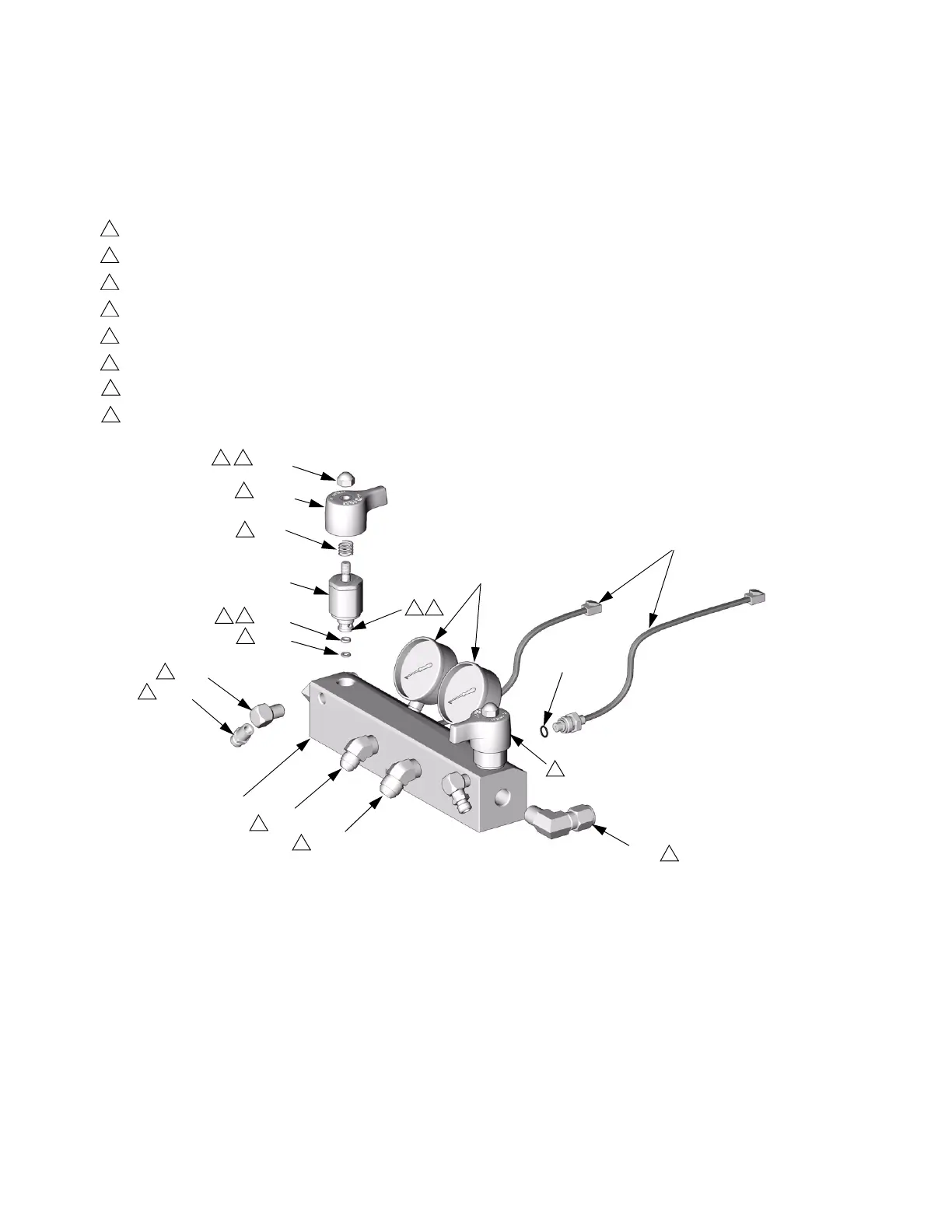

Fluid Manifold
246154 Fluid Manifold
* Included in Repair Kit 246842 (purchase separately).
▲ Replacement Warning labels, signs, tags, and cards
are available at no cost.
TI2573A
714
715
701
704
716
718
705
720
*711
*709
*702
*710
*707
*708
706
1
1
Apply 113500 thread lock (blue).
Torque to 355-395 in-lb (40.1-44.6 N•m).
Apply PTFE tape or thread sealant to tapered threads.
Torque to 175-195 in-lb (19.8-22.0 N•m).
Lubricate ends of spring when assembling.
Assemble valves (702) and handles (709) with handles facing away from each other.
Assemble seat (707) with lapped seat facing valve (702).
Apply grease (118665) to seat (707) and seal (708) prior to inserting into valve (702) to
aid retention during assembly to manifold (701).
1
2
3
4
5
6
7
8
2
3
4
5
6
6
3
3
3
3
8
8
7
Ref.
No. Part No. Description Qty
701 15B332 MANIFOLD; aluminum 1
702* 246161 VALVE, pressure relief/spray 2
704 102814 GAUGE; 5000 psi (35 MPa, 350 bar) 2
705 162453 NIPPLE; 1/4 npt x 1/4 npsm 2
706 246123 TRANSDUCER, pressure control 2
707* 193709 SEAT, valve; carbide 2
708* 193710 SEAL, seat; nylon 2
709* 15B287 HANDLE, valve 2
710* 114708 SPRING 2
711* 117623 NUT, cap; 3/8-16 2
714 117556
ELBOW,
45°; #8 JIC x 1/2 npt
1
715 117557
ELBOW,
45°; #10 JIC x 1/2 npt
1
716 117532 ELBOW; 1/2 npt(m) x 1/2 in. (13 mm)
OD tube
2
718 100840 ELBOW, street; 1/4 npsm x 1/4 npt 2
720 111457 O-RING; PTFE 2
721
▲
189285 LABEL, caution 1
Ref.
No. Part No. Description Qty
