Removing and Replacing Hopper, Front and Back Covers
310645F 11
Back Cover
To access the motor and all other components, it is
necessary to remove the hopper, front and back covers.

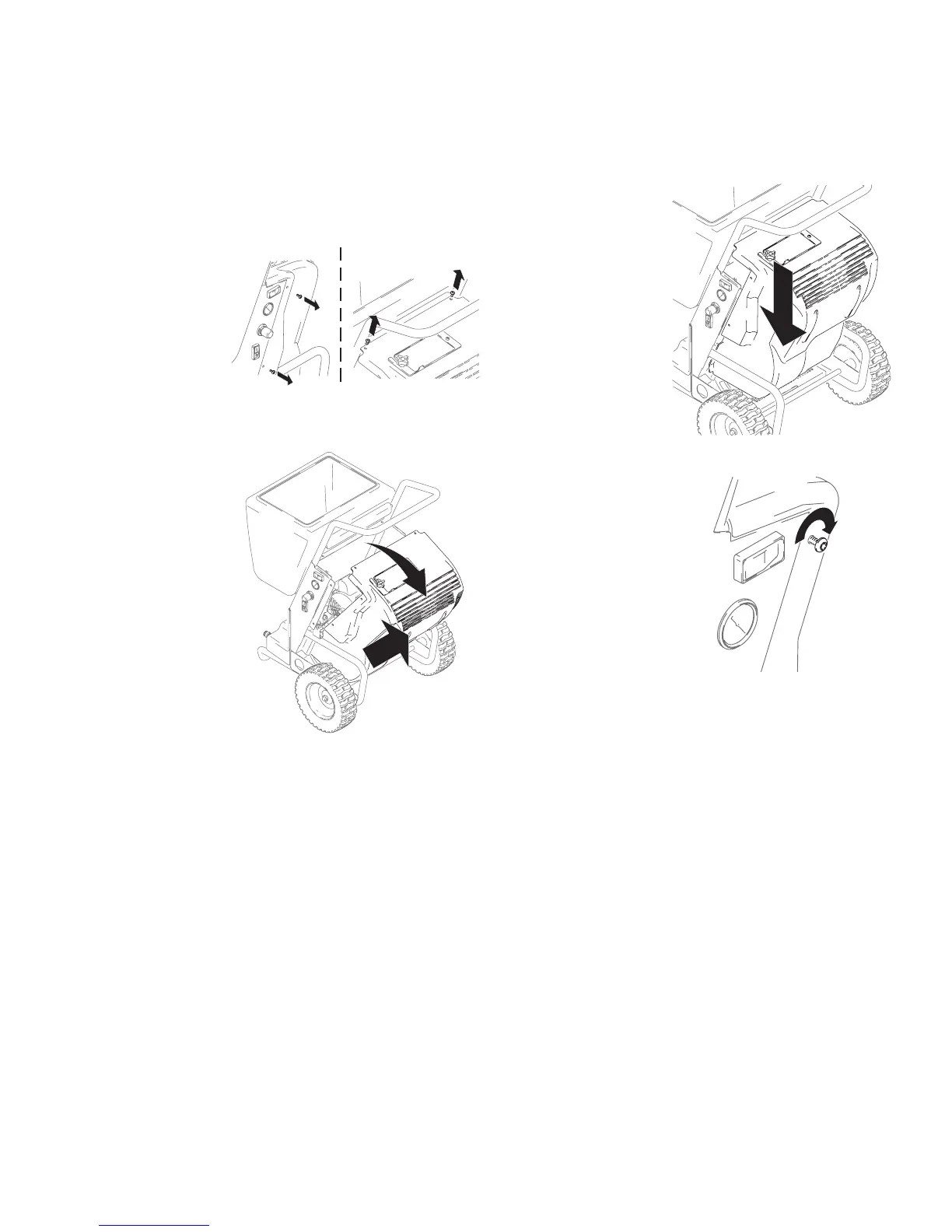

Removing Cover
1 Completely
remove 6
screws (2 on top
and each side)
from cover.
2 Lift cover up and
then tilt it back
and off sprayer
frame.
Replacing Cover
1 To reposition cover
on sprayer frame,
tip the cover back,
toward you and
slide it down, into
place in the base of
the frame. Then
push the top back
into place. Align
screw holes in side
and top of cover
with holes in frame.
2 Replace and
tighten screws.
ti4430a
ti4431a
ti4432a
ti4433a
