RotoFlex™ HD Pump
12 310645F
RotoFlex™ HD Pump
Use RotoFlex HD Pump Replacement Kit 287314.

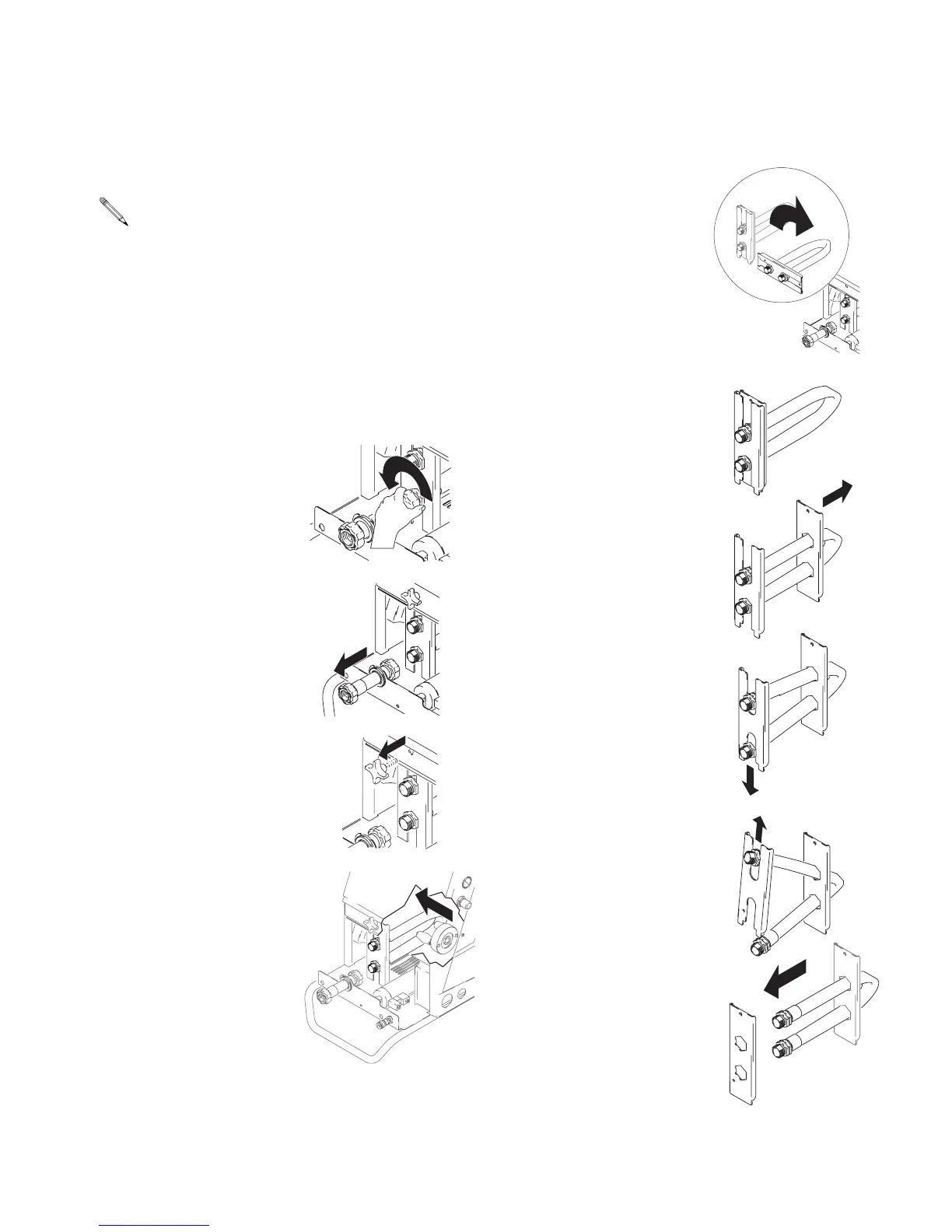

Disassembly
First read and follow instructions in the Before
performing any service on sprayer section, page 10.
Then remove hopper and front cover, page 10.
1 Loosen and remove hose
extension.
2 Loosen and remove knob.
3 Slide RotoFlex HD hose
off rollers.
4 Rotate pump assembly
sideways. Pull entire
assembly out of front of
sprayer frame.
.
5 Separate the inner and
outer hose brackets.
6 Slide hose ends out of
slots in outer hose
bracket.
• Slide out of short slot
first.
7 Pull hose out of inner
hose bracket.
8 Discard pump hose.
IMPORTANT
• After replacing RotoFlex HD Pump hose, always
follow Hose Break-In Procedure, page 14,
before operating sprayer.
ti4377a
ti4378a
ti4374a
ti4519a
ti4376a
ti4379a
