RotoFlex™ HD Pump
310645F 13

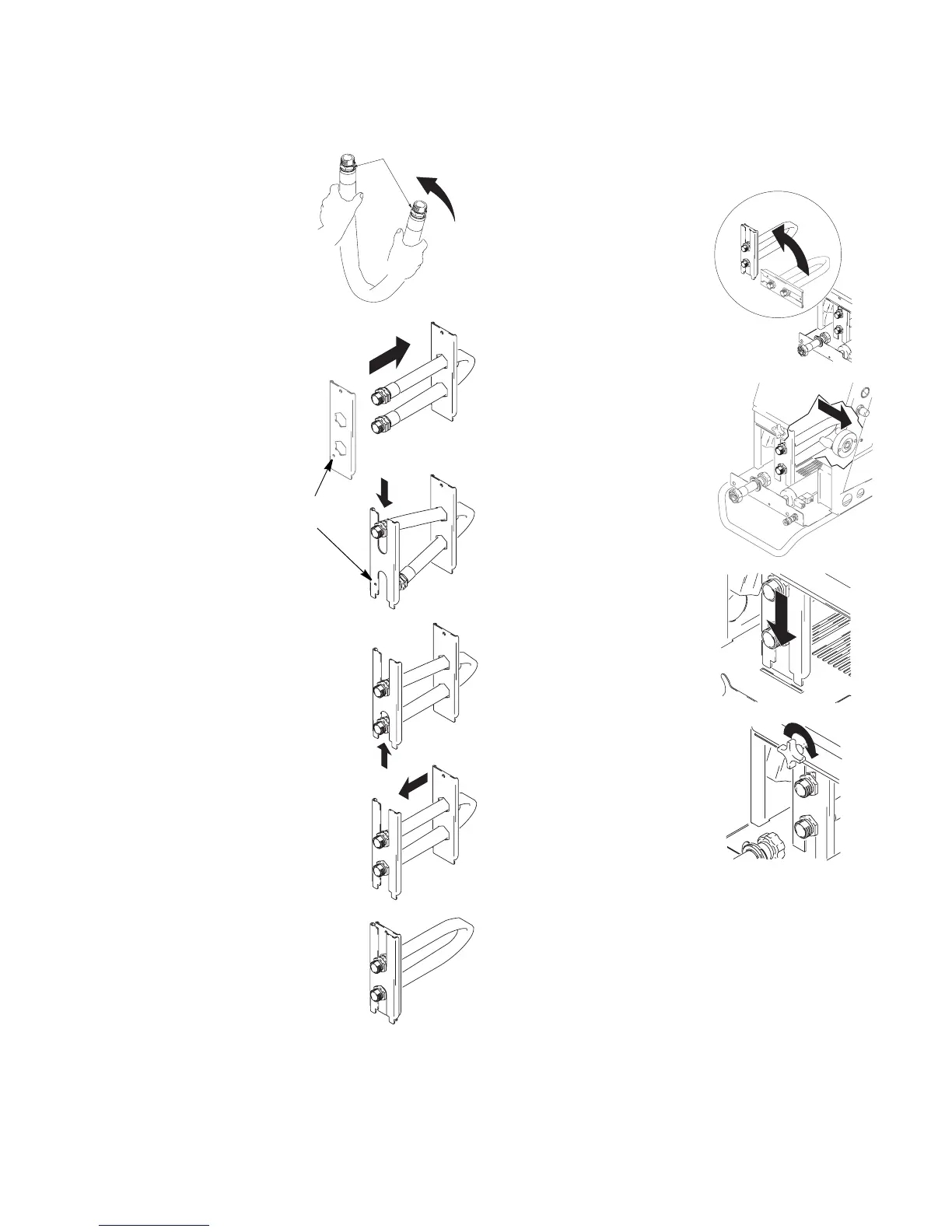

Reassembly
1 Bend and kink new
pump hose from kit in
the middle as shown,
making sure dots on
hose fittings face each
other.
2 Insert hose ends
through holes in inner
hose bracket, keeping
dots on fittings facing
each other and kinked
portion of hose hori-
zontal to the underside
of bracket.
3 Slide hose ends into
outer hose bracket,
making sure dots on fit-
tings face each other
and alignment holes
are together.
• Slide into long slot
first.
4 Slide plates together, inserting inner plate in outer
plate, matching alignment holes.
5 Replace bracket
assembly in housing
making sure the
mounting screw hole,
located in the top cen-
ter of the inner plate,
faces up.
6 Slide pump hose
around rollers. Make
sure the rollers are
horizontally parallel to
each other.
7 Slide feet on the bot-
tom of hose bracket,
into the slot on the
bottom of sprayer.
8 Replace knob. Hand
tighten.
9 Reattach hose exten-
sion.
10 Replace front cover
and hopper. See
Removing and
Replacing Hopper,
Front and Back Cover,
page 10.
ti3127a
DOTS
ti4386a
alignment
holes
ti4383a
ti4520a
ti4429a
ti4381a
