Compressor and Motor Repair
16 310645F

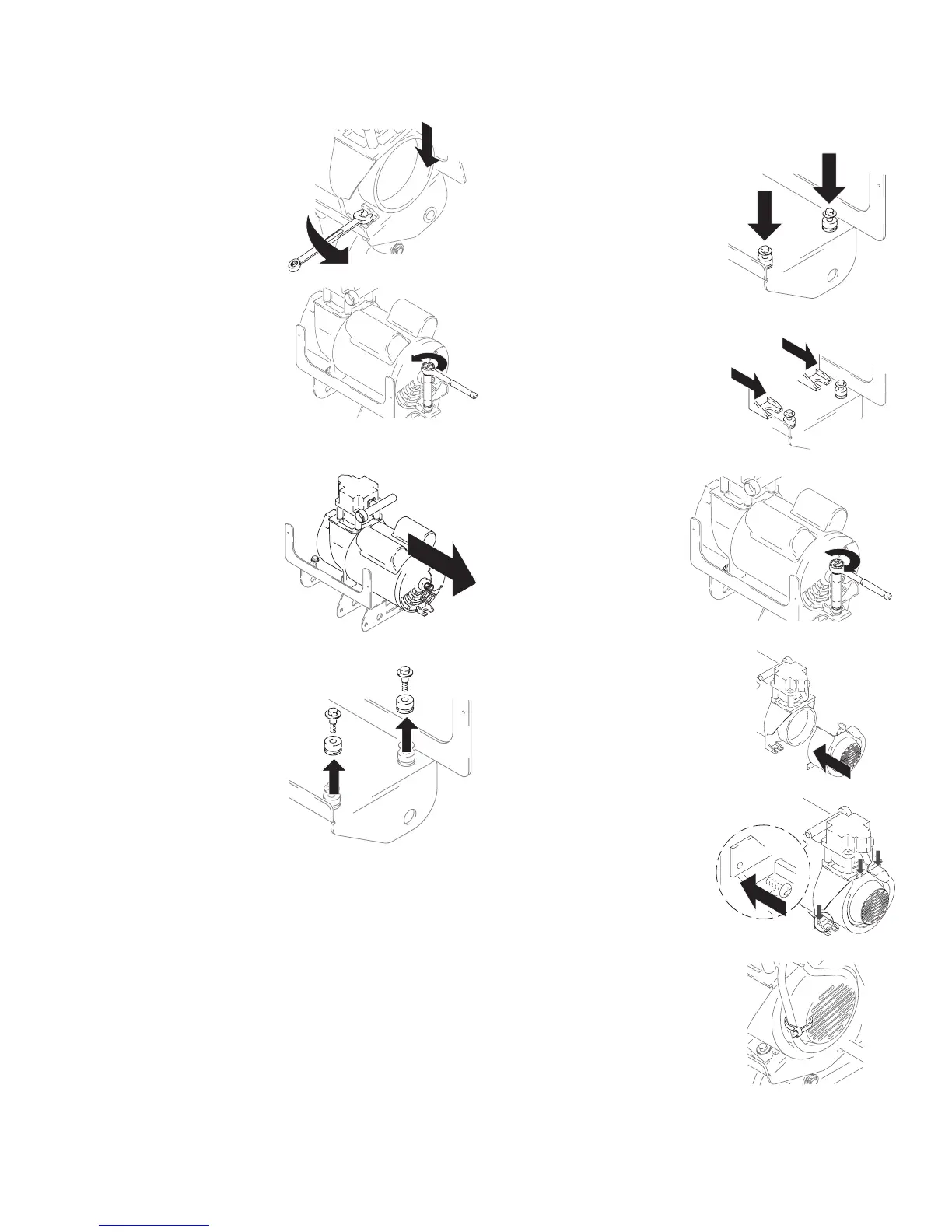

8 Loosen 2 shoulder
bolts about 2-3 turns.
Do not remove them.
9 Remove single
shoulder bolt on other
side of motor com-
pletely.
10 Slide out motor
assembly.
11 Completely remove old
shoulder bolts and rub-
ber mounts.
12 Thoroughly clean inside housing to remove dust and
debris.
Reassembly
1 Using two new shoulder
bolts and rubber mounts
included in your kit, insert
bolts into openings until
they start to snug up on
rubber mounts.
2 Slide new motor into
sprayer frame, aligning
motor frame opening
under bolts. Tighten bolts.
3 Replace shoulder bolt
on left side with new
bolt from your kit.
Tighten bolt.
4 Replace end cover.
Replace and tighten 3
screws.
5 Reattach air line to cooler
and compressor. Tighten
fitting.
ti4463a
ti4425a
ti4462a
ti4464a
ti4465a
ti4468a
ti4424a
ti4484a
ti4485a
ti4516a
