Compressor and Motor Repair
310645F 17

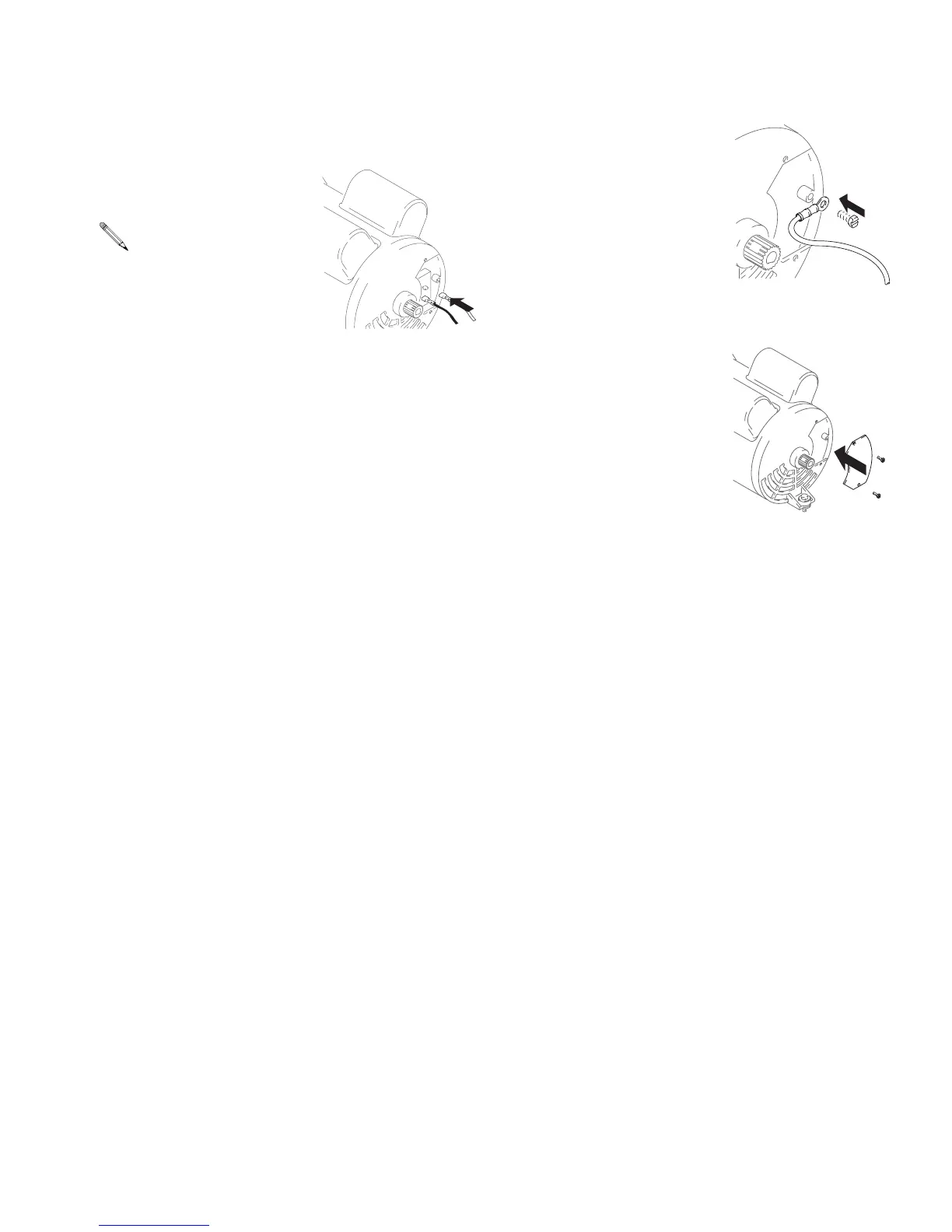

6 Slide belt over pulleys and set tension. See Replacing
Belt, page 20.
7 Reattach black and white
wires to motor.
8 Replace reattach green
ground wire and grounding
nut.
9 Replace cover plate and
screws.
10 Replace RotoFlex HD
Pump and hose exten-
sion, page 13.
11 Replace front and back
covers and hopper. See
Removing and Replacing
Hopper, Front and Back
Cover, page 10.
Wires are not polarity
sensitive.
