Graco SG3 - Parts Drawing; Parts List

13309637

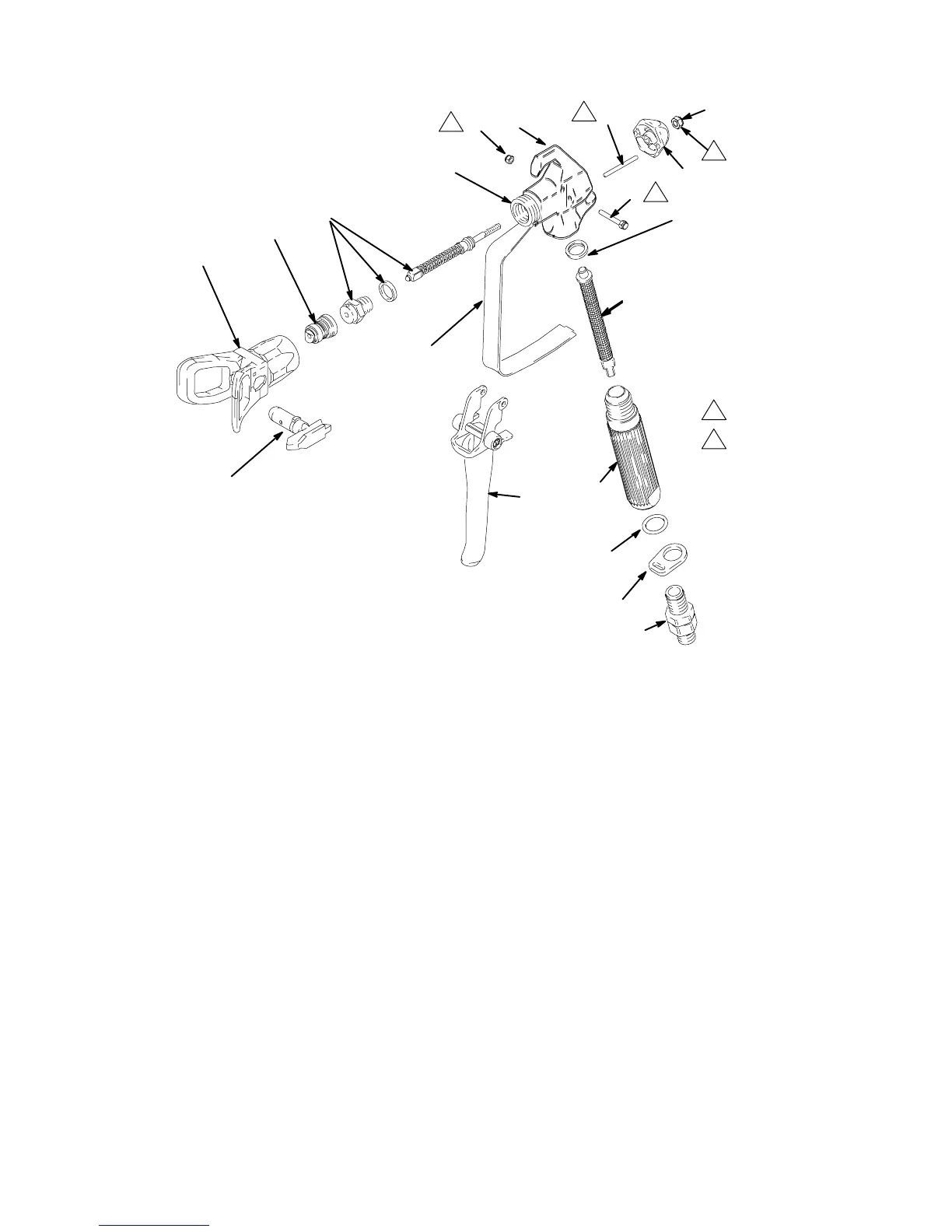

Parts Drawing
6
ti1432a
n2
n15
33
22
8
7n
26
1
Included with 1
23
24
5
10
3
2
2
Included with 33
1
1
32
14
2
2
11
4
9
Parts List
Ref.
No. Part No. Description Qty.
1 243092 KIT, repair, needle 1
2√ 246391 GUARD, tip, includes 3 1
3 246390 SEAL, cartridge 1
4 195495 GUARD, trigger 1
5 238817 KIT, swivel 1
6√ 218131 FILTER, gun 1
7√ 179733 SEAL, sleeve 1
8 195395 CAP, end 1
9 115483 CAP, end 1
10 115484 PIN, actuator 2
11 195419 HOUSING, needle 1
14 177538 STUD, trigger 1
15√ TIP, spray 1
15a√ TR1413 TIP, spray, cylinder, size 413 1
Ref.
No. Part No. Description Qty.
15b√ TR2515 TIP, spray, cylinder, size 515 1
15c√ TR3517 TIP, spray, cylinder, size 517 1
22 113409 RETAINER, guard 1
23 195788 HANDLE, gun 1
24 115485 O–RING 1
26 195390 HOUSING, fluid 1
32 105334 NUT, lock, hex 1
33 243353 KIT, repair, trigger 1
34Y 222385 WARNING CARD, not shown 1
Y Replacement Danger and Warning labels, tags and cards
are available at no cost.
√ Keep these spare parts on hand to reduce down time.
