Pièces
18 312372E
Pièces
1
2
8-29
10
8-1
18
19
20
7
4
3-2
5
15
16
17
14
13
12-1
ti10444a
12-2

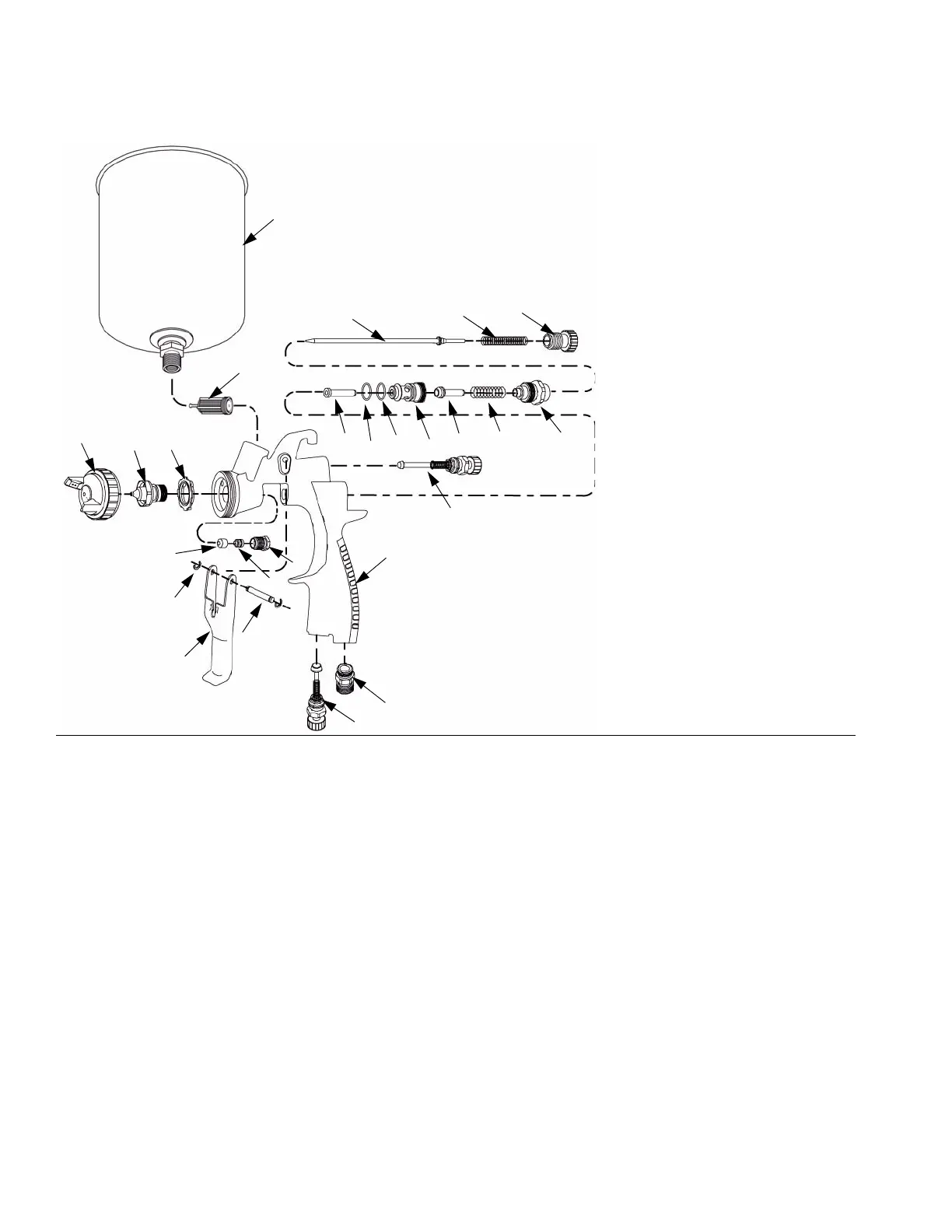

Ref. Description Qty
1 CAP, air 1
2 NOZZLE, fluid 1
3-1* PACKING, fluid needle 1
3-2* PACKING, fluid needle 1
4* NUT, packing 1
5* KNOB, pattern
adjustment
1
6* O-RING 1
7* GUIDE, fluid needle 1
8-1* GUIDE, fluid adjusting 1
8-2* KNOB, fluid adjusting 1
9* SPRING, fluid needle 1
10 NEEDLE, fluid 1
11* O-RING 1
12-1 BODY, gun 1
12-2*DISTRIBUTOR, air 1
13* FITTING, air inlet 1
14* VALVE, air adjustment 1
15* RING, retaining 2
16* PIN, trigger 1
17* TRIGGER 1
18* SPRING, air valve 1
19* VALVE, air 1
20* SEAT, air valve 1
24* FILTER, fluid 1
26 CUP, gravity, alumi-
num
1
27 TOOL, gun (not
shown)
1
11
6
24
26
3-1
