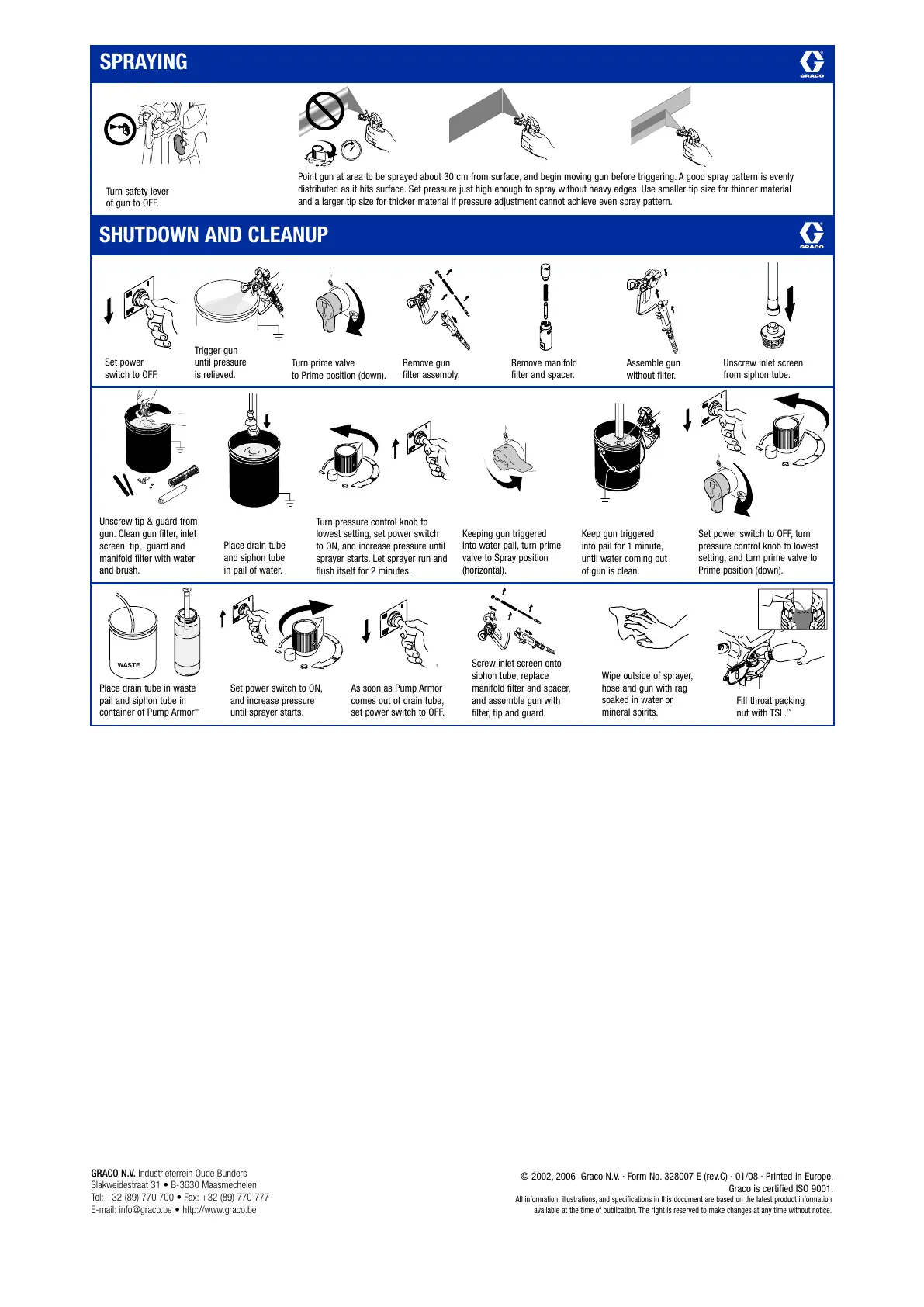

SPRAYING
Turn safety lever
of gun to OFF.
Point gun at area to be sprayed about 30 cm from surface, and begin moving gun before triggering. A good spray pattern is evenly
distributed as it hits surface. Set pressure just high enough to spray without heavy edges. Use smaller tip size for thinner material
and a larger tip size for thicker material if pressure adjustment cannot achieve even spray pattern.
SHUTDOWN AND CLEANUP
Set power
switch to OFF.
Trigger gun
until pressure
is relieved.
Turn prime valve
to Prime position (down).
Remove gun
filter assembly.
Unscrew tip & guard from
gun. Clean gun filter, inlet
screen, tip, guard and
manifold filter with water
and brush.
Set power switch to ON,
and increase pressure
until sprayer starts.
As soon as Pump Armor
comes out of drain tube,
set power switch to OFF.
Screw inlet screen onto
siphon tube, replace
manifold filter and spacer,
and assemble gun with
filter, tip and guard.
Wipe outside of sprayer,
hose and gun with rag
soaked in water or
mineral spirits.
Fill throat packing
nut with TSL.
™
Place drain tube
and siphon tube
in pail of water.
Turn pressure control knob to
lowest setting, set power switch
to ON, and increase pressure until
sprayer starts. Let sprayer run and
flush itself for 2 minutes.
Keeping gun triggered
into water pail, turn prime
valve to Spray position
(horizontal).
Set power switch to OFF, turn
pressure control knob to lowest
setting, and turn prime valve to
Prime position (down).
Place drain tube in waste
pail and siphon tube in
container of Pump Armor
™
Assemble gun
without filter.
Unscrew inlet screen
from siphon tube.
