16 309977
Pressure Control Repair
Motor Control Board
Removal
Refer to Wiring Diagram, page 27.
1.
Relieve pressure; page 4.
2. Remove five screws (12) and motor cover (18).
3. Cut wire tie holding wiring to motor control
board (38).
4. Disconnect at motor control board (38):
D Motor wire harness: brown (+), blue (–).
D Two line voltage leads: brown (+), blue (–).
D Lead (D) from potentiometer.
D Lead (E) from transducer.
D Two leads (F) from motor thermal switch.
5. Remove six screws (83) and circuit board (38).
Installation
CAUTION
Electrostatic discharges can damage components on
motor control board. Use a ground strap when
handling or installing motor control board.

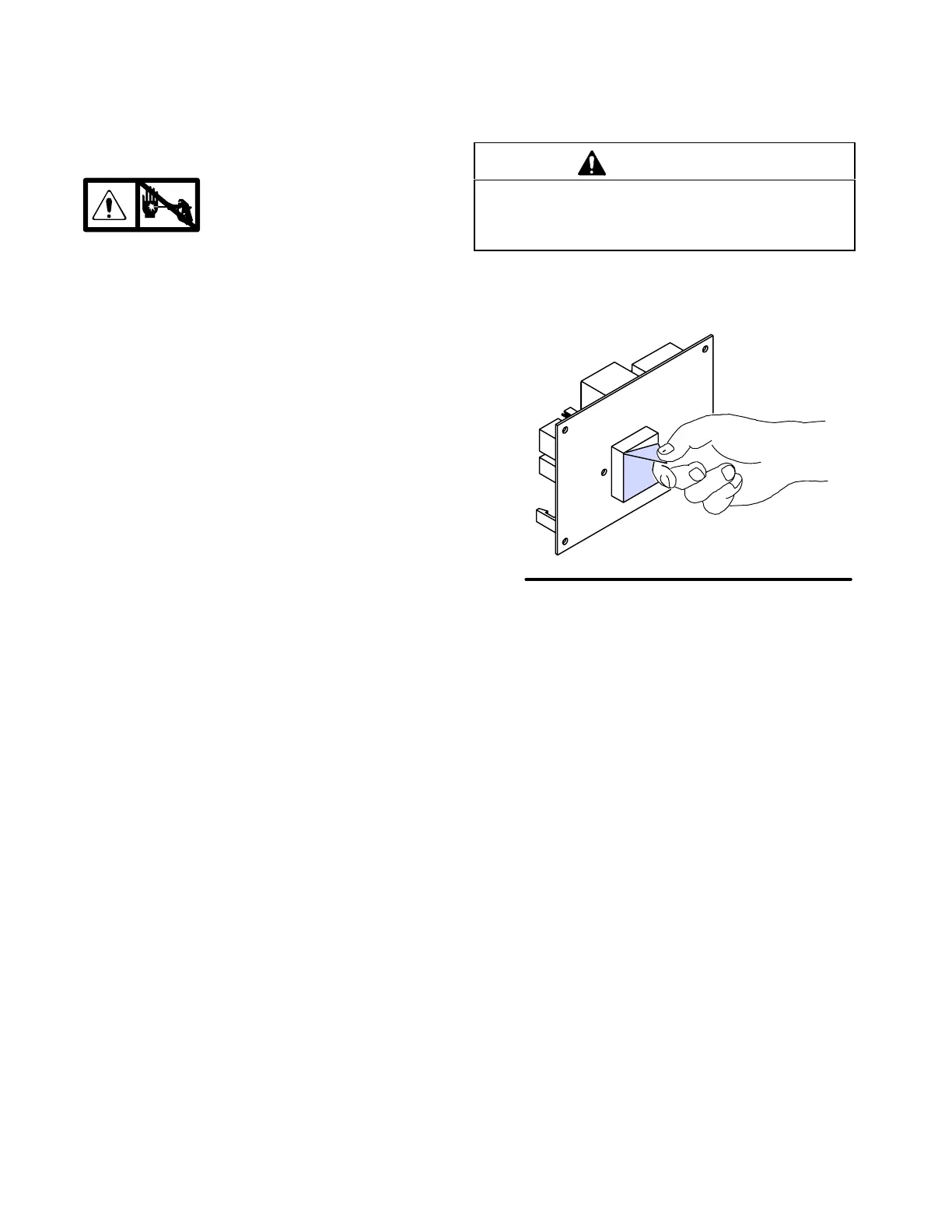

1. Fig. 7. Remove old thermal paste from control box.
Remove protective cover from thermal pad on new
motor control board.
Fig. 7
ti8397a
2. Fig. 6. Install motor control board (38) with six
screws (83).
3. Connect to motor control board (38):
D Two leads (F) from motor thermal switch.
D Lead (E) to transducer.
D Lead (D) to potentiometer.
D Two line voltage leads: brown (+), blue (–).
D Motor wire harness: brown (+), blue (–).
4. Bundle and tie all loose wires together.
5. Install motor cover (18) with five screws (12).
