Graco T-Max 405 A Series User Manual

27309977
Parts List
Models 248195, 248269, 249075; Series A
Ref
No. Part No. Description Qty
Ref
No. Part No. Description Qty
6
PM 106115 WASHER, lock spring (hi–collar) 4
7
PM 107210 SCREW, cap, socket hd 4
10PM 114672 WASHER, thrust 3
11PM 114699 WASHER, thrust 1
14PM 116191 WASHER, thrust 1
25
PM 15D708 BASE, gear housing 1
27PM 193031 NUT, retaining 1
29PM 243870 GEAR, combination 1
31PM 248764 PUMP, displacement, texture 1
33PM 248759 KIT, repair, motor, 240V 1
249476 KIT, repair, motor, 110V 1
34
PM 248633 HOUSING, bearing 1
37PM 248558 HOUSING, drive 1
45PM 241008 KIT, repair, connecting rod, includes 76 1
71PM 100020 WASHER, lock 4
73 118768 CAP, pump 1
74PM 119283 ADAPTER, plug, dust 1
75
PM 176818 PIN 1
76PM 176817 SPRING, retaining 1
79 15E107 LEG, support, pump 1
82 111040 NUT, lock 6
84PM 105510 WASHER, lock, spring (hi–collar) 6
85
PM 100644 SCREW, cap, sch 4
86
PM 107218 SCREW, cap, sch 2
90PM 101888 SCREW, cap, sch 4
102PM 192840 LABEL, warning 1
106PM 187436 LABEL, torque 1
109
PM 118715 FAN, motor 1
110PM 15E287 BUSHING, shaft, fan 1
111PM 103253 SCREW, set, hex soc 1
112PM 113983 RING, retaining, ext 1
150* 195551 RETAINER, adapter, cord 1
151* 15E259 Euro Multi cord 1
152* 242001 CEE 7/7 1
153* 287121 Italy, Denmark, Switzerland 1
154† 15E257 CEE 7/7 1
155
PM 15E271 HARNESS, wire 1
156‡ 15F233 UK 1
* Included in Model 248269 and pump module kit 248651
† Included in Model 248195 and pump module kit 248634
‡ Included in Model 249075 and pump module kit 249519
PM Included in pump module kits 248634, 248651, 249519
ON/OFF
Switch
Power Plug
Potentiometer

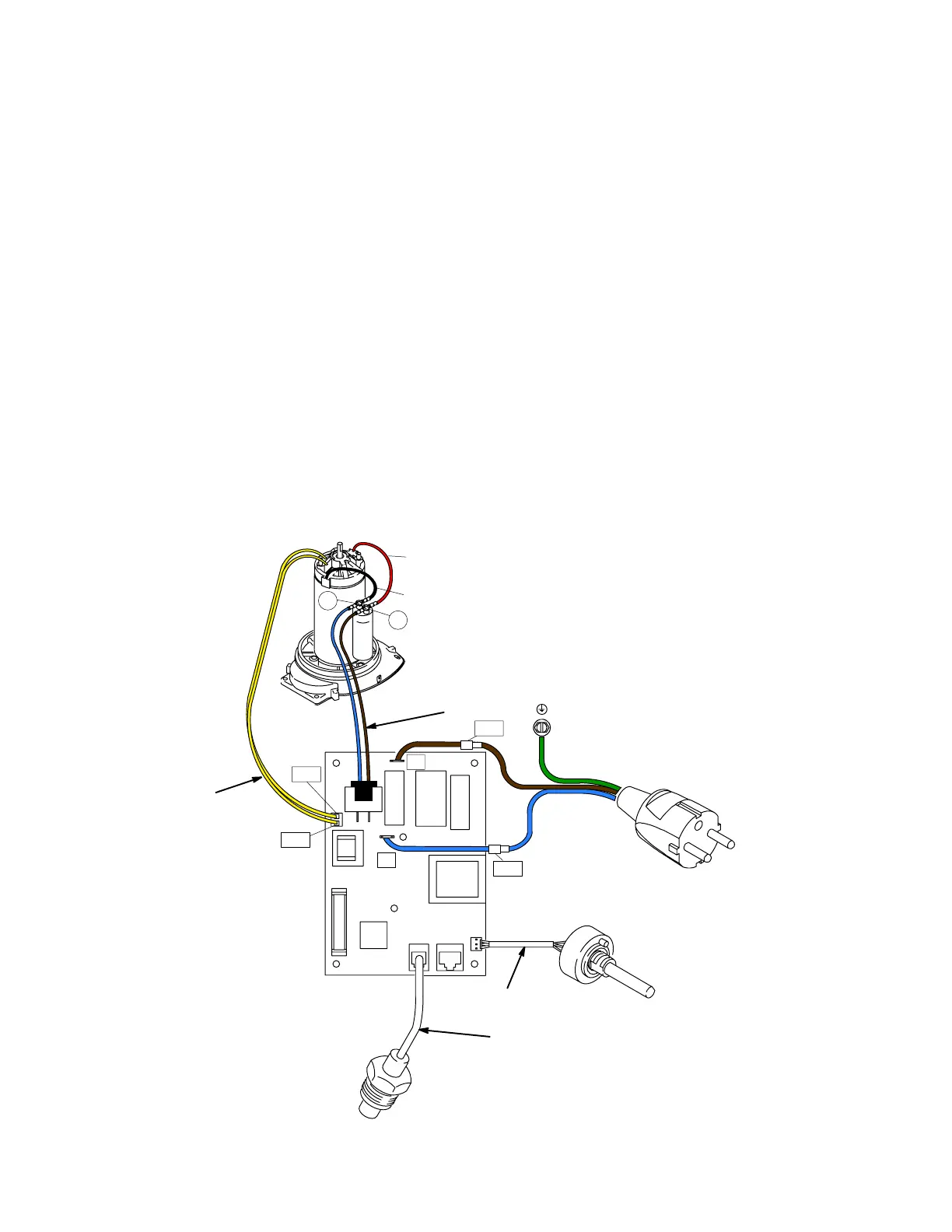

Wiring Diagram
Brown(+)
Brown (+)
Pressure
Transducer
Blue (–)
Blue (–)
ti4107a
Green
ground
155
–
+
+
–
Red
Black
T02
T01
L1
TP1
TP2
L2
F
E
D
