Graco T-Max 405 A Series User Manual

4 309977
General Repair Information
Pressure Relief
WARNING
PRESSURIZED EQUIPMENT HAZARD
The system pressure must be manually relieved to
prevent the system from starting or spraying
accidentally. To reduce the risk of an injury from
accidental spray from the applicator, splashing
fluid, or moving parts, follow the Pressure Relief
Procedure whenever you
D Are instructed to relieve the pressure
D Stop spraying
D Check or service any of the system equipment
D Install or clean the spray nozzle
Pressure Relief Procedure
1. Turn pump control off (0).
2. Point applicator into hopper. Turn applicator on.
3. Open the applicator air valve (handle parallel with
valve body).
4. Unplug the electrical power cord.
5. Hold hose firmly in one hand and slowly open one
cam arm at a time. Remove hose from pump
outlet.
Grounding and Electrical Requirements
WARNING
Improper installation or alteration of the grounding
plug will result in a risk of electric shock, fire or
explosion that could cause serious injury or death.
Voltage Requirements
D Fig. 1. 220–240 Vac models require a 50 Hz, 16A
circuit with a grounding receptacle. 100–120 Vac
models require a 50/60 Hz, 16A circuit with a
grounding receptacle.

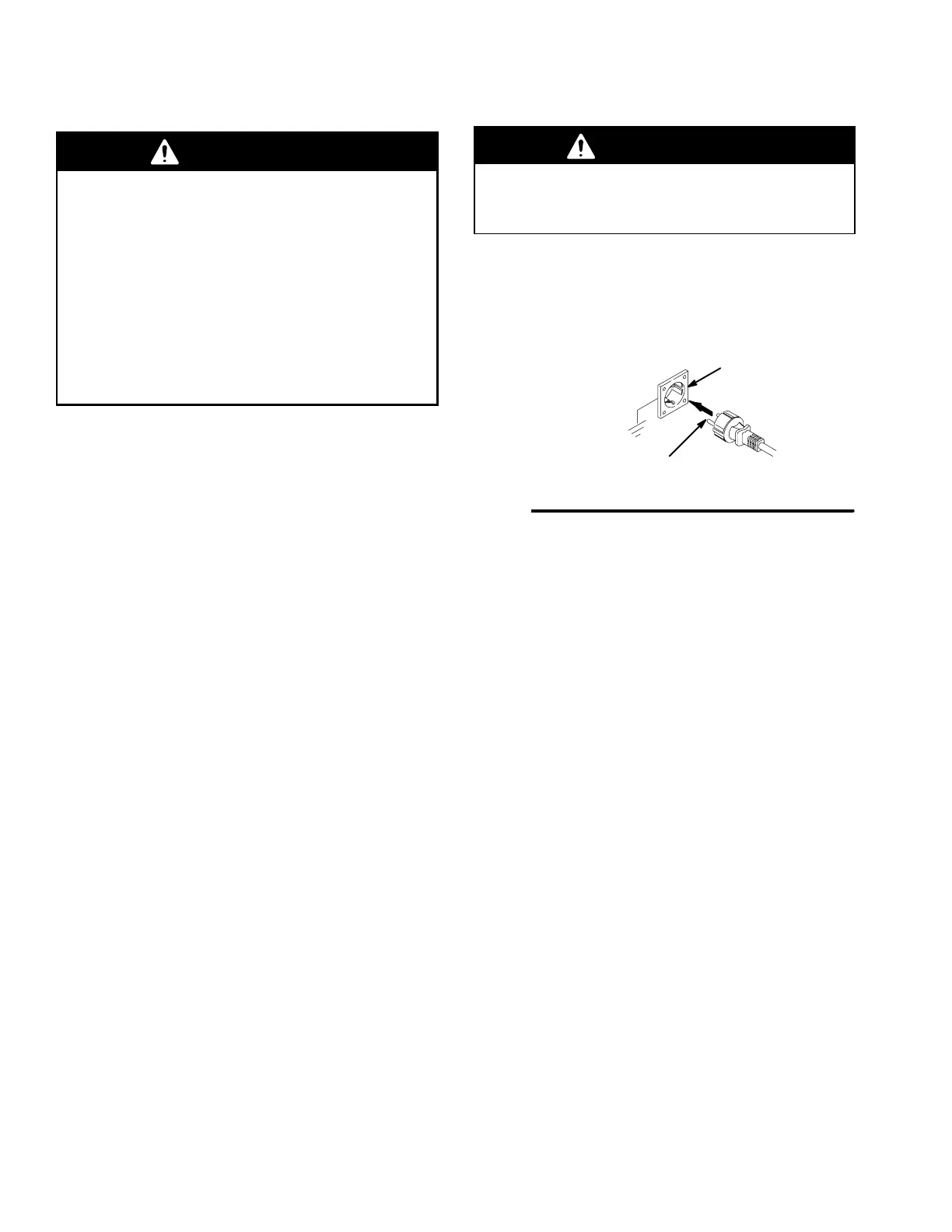

Fig. 1
grounded
outlet
ti4109b
grounding prong
240 Vac model shown
D Do not alter the ground prong or use an
ungrounded adapter.
Extension Cords
D Use only an extension cord with an undamaged,
3-prong plug.
D 120 Vac: A 12 AWG, 3 wires with grounding prong,
300 ft (90 m) extension cord may be used.
220–240 Vac: You may use a 3-wire, 1.0 mm (12
AWG) (minimum) extension cord up to 90 m long.
Long lengths reduce sprayer performance..
