Assemble Pump

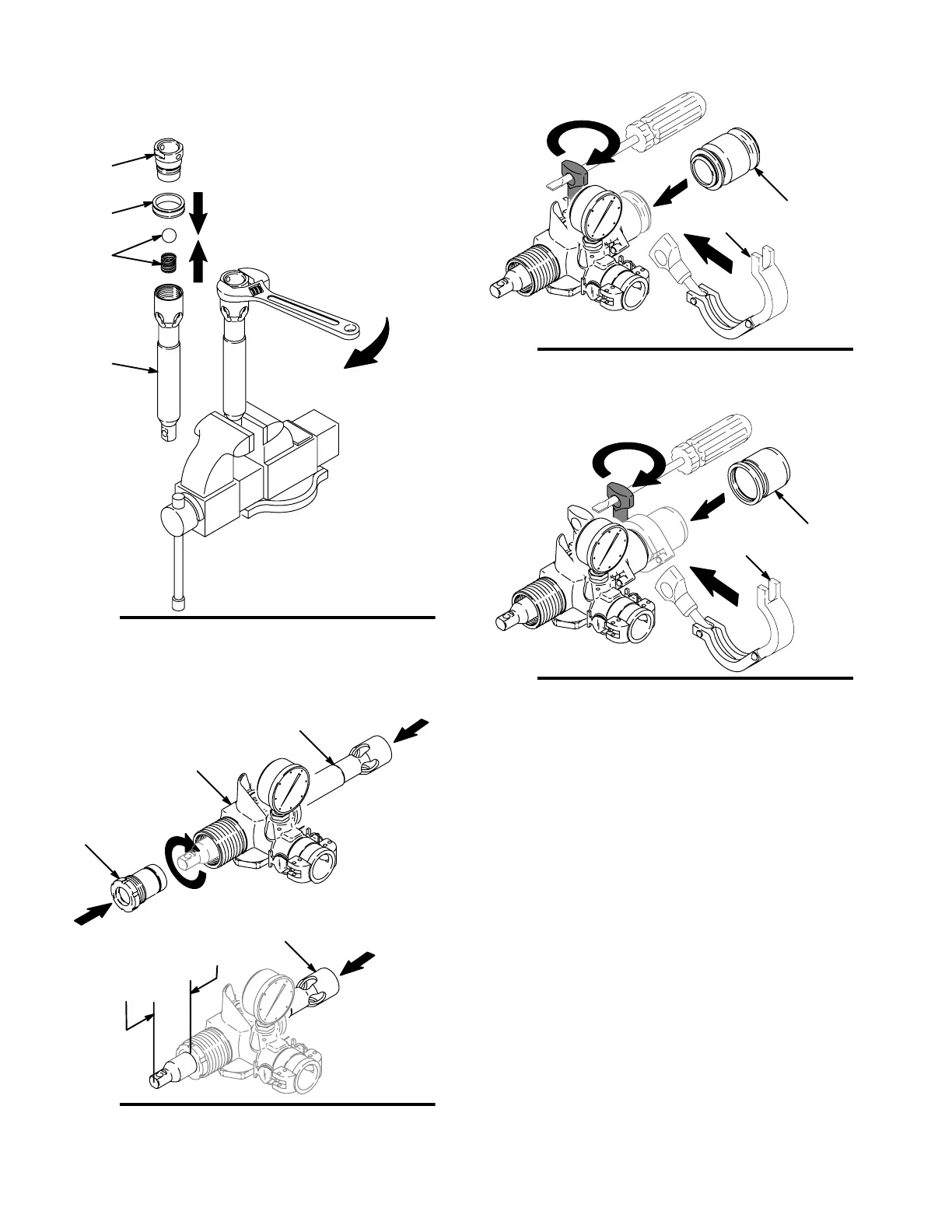

1. Fig. 16. Place end of piston rod (203) in vise.
Install new piston seal (222). Torque piston valve
to 27 ft-lb (36.6 Nm).
203
222*
217*
220*
ti4804a
Fig. 16
2. Fig. 17. Install packing nut (216). Hand tighten and
then tap with screw driver. Push piston rod (203)
into outlet housing (202) and extending 50 – 75
mm out of outlet housing.
Fig. 17
ti5131a
216
202
203
ti5131a
203
2–3”
50–75mm
3. Install clamp (209) on pump cylinder (201).
Torque clamp to 25 in-lb (2.82 Nm).
ti5132a
201
209
Fig. 18
4. Install clamp (209) on intake housing (204). Torque
clamp to 25 in-lb.
Fig. 19
ti5132a
204
209
5. See Pump Repair, Installation on page 18 to
install pump.
