Graco T-Max 405 A Series User Manual

29309977
Parts – Pump 248764
Model 248764, Series A
Ref
No. Part No. Description Qty.
Ref
No. Part No. Description Qty.
201 15D113 CYLINDER, pump 1
202 15D108 HOUSING, outlet 1
203 15D532 ROD, piston 1
204 248769 KIT, repair, housing, intake 1
includes PTFE o-ring
206 15D115 GUIDE, ball 1
207 193395 SEAT, carbide 1
208 107167 BALL, sst 1
209 118598 CLAMP 2
210 248162 SPRING, intake ball 1
211 248304 SPRING, intake ball, plunger 1
216 248529 KIT, repair, seal, throat 1
217* 248232 VALVE, piston 1
220* 101822 BALL, bearing 1
222* 15D116 SEAL, piston 1
228 107098 O-RING 1
229* 501095 SPRING, ball check 1
230 15D740 PLUG, disc, rupture 1
231 107563 O-RING 2
* These parts are also included in Repair Kit 248530,
which may be purchased separately.

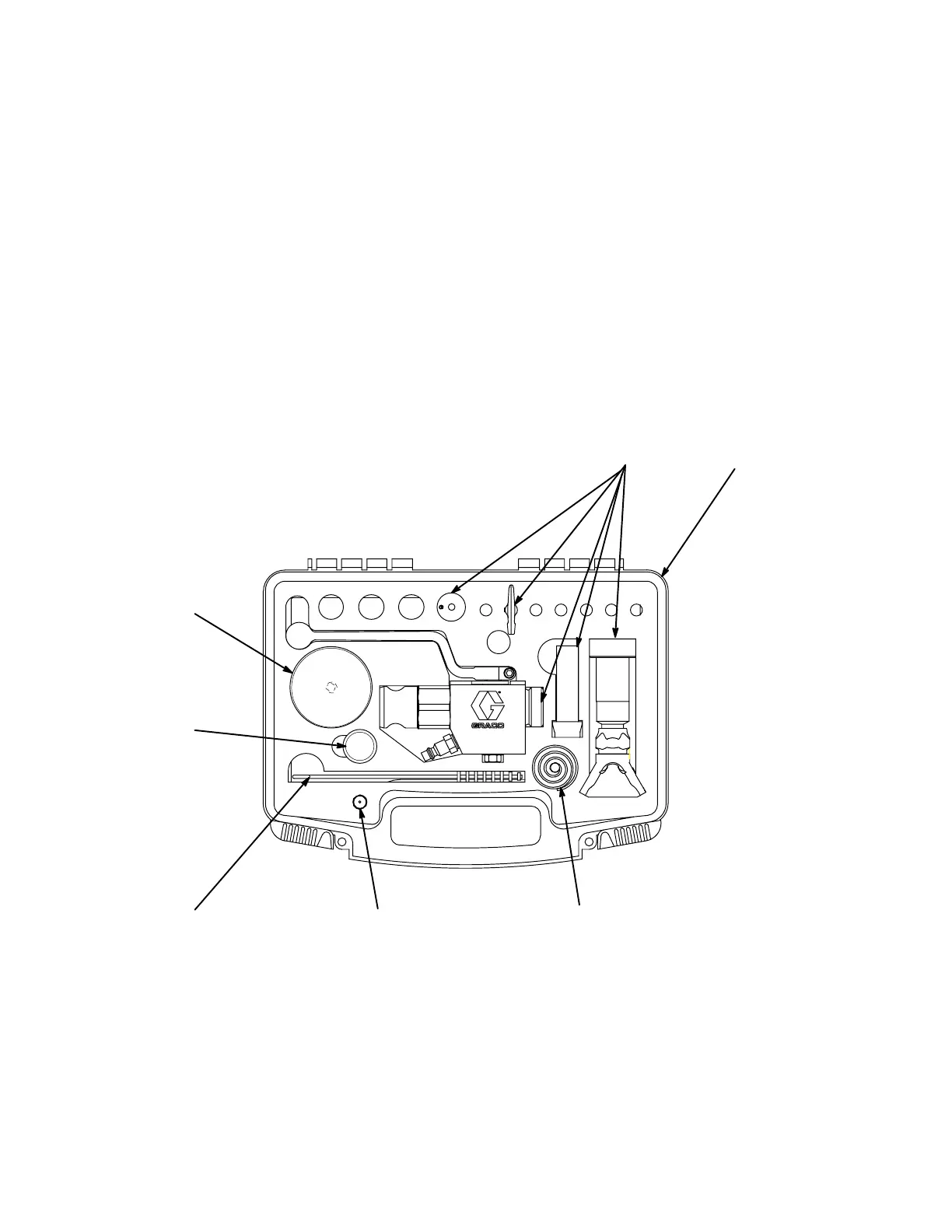

248405 Applicator Tool Box
301
94
95
304
305 306 211
TI4817a
307
Ref
No. Part No. Description Qty.
301 Included with Applicator 248164 1
See Manual 309978 for parts
94 119293 JAR, 6 oz 1
95 119316 LID, 6 oz 1
304 248515 BALL, sponge, 30 mm 1
305 M70613 BRUSH, cleaning 1
306 248395 TOOL, cleaning, applicator 1
307 248326 TOOL BOX, texture 1
