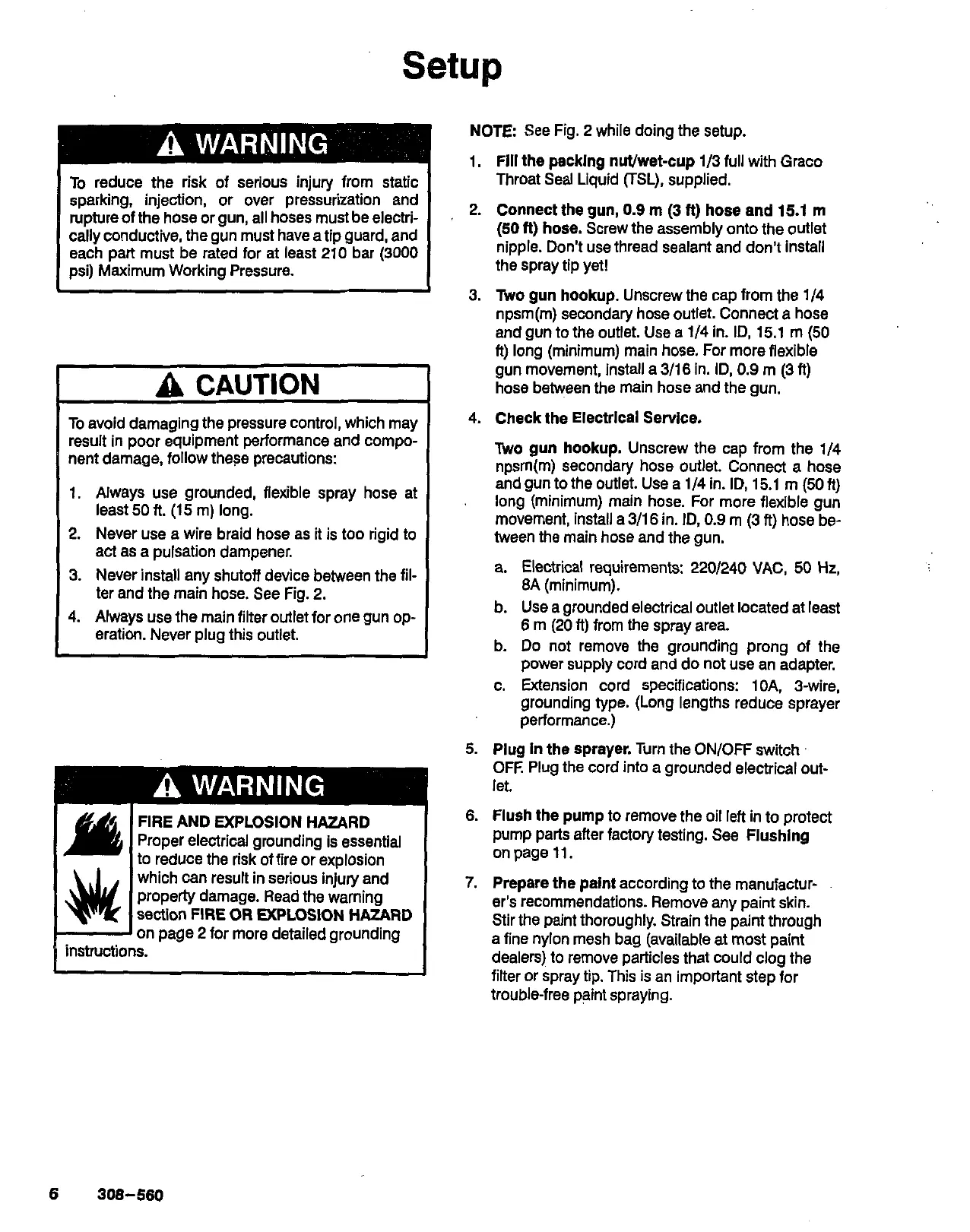

Setup
To reduce the risk of serious injury from static
sparking, injection, or over pressurization and
rupture of the hose or gun, all hoses must be electri-
cally conductive, the gun must have a tip guard, and
each part must be rated for at least
210
bar
(3000
psi) Maximum Working Pressure.
A
CAUTION
To avoid damaging the pressure control, which may
nent damage, follow these precautions:
result in poor equipment performance and compo-
1.
Always use grounded, flexible spray hose at
2.
Never use a wire braid hose as
it
is
too rigid to
3.
Never install any shutoff device between the fil-
4.
Always use the main filter outlet for one gun op-
least
50
ft.
(15
m) long.
act as a pulsation dampener.
ter and the main hose. See Fig.
2.
eration. Never plug this outlet.
FIRE
AND
EXPLOSION
HAZARD
to reduce the risk of fire or explosion
Proper electrical grounding is essential
which can result in serious injury and
property damage. Read the warning
section
FIRE
OR
EXPLOSION
HAZARD
on page
2
for more detailed grounding
instructions.
NOTE See Fig.
2
while doing the setup.
1.
Flll
the packlng nut/wet-cup
1/3
full with Graco
Throat Seal Liquid
(TSL),
supplied.
2.
Connect the gun,
0.9
m
(3
fl)
hose and
15.1
m
(50
fl)
hose. Screw the assembly onto the outlet
the spray tip yet!
nipple. Don't use thread sealant and don't install
3.
'Iko
gun hookup. Unscrew the cap from the
1/4
and gun to the outlet. Use a
1/4
in.
ID,
15.1
m
(50
npsm(m) secondary hose outlet. Connect a hose
ft) long (minimum) main hose. For more flexible
gun movement, install a
3/16
in. ID,
0.9
m
(3
ft)
hose between the main hose and the gun.
4.
Check the Electrlcal Service.
'Iko
gun hookup. Unscrew the cap from the
1/4
npsm(m) secondary hose outlet. Connect a hose
long (minimum) main hose. For more flexible gun
and gun to the outlet. Use a
1/4
in. ID,
15.1
m
(50
ft)
movement, install a
3/16
in.
ID,
0.9
m
(3
ft) hose be-
tween the main hose and the gun.
a. Electrical requirements:
220/240
VAC,
50
Hz,
8A
(minimum).
b. Use a grounded electrical outlet located at least
6
m
(20
ft)
from the spray area.
b.
Do
not remove the grounding prong of the
power supply cord and do not use an adapter.
c. Extension cord specifications:
lOA,
%wire,
grounding type. (Long lengths reduce sprayer
performance.)
5.
Plug
In
the sprayer. Turn the ON/OFF switch
let.
OFF. Plug the cord into a grounded electrical out-
6.
Flush the pump to remove the oil
left
in to protect
pump parts after factory testing. See Flushlng
on page
11.
7. Prepare the paint according to the manufactur-
er's recommendations. Remove any paint skin.
Stir the paint thoroughly. Strain the paint through
a fine nylon mesh bag (available at most paint
dealers) to remove particles that could clog the
trouble-free paint spraying.
filter or spray tip.
This
is
an important step for
6
308-560
