Component Identification
26 312359R
User Interface Display
For details regarding the user interface display see User Interface Display, page 75.
Main Display Screen Components
The system ratio mode shows if the mix ratio target is by volume or weight . If the weight is crossed out,
the system must be calibrated before running. Follow Pump and Metering Test, page 51.

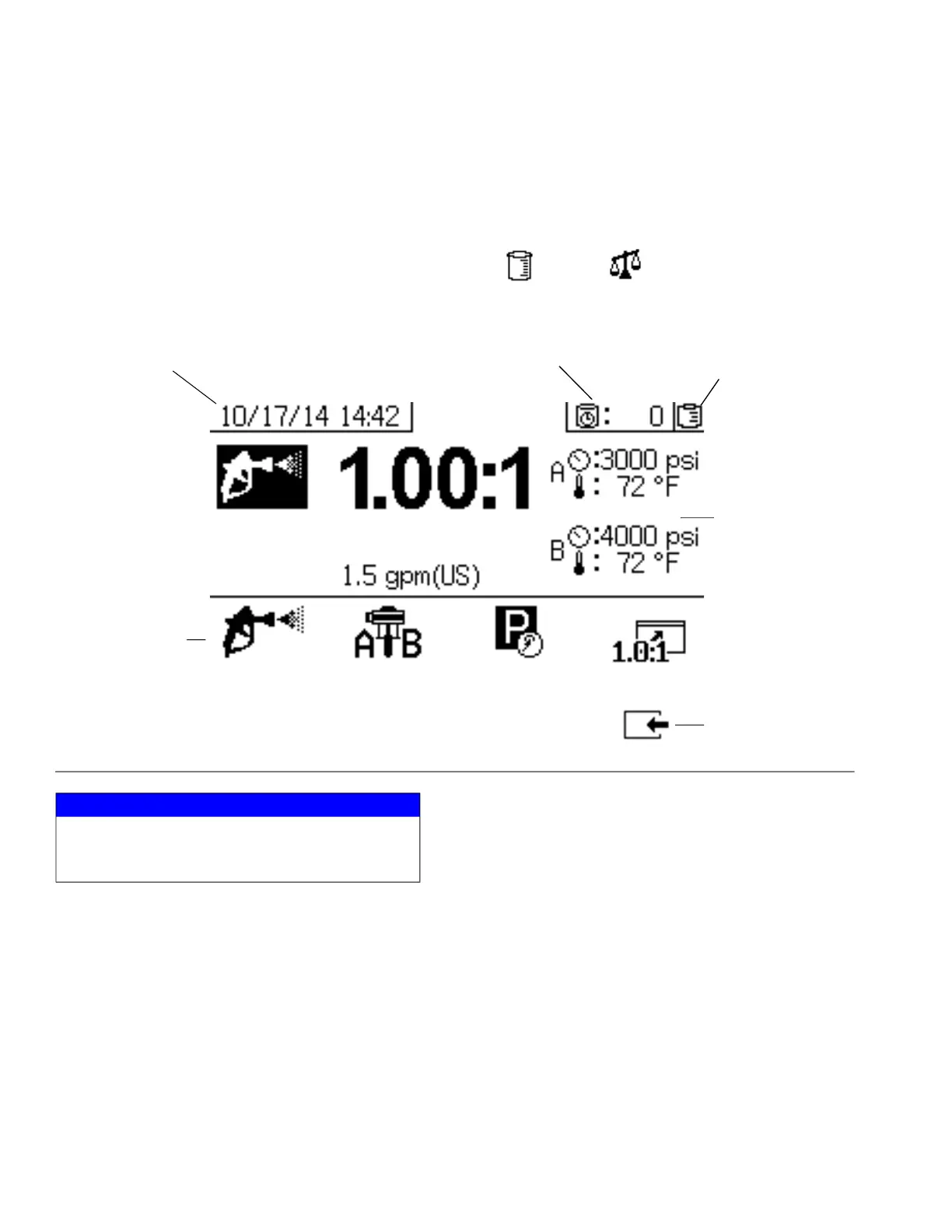

FIG. 6: Main Display Screen Components (shown with all display features enabled)
Current Date and Time
Go back one screen
Navigational Bar
Function Display
Remaining Potlife Time System Ratio Mode
(Volume/Weight)
NOTICE
To prevent damage to soft key buttons, do not press
the buttons with sharp objects such as pens, plastic
cards, or fingernails.
To Next Page
