Appendix A
312359R 77

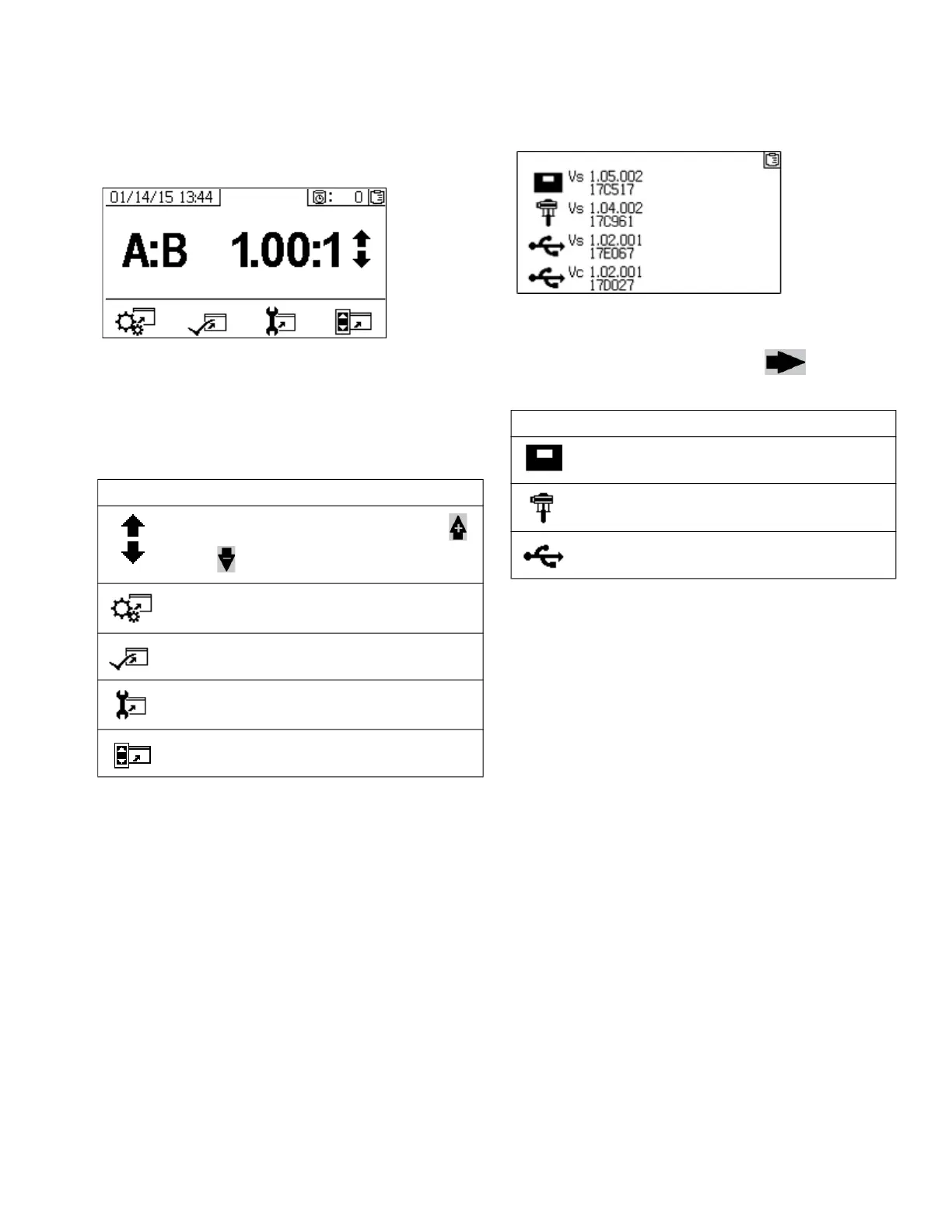

Home Setup Screens (Key Switch On)
Home
Home is the first screen that displays in Setup mode. It
shows the current metering pump ratio and enables
users to change the mix ratio and access the following
screens: system setup, enable/disable functions,
maintenance setup, and limits. Refer to the following
table for more details.
.Software Versions
This screen displays the versions and part number of
the system components. Refer to the following table for
details. To access this screen, press from the
Home Setup screen.
Icon Function
Increase or decrease mix ratio. Press
and to change the mix ratio.
Navigate to jump to system setup screens.
Navigate to enable/disable options
screens.
Navigate to maintenance setup screens.
Navigate to pressure and temperature
limits setup screens.
Icon Function
Display module version (Vs) and part
number
Advanced fluid control module version (Vs)
and part number
USB version (Vs) and part number
USB Configuration (Vc) and part number
To Next Page
